Overview

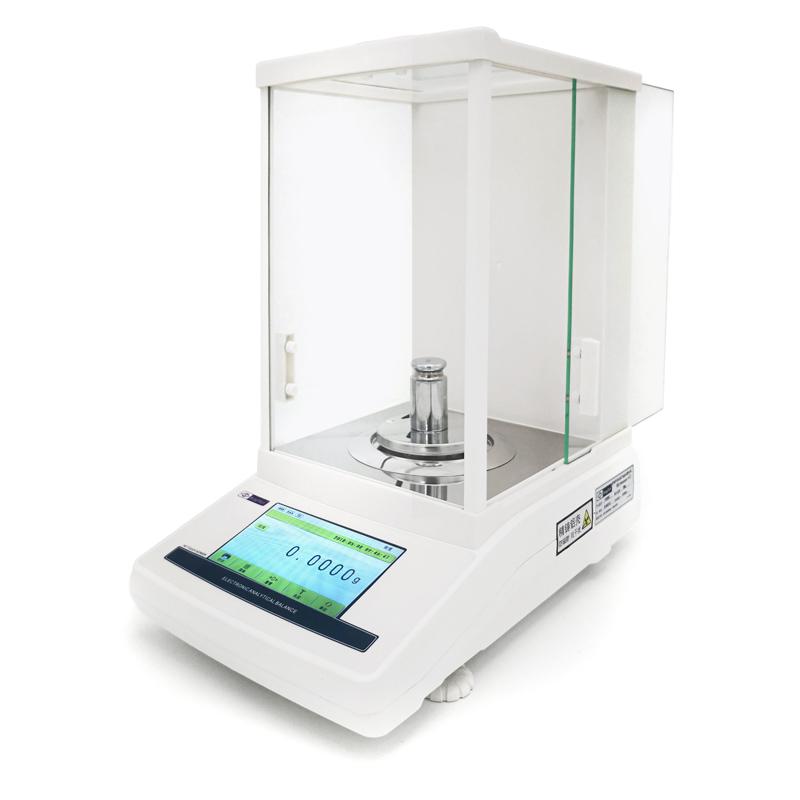

XINGYUN FA1004T Analytical Electronic Balance is a High Accuracy weighing device with a new generation of electromagnetic force equilibrating Sensor to provide fast and stable weighing performance. Equipped with a 5-inch color Touchscreen and a fully automatic time-triggered internal Adjustment, it is easy to operate and suitable for precision measurement in laboratories, industries and other fields.
Features
1.5 inch color Touchscreen, clear and intuitive display, man-machine dialogue interface, easy to operate
2. Automatic time trigger internal calibrating, optional Auto Internal Cal time, support one-click calibrating
3. New generation electromagnetic force equilibrating Sensor, weighing fast and stable
4. Specially made and cast aluminum shell to comprehensively enhance anti-static and anti-interference capabilities
5. Three-door Glass Draft Shield, large operating space, visual transparency, easy operation
6. Added density and weight percentage functions
Principle
The analysis of Electronic Balance uses electromagnetic force equilibrating Sensor technology to achieve accurate weighing through the principle of equilibrating the electromagnetic force with the gravity of the measured object. When the object is placed on the pan, the Sensor generates the corresponding electromagnetic force to equilibrate the gravity, and the system automatically calculates and displays the weight value.
Applications
Laboratory, industry, scientific research, education, pharmacy, chemical industry
Steps
1. Place the Balance on the water platform surface and adjust the horizontal foot to center the horizontal bubble
2. Connect the power socket and turn on the power supply.
3. Parameter setting and function selection through 5-inch color Touchscreen
4. Place the object to be measured on the pan for weighing
5. Automatic calibration function for regular calibration
6. Connect external devices (such as optional printers) through RS232 interface for data output
Notice
• Make sure the Balance is placed on a level and stable countertop before use
• Ambient Temperature should be kept within 5-35 ℃
• Avoid overloading to prevent damage to the Sensor
Automatic calibration to ensure measurement accuracy
Keep Draft Shield clean to avoid affecting measurement accuracy
• Clean the pan and Draft Shield immediately after use
