Overview

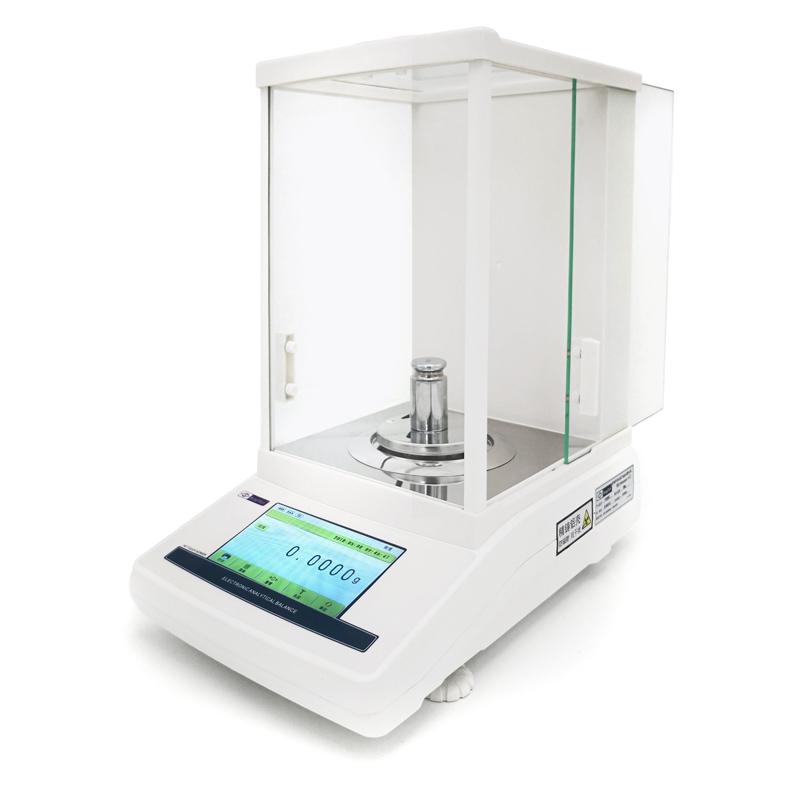

FA2004T Analysis Electronic Balance is XINGYUN brand High Accuracy weighing equipment, using a new generation of electromagnetic force equilibrating Sensor, with full Auto Internal Cal function, equipped with 5-inch color Touchscreen and large Glass Draft Shield, suitable for precision weighing scenes such as laboratories.
Features

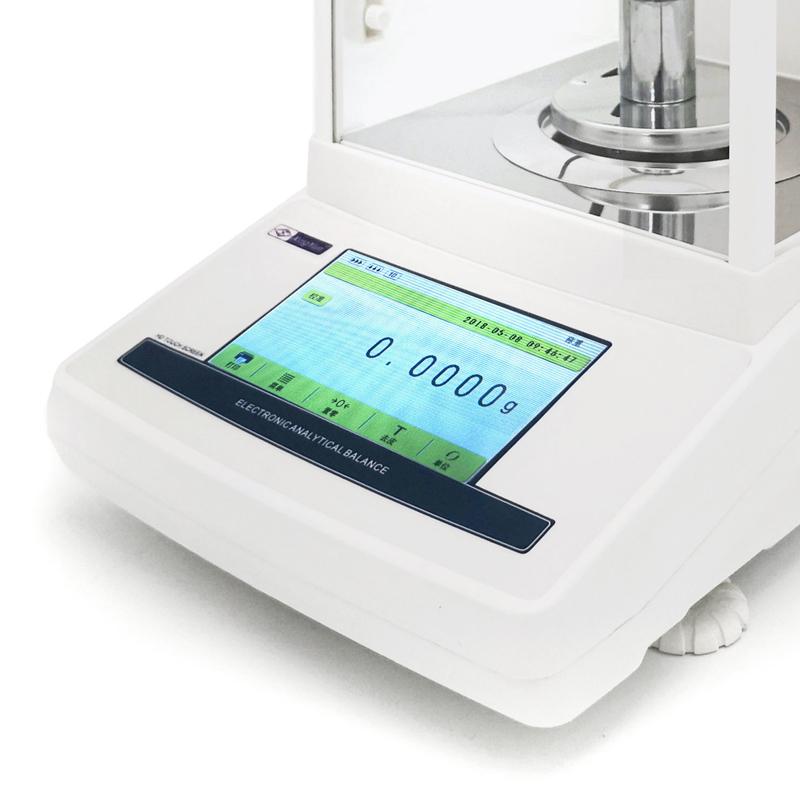

1.5-Inch Color Touchscreen, clear and intuitive display, easy to operate
2. Fully automatic time trigger internal calibrating, support one-click calibrating
3. New generation electromagnetic force equilibrating Sensor, weighing fast and stable
4. Special fine cast aluminum shell, strong anti-static and anti-interference ability
5. Three-door Glass Draft Shield, large operation space, visual transparency
6. Added density and weight percentage functions
7. Support counting, down-hanging weighing (optional) and RS232 interface
Principle
Electromagnetic force equilibrating Sensor technology enables accurate measurement by equilibrating the electromagnetic force with the sample gravity. Automatic calibration system is built in, which can be internally calibrated according to preset time or manually triggered to ensure weighing accuracy.
Applications
Laboratories, scientific research institutions, pharmaceuticals, chemicals, education, Quality control
Steps
1. Place the Balance on the horizontal countertop and adjust the horizontal foot to center the horizontal bubble
2. Turn on the power supply and turn it on to warm up.
3. Automatic or Manual calibration as required
4. Place the sample on the pan for weighing
5. Select desired functions (such as counting, density measurement, etc.) via Touchscreen
6. Read and record data, output data through RS232 interface
Notice
• Make sure Balance is level before use
• Ambient Temperature should be kept within 5-35 ℃
• Avoid overloading to prevent damage to the Sensor
• Regularly calibrated to ensure Measurement accuracy
• Keep the pan clean to avoid contamination affecting the measurement results
• Handle with care during mobile days to avoid violent vibrations
