Overview

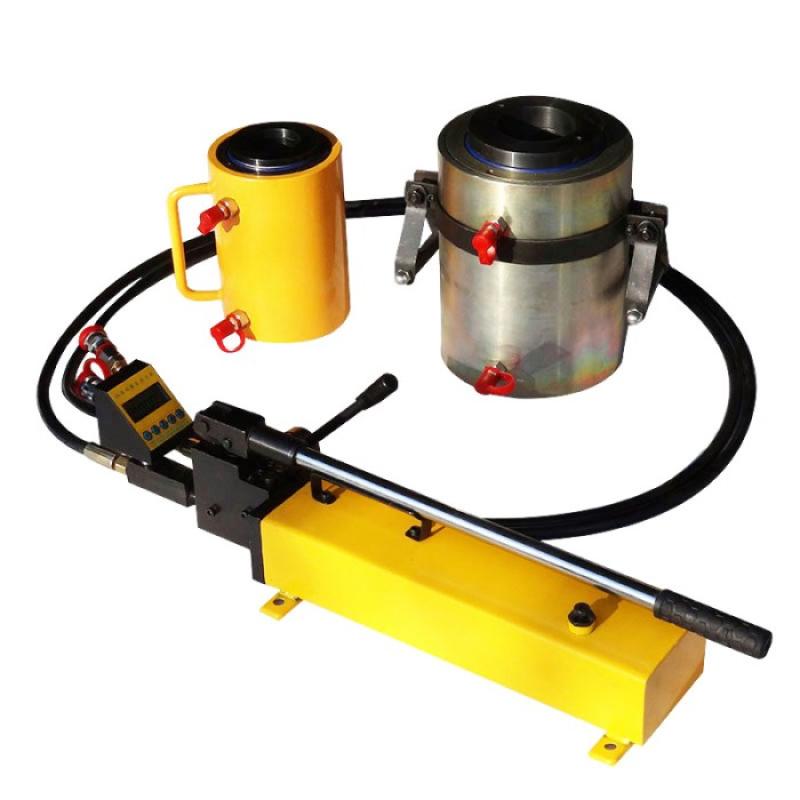

XH-100T bolt tension meter (drawing instrument) is suitable for the detection of the anchoring force of anchors, anchor cables, steel bars, anchors and other anchors, and is one of the instruments required for mass inspection of bolt construction support projects. The tension meter is composed of manual pump, hydraulic cylinder, digital pressure gauge and high voltage hose. The pump body is made of stainless steel, with long service life, compact structure, convenient carrying, small size and light weight.
Features
1. The pump body is made of stainless steel and has a long service life
2. The hollow cylinder has a handle and can be quickly connected to the hydraulic pump through a quick connector
3. The digital pressure gauge readings are intuitive and can directly read the bolt tension (KN) value
4. Compact structure, easy to carry, small size and light weight
5. Hand pump can also be used as a power source for general small Flow rate high voltage oil
Principle
The Working Principle of the bolt tension gauge is: when the center hole of the jack covers the rod to be tested, select a suitable fixture to clamp the part of the rod to be tested that is exposed to the center hole; under the action of the hydraulic force of the pressure pump, the oil pressure is transmitted to the jack cylinder through YouTube, and the piston rod moves outward against the special collet; the pressure acts directly on the anchor shell, and then is transmitted to the clip. After the clip is stressed, the measured rod is clamped, and finally the rod is subjected to an outward pulling force; at this time, the pressure gauge on the pressure pump shows the corresponding force (kN) value, which reflects the size of the pulling force on the measured rod.
Notice
• After the tension meter completes the test, it is necessary to manually remove the anchor with less force shaking and vibration, so that the pulling jack can be easily removed
