Overview

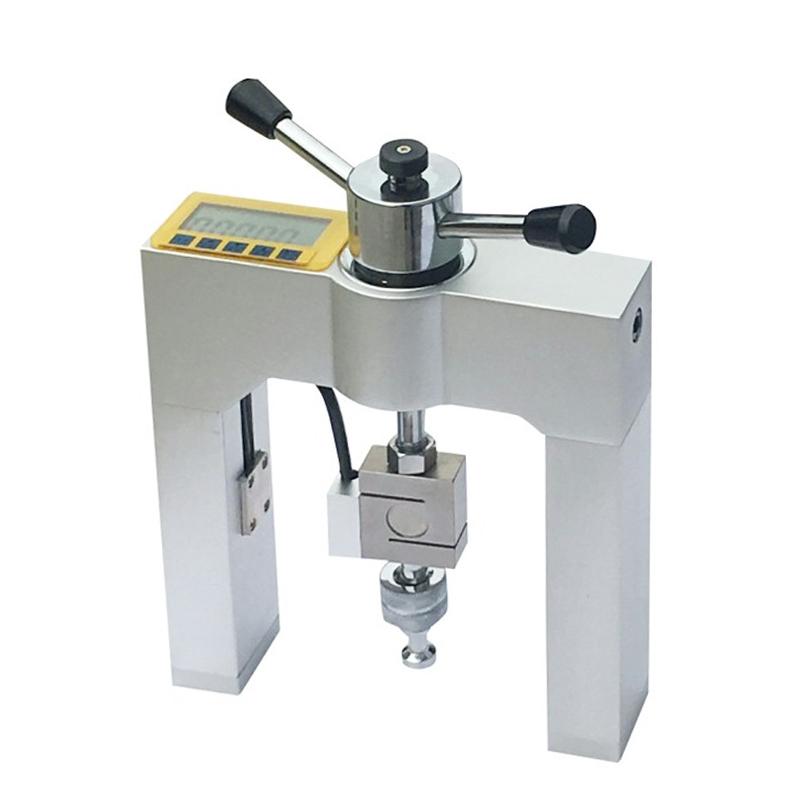

XHTC-10 High Accuracy Bond strength tester is a new type of testing instrument specially developed for testing the positive tensile bond strength between mortar, putty, coatings and concrete in civil construction engineering. The instrument adopts mechatronics design, and the whole set of instruments is a whole, including handles, Sensors, lead screws, reaction supports and other mechanical parts to form a "door" structure. It has the characteristics of light weight, labor-saving handle operation and convenient use.
Features
1. Function selection: suitable for testing the bond strength of various materials.
2. Selection of measurement: Select different standard blocks to automatically calculate the intensity value.
3. Automatic clearing: After power on, the deviation value is automatically eliminated to make the output display zero value.
4. Peak hold: In the peak hold state, the maximum tensile force value is always displayed.
5. Data storage: can store the detection value, and can be called up and cleared at any time.
6. Automatic shutdown: It has a delayed power-off function to prolong the battery life.
7. Linear correction: 5 correction points can be set to correct the data linearity and improve the detection accuracy.
8. Strength value measurement: MPa value can be directly displayed.
Principle
The tester can immediately obtain the test results based on the bond strength and the form of failure during stretching. The instrument embeds a measurement display circuit inside, allowing direct observation of the data.
Applications
Civil Construction Engineering
Steps
1. Select function: Select the corresponding function according to the detection requirements.
2. Select standard blocks: Select different standard blocks according to the material to automatically calculate the strength value.
3. Power-on operation: The instrument is automatically cleared after power-on.
4. Perform a tensile test: The operating handle is stretched, and the peak value of the instrument is maintained to display the maximum tensile force value.
5. Data storage: The detection value can be stored and retrieved or cleared at any time.
Notice
• Make sure the instrument is powered on and automatically cleared before use.
• Select the correct standard block to ensure measurement accuracy.
• Pay attention to the battery level, the instrument has an automatic shutdown function to extend the Battery life.
• Periodic linear correction to improve detection accuracy.
After storing the data, retrieve or clear it in time to avoid data confusion.
