Overview

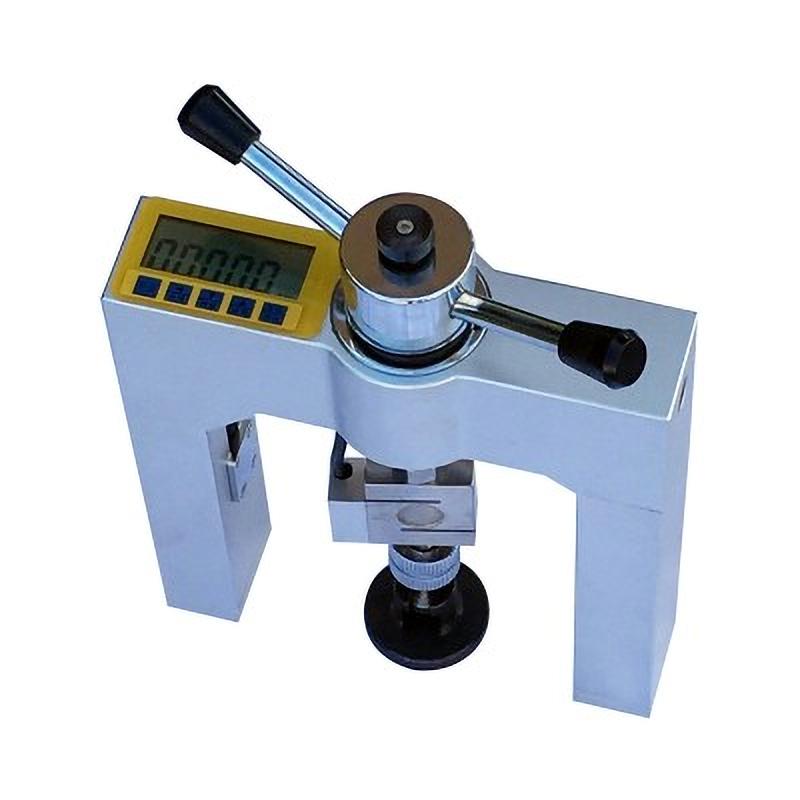

XHTJ-10 type carbon fiber Bond strength tester is a new type of testing instrument developed for detecting the positive tensile bonding strength between carbon fiber sheet and concrete in civil building structures. The instrument adopts mechatronics design, and the full set of instruments is a whole. It has the characteristics of light weight, labor-saving handle operation and convenient use. It is a testing equipment for the design, construction and acceptance of reinforced and repaired concrete structures by sticking carbon fiber sheets.
Features
1. Suitable for testing the bond strength of carbon fiber cloth
2. Selection of measurement: standard block detection
3. Automatic clearing: automatically eliminate the deviation value after power on and make the output display zero value
4. Peak hold: In peak hold state, the maximum tensile force value is always displayed
5. Data storage: can store the detection value, and can be called up and cleared at any time
6. Automatic shutdown: with delayed power failure function, prolong battery life
7. Linear correction: 5 correction points can be set to correct the data linearity and improve the detection accuracy
8. Strength value measurement: MPa value can be directly displayed
Principle
The detector adopts mechatronics design, including handle, Sensor, screw, reaction support and other mechanical parts to form a "door" structure. At the same time, the measurement display circuit is embedded in the instrument, which can directly observe the data. According to the bond strength and the damage form during stretching, the test results can be obtained immediately.
Applications
Civil building structure, carbon fiber sheet reinforcement repair concrete structure
Standards
Standard for design, construction and acceptance of reinforced and repaired concrete structures with carbon fiber sheets
Steps
1. Automatically clear after power on
2. Conduct standard block inspection
3. The maximum tensile force value is displayed in the peak holding state
4. Data storage and recall
5. Battery life extended by automatic shutdown
Notice
• Make sure the battery is fully charged before use
• Pay attention to keep the instrument stable during testing
• Periodic linear correction to ensure detection accuracy
• Clean the instrument in time after use
• Avoid Strong Impact on Instruments
