Overview

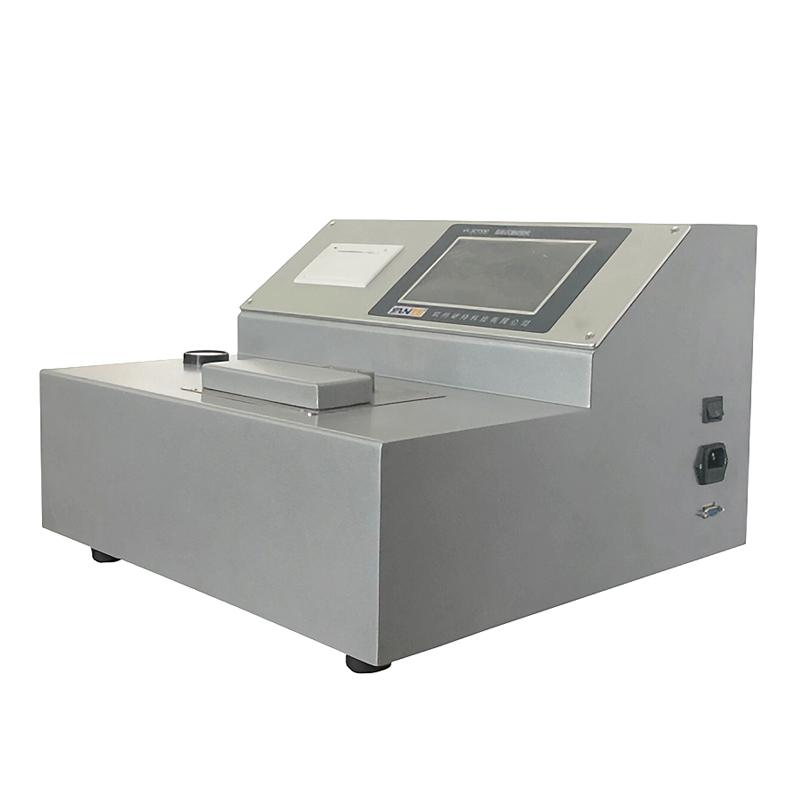

YT-SCT500 short-range Compression Tester is a new type of instrument developed according to the requirements of international standard ISO 9895 and national standard GB/T 2679.10 "Paper and Cardboard Short-range Compression Test Law", which is mainly used for the manufacture of cartons and Cardboard paper and Cardboard, and is also suitable for the paper prepared by the laboratory during the Pulp test.
Features
1. Professional design ideas, with precision parts, double cylinder pneumatic clamping samples are used to reliably ensure standard parameters
2. Adopt 24-bit precision analog-to-digital converter, 32-bit ARM processor, 7-inch color touch display screen, Chinese and English bilingual optional menu, simple and convenient operation
3. Add high-speed Flash Data storage, can store 5000 batches of data, easy for users to access historical measurement data
4. Add a note description input function when storing data (support Chinese and English input), which is convenient for users to comment and store batches
5. Historical data can be viewed by number or date, making it convenient for users to quickly find data
6. Driven by stepper motor, the speed is accurate and stable, and it can return quickly to improve the test efficiency
7. Longitudinal and horizontal tests can be carried out in the same batch, and vertical and horizontal averages can be printed
8. Add the function of sudden power failure data saving, data retention before power failure after startup and can continue testing
9. Display real-time force value-displacement Linear dispersion during testing, which is convenient for users to observe the test process
10. Add fast Basis Weight selection and settings to facilitate users to quickly set Basis Weight
Principle
The testing machine adopts dual-cylinder pneumatic clamping specimen, realizes precise and stable pressurization speed driven by stepper motor, cooperates with 24-bit precision analog-to-digital converter and 32-bit ARM processor for data collection and processing, and displays force-displacement Linear dispersion in real time. Complete the short-distance compression test of paper and Cardboard.
Applications
Carton Manufacturing, Cardboard Manufacturing, Pulp Testing
Standards
ISO 9895、GB/T 2679·10
Steps
1. Prepare the specimen and place it in the clamping device
2. Select Test Parameters and Basis Weight Settings via Touchscreen
3. Start the test, and the equipment automatically completes the clamping and compression process
4. Observe the force-displacement Linear dispersion displayed in real time
5. View and store data after the test is completed
6. Optionally print test results or export data via USB/RS232 interface
Notice
• Operating Ambient Temperature should be kept within the range of 20 ℃ +/- 10 ℃
• The air source pressure needs to reach more than 0.4Mpa
The power supply must be reliably grounded
• The sample clamping force should be controlled within the range of 2300 +/- 500N
• Regularly check equipment accuracy to ensure Indication Error does not exceed +/- 1%
• Pay attention to adding remarks in time when storing data
• Pay attention to check the data integrity when restarting after a sudden power failure
