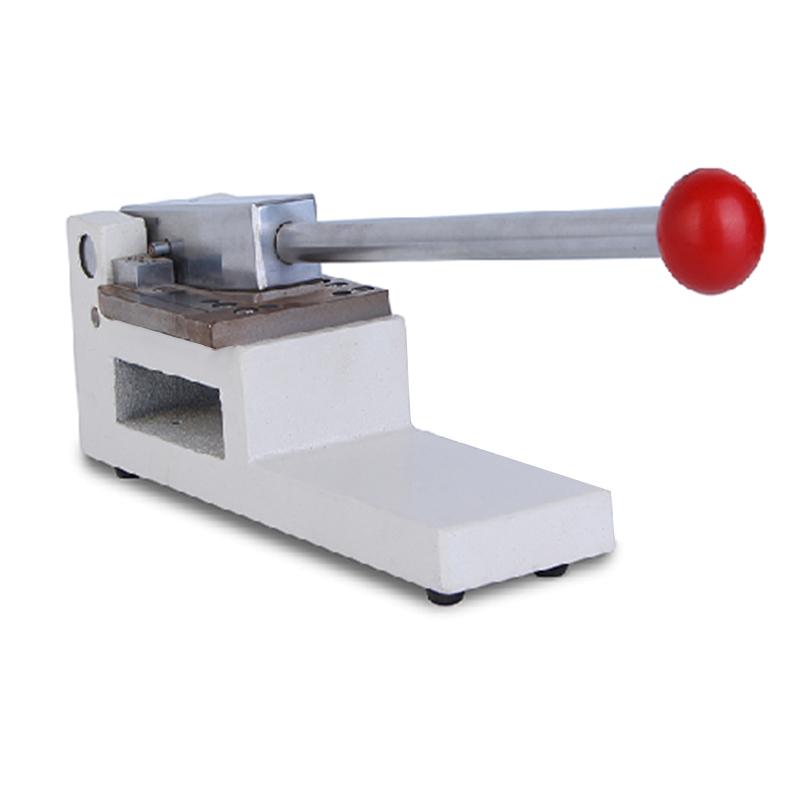

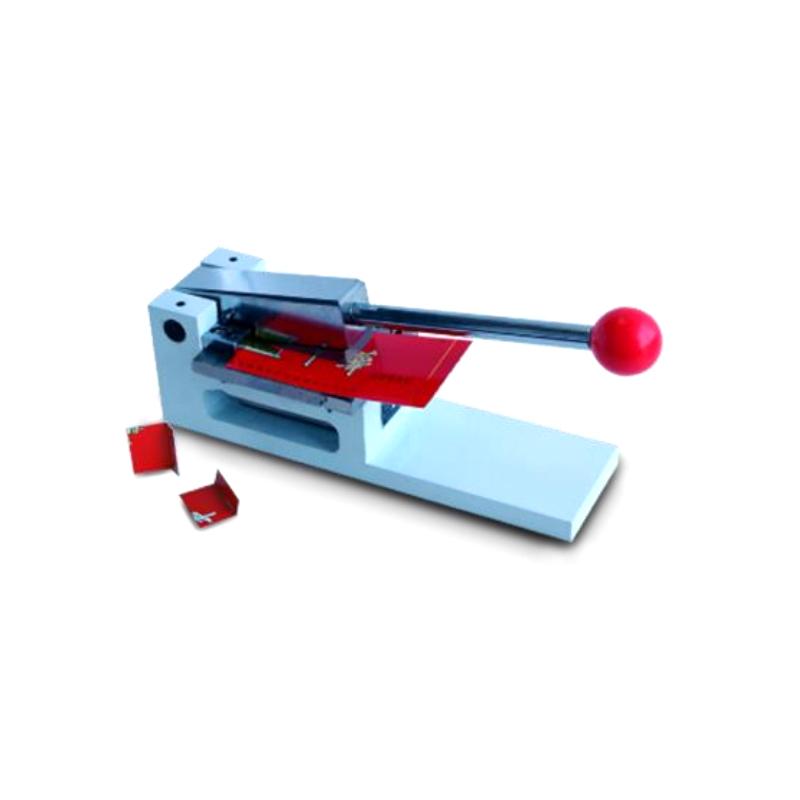

YANTE YT-TD23 stiffness Sampler for stiffness crease detection 70 × 38 and 38 × 36 specimens

Name: YANTE YT-TD23 stiffness Sampler for stiffness crease detection 70 × 38 and 38 × 36 specimens
Brand: YanTe
SKU: NB029859
Price: 613.0 USD
Availability: InStock

$ 613.00Ex works

It can cut 70 × 38 and 38 × 36 samples, and the sampling thickness range is less than or equal to 1mm. It is suitable for special sampling equipment for stiffness and crease detection, and is used with a variety of stiffness Meters.

Model

YT-TD23

Get Quote

Category : Sample Cutter

Brand : YanTe

SKU : NB029859

Service :The delivery and service By NBCLab.Com

Overview

YT-TD23 stiffness Sampler is a special sampling device produced by YANTE brand, mainly used for stiffness and crease detection. It can cut 70 × 38mm and 38 × 36mm samples, and is equipped with crease stiffness tester and microcomputer bending stiffness tester. This equipment is suitable for papermaking, Encasement, scientific research and Quality control industries, and is a reliable auxiliary test equipment.

Features

1. Support dual-size sampling: 70 × 38mm and 38 × 36mm samples can be cut 2. Strong matching: specially designed for crease stiffness tester and microcomputer bending stiffness tester 3. Wide range of applications: to meet the needs of many industries such as papermaking, Encasement, scientific research and Quality control 4. Compact structure: Dimension 350 × 100 × 130mm, weight about 7.2kg

Principle

The Sampler uses a precision mechanical structure to cut the material according to the set size specifications to ensure that the sampling accuracy meets the stiffness and crease detection requirements.

Steps

1. Place the material to be tested on the Sampler bench 2. Select 70 × 38mm or 38 × 36mm sampling specifications according to testing requirements 3. Operation Sampler for cutting 4. Remove the cut sample for subsequent inspection

Notice

• The sampling thickness must not exceed 1mm • Operating Ambient Temperature should be kept within the range of 20 ℃ +/- 10 ℃ • environment relative humidity should be less than 85% • Please confirm that the sampling size meets the testing requirements before use • Regular maintenance to ensure sampling accuracy

Stiffness sampling Size
(38±0.2)*70mm
Crease stiffness sampling Size
(38±0.3)*36mm
Sampling thickness Range
≤1mm
Dimension
350*100*130mm
weight
About 7.2kg
Operating environment
20℃±10℃
environmental conditions
Temperature 20~ 40℃, relative humidity < 85%

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
