Overview

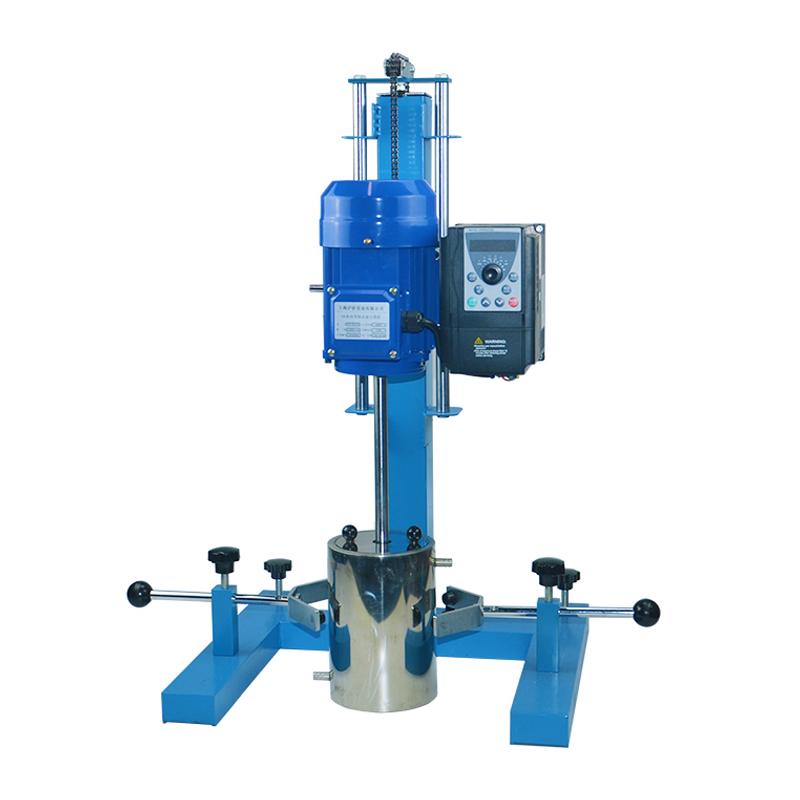

HUXI HR-400JFS laboratory high-speed grinding Disperser is a high-performance equipment that integrates dispersion function and stirring function. The two processes of dispersion and grinding are completed by one machine and one container. The equipment has high efficiency, good mixing effect, easy cleaning, simple and convenient lifting, and is widely used in the dispersion and mixing of materials in liquids such as factories, scientific research institutions, Universities & colleges and medical units.
Features
1. Selection of variable frequency motor, stable operation, low noise, long-term operation, safe and reliable design
2.The dispersion disc is made of good stainless steel with good corrosion resistance
3. The dispersion disc is connected with the hexagon screw and the dispersion shaft, which is easy and flexible to disassemble and assemble
4. Frequency conversion stepless speed regulation, brushless motor, maintenance-free, no spark, no dust, higher safety performance
5. Ordinary bracket, manual chain lift
Principle
This equipment adopts electronic constant force speed control line, digital direct display shaft Rotation speed, and equipped with dispersed impeller and sand grinding disc. It can adapt to different laboratory test needs, and can provide correct process data for large-scale production according to the relationship between the displayed shaft speed and material viscosity and chemical reaction rate. The dispersing head of this machine generates swirl/spin tangential high linear speed under the high-speed drive of the motor. Under the action of huge centrifugal force, the material produces strong hydraulic shearing and high-frequency mechanical effects, so that the fluid material can withstand thousands of shearing and high-frequency mechanical effects per minute, so as to achieve the effect of efficient mixing, dispersion and homogenization.
Applications
Factories, Research Institutions, Universities & colleges, Medical Units
Steps
1. Install dispersion disc/grinding wheel
2. Put the material into the stainless steel drum
3. Adjust the position of the dispersion head by lifting the chain
4. Set the inverter Rotation speed parameters
5. Start the equipment for decentralized ground operation
6. Turn off the equipment and clean it after completion
Notice
• Please check whether the parts of the equipment are firmly connected before use
• Please pay attention to safety during operation and avoid contact with high-speed swirling/spinning parts
• Material viscosity should not exceed the maximum processing viscosity of 20000cp
• Regularly check the dispersion disc abrasion and replace it in time
• Please cut off the power supply when cleaning to ensure safety
