Overview
Color difference meter ColorMeter Pro is a high-performance Color measurement tool that uses D/8 (integrating sphere diffuse illumination, 8 ° viewing angle) SCI lighting observation conditions for accurate measurement. Seamless connection with Android or IOS devices through Bluetooth expands the application boundary and can replace Color Chart such as printing, paint, Spinning & weaving to realize Color reading and Color Chart lookup functions.
Features
1. It is a color difference meter and a Colorimeter. It adopts Light spectrum Sensor to provide Light spectrum data and output a variety of Color data and measurement indicators.

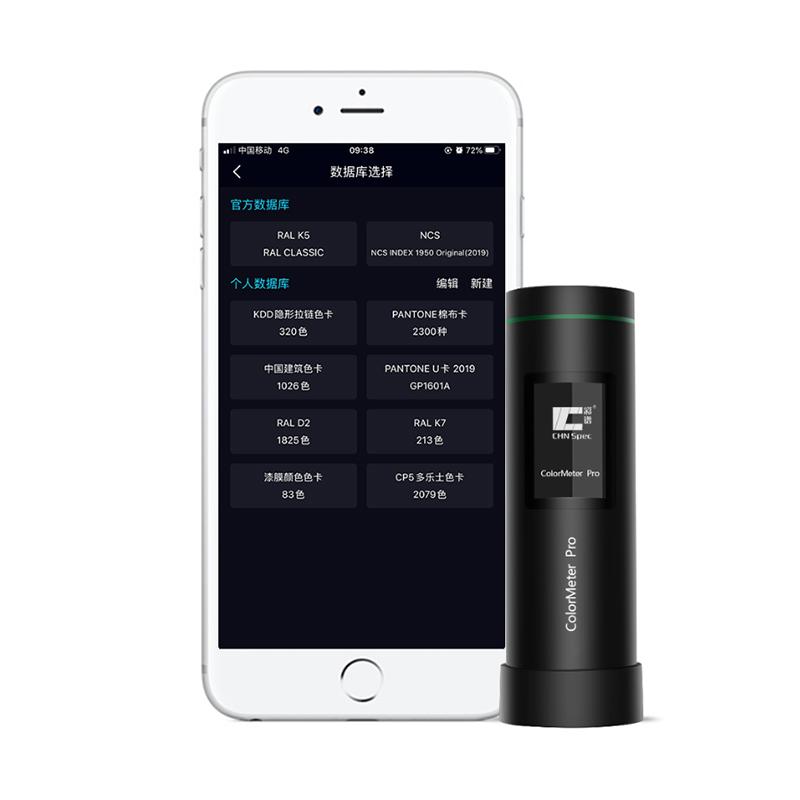

2. Carry a massive Color Chart database, connect to the mobile app via Bluetooth, create a color database, and find the closest Color in multiple sets of color cards.
3. Color perception by artificial intelligence, color search engine based on AI, accurate measurement and collection of Color.
4. Automatic calibration, Automatic calibration, APP reminder calibrate, Manual calibration and interval setting are supported.

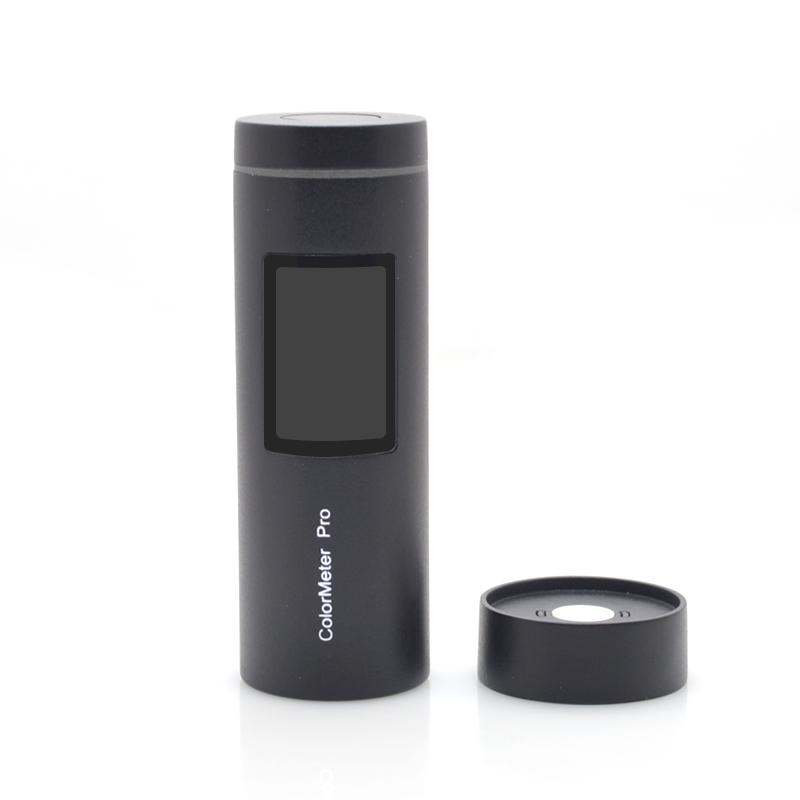

5. Stand-alone available, equipped with a 1.14-inch IPS display screen, which can store data and synchronize with apps.
6. Cloud database, providing an official Color Chart database, users can upload Color information library, and enterprises can manage shared Color Chart and recipes.
Principle
Using D/8 (integrating sphere diffuse illumination, 8 ° observation angle) SCI illumination observation conditions, using Light spectrum Sensor for Color measurement, output Light spectrum reflectance and various Color data. Connect with mobile devices through Bluetooth, combine AI technology to implement accurate Color perception and database management.
Applications
Printing, Paint, Spinning & weaving
Steps
1. Automatic calibration.
2. Pick up the instrument for Color Detection.
3. Connect to the mobile app with Bluetooth to create or find the Color Chart database.
4. Store data, sync or upload to the cloud through the app.
Notice
• Automatic calibration when the instrument is turned on to ensure accurate data.
• Pay attention to the APP calibrating reminder when working for a long time.
• When using Bluetooth connection, make sure the device is compatible.
• Data storage and uploading need to be operated through the App.
