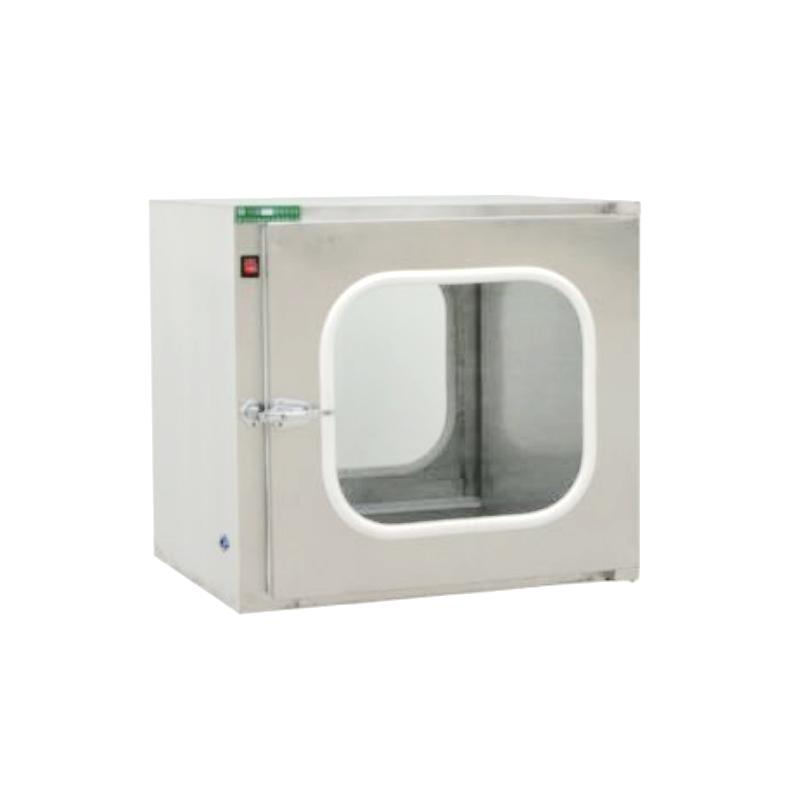

BOLEL PURIFICATION EQUIPMENT APB-600 Clean two-way transfer window, stainless steel box mechanical and electronic interlock

Name: BOLEL PURIFICATION EQUIPMENT APB-600 Clean two-way transfer window, stainless steel box mechanical and electronic interlock
Brand: BOLEL
SKU: NB030115

Please contact customer service

The working size is 600x600x600mm, and the stainless steel plate is flat and smooth. The doors on both sides are equipped with mechanical or electronic interlocking devices to prevent them from opening at the same time. Optional indoor lights and sterilization lights are available to enhance functionality.

Model

APB-600

Get Quote

Category : Laminar Flow Cabinet

Brand : BOLEL

SKU : NB030115

Service :The delivery and service By NBCLab.Com

Overview

BOLEL PURIFICATION EQUIPMENT APB-600 clean two-way transfer window is an auxiliary equipment for clean rooms. It is mainly used for the transfer of small items between clean rooms and clean rooms or between clean rooms and non-clean areas to reduce the number of door openings in clean rooms and minimize pollution. The size of the working area is 600 * 600 * 600mm, and the Dimension is 720 * 660 * 680mm.

Features

1. The countertop and box are made of stainless steel plate, which is smooth and clean. 2. The doors on both sides are equipped with mechanical interlocking or electronic locking devices, so that the doors on both sides cannot be opened simultaneously. 3. The electronic interlocking transmission window box is equipped with door opening signal indicator lights on both sides to know the opening of the opposite window. 4. The transfer window is equipped with a special sealing strip to ensure airtightness. 5. According to different uses, indoor lamps and sterilization lamps can be added. 6. It can be processed into a self-cleaning clean transfer window or a transfer window of various Specification models according to user requirements.

Principle

The transfer window can be opened at the same time through mechanical interlocking or electronic locking devices on both sides of the door to ensure that external air cannot enter the clean room; the sealing strip of the box body ensures air tightness, and indoor lamps and sterilization lamps can be selected to enhance the function.

Applications

Clean room, non-clean area

Steps

1. Place the item in the transfer window. 2. Close one door and ensure that the other door cannot be opened through an interlocking device. 3. Remove the item from the other side and complete the transfer.

Notice

• Ensure that the doors on both sides of the transfer window cannot be opened at the same time to maintain a clean environment. • Regularly check the sealing strip and interlocking device to ensure normal operation. • Choose indoor lamps or sterilization lamps according to actual needs.

working Size
600x600x600mm
Dimension
720x660x680mm
