Overview

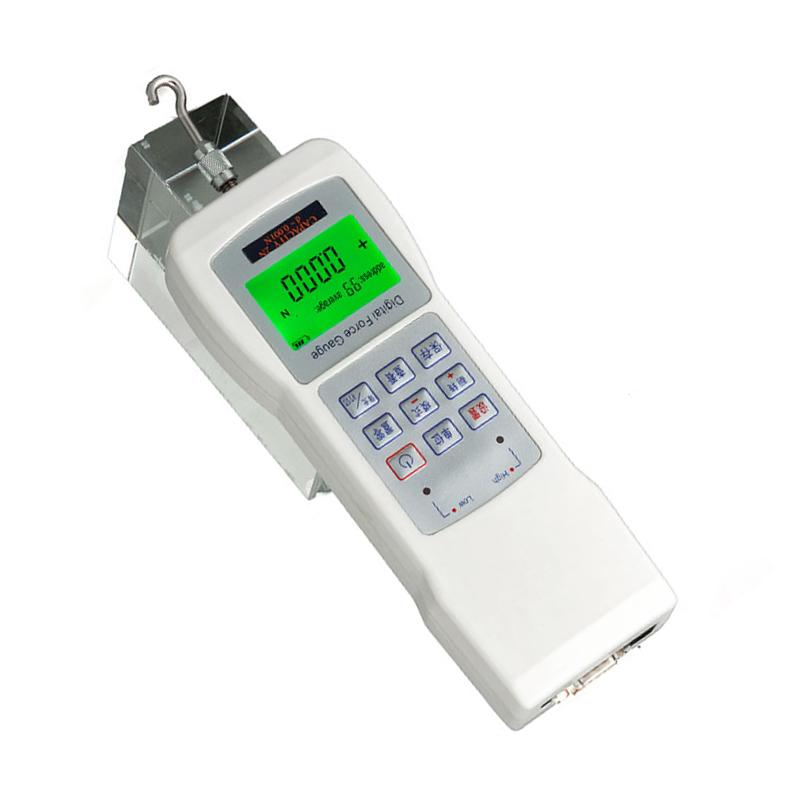

The HG-300 Portable Force Gauge is a general-purpose Portable push-pull load test instrument produced by HBO. It belongs to the HG series digital display Force Gauge, and the maximum measurement load value is 300N. The product has the function of Data storage, which can store 99 sets of test data. Measurement accuracy is high and Stability is good. The sampling speed reaches 120Hz, and various units such as N, kgf, and lbf are automatically exchanged without manual conversion. In addition, this series of Force Gauge can be connected to a PC to transmit and store test data for management.
Features
1. High Accuracy High resolution, High Stability, sampling speed up to 120Hz
2. Special Instrument Toolbox with EVA Shockproof Encasement, Easy to Transport, Save and Carry
3. Segment LCD display, green backlight screen
4. Six units N, KN, Kgf, gf, lbf, tf are freely interchangeable
5. Test direction display (tension +, thrust -)
6. Three test modes: real-time force tracking mode, peak holding mode, and first peak mode
7. Can set the upper and lower limit comparison value to judge whether the data is qualified or not, with sound alarm and level signal output
8. Store 99 sets of test data and automatically calculate the average value of the stored data, MAX Maximum and MIN Minimum.
9. Peak hold time can be set (can be set from 0 to 99 seconds)
10. Gravity acceleration value can be set
11. Automatic shutdown without operation can be set (time can be set freely from 0 to 99 minutes)
12. Limit protection: with range sound alarm and mechanical two-level limit protection
13. Smart Charging, Safe Charging, Extend Battery life
14. With the company's electric testing device, it can realize various new practical functions such as stop or reset when the tested product is damaged, stop or reset when it reaches the preset force value, fatigue test, etc
15. Host computer software: Chinese WINDOWS interface
16. The test results have a variety of coordinate Linear dispersion display: real-time force value - time, peak force value - number of times, first peak - number of times
17. Qualification judgment: In addition to automatically obtaining the test results, the qualified judgment and batch inspection pass rate can be made according to the qualified range of the preset Standard value
18. Automatic storage: Test data and Linear dispersion are automatically stored in the computer, and the number of storage is unlimited
19. Test data: The data obtained from the test can be queried and exported in excel format
20. Test report: Test report can be prepared in the format required by the user, form a report and print it
Principle
The HG-300 Portable Force Gauge adopts built-in or external Sensor structure, collects force value signals at a conversion speed of 15Hz to 480Hz through the ADC converter, and displays them on the segment LCD after processing by the processor. The instrument supports a variety of test modes, including real-time force tracking, peak holding and first peak mode, and can pass the judgment according to the preset upper and lower limits. Data storage and transmission functions are also provided.
Applications
Push-pull load test, insertion force test, failure test of various products
Steps
1. Connect the power supply or use the built-in lithium battery for power supply.
2. Select the test mode and unit as required
3. Set the upper and lower limit comparison value, peak holding time and other parameters
4. Perform push-pull test operation
5. View test results and Data storage
6. Transfer and manage test data via PC connection
Notice
• Operating temperature range is 0~ 40 ℃, storage temperature is -20~ 70 ℃
• The relative humidity should be kept within the range of 15% to 80% RH
• Operating Environment should be free of vibration and corrosion
• Charge with a special charger, input AC 220V/50HZ, output DC 5V/1A
• Note that the installation size of the instrument is 40mm * 80mm, and the screw hole is 4-M4.
• Avoid exceeding the maximum Measured value 300N/30kg/66lb
• Regularly check the battery status to ensure normal use
