PUSHEN 20mm pull kit adhesion testing kit test strength 100~ 3000psi

Name: PUSHEN 20mm pull kit adhesion testing kit test strength 100~ 3000psi
Brand: Pushen
SKU: NB030224
Price: 77.0 USD
Availability: InStock

$ 77.00Ex works

Hydraulic pump is used to uniformly pull off the test column, the speed does not exceed 1MPa/s, the test force is directly displayed by liquid crystal, and the adhesion failure and cohesion failure can be distinguished, with an accuracy of +/- 1% F.S.

Model

20mm
PS 2658

Get Quote

Category : Pull-Off Adhesion Tester

Brand : Pushen

SKU : NB030224

Service :The delivery and service By NBCLab.Com

Overview

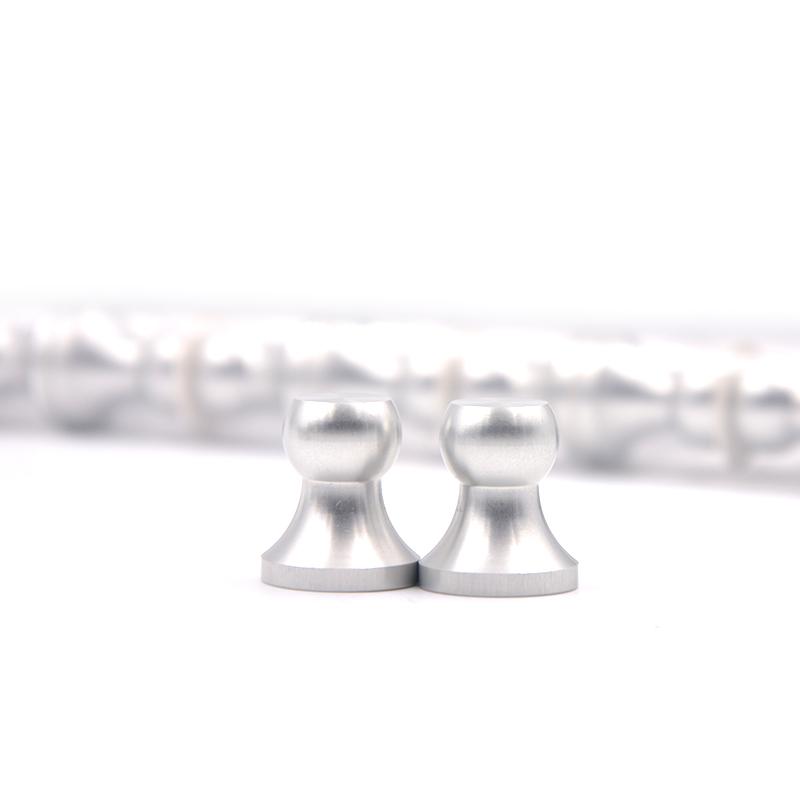

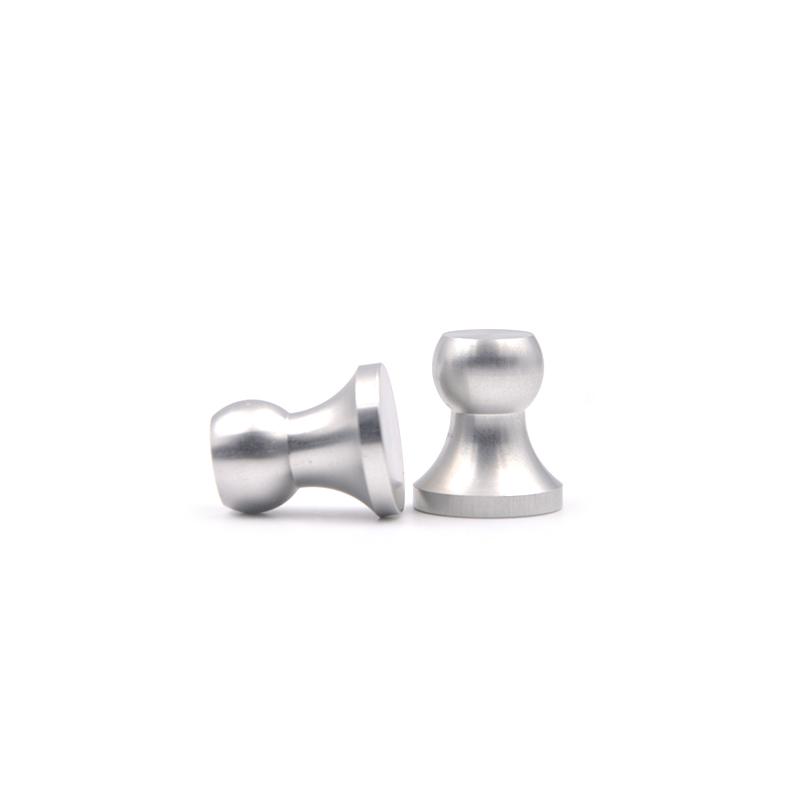

PUSHEN pull kit 20mm is a kit supporting PUSHEN pull adhesion instrument, the size is 20mm, the test strength range is 100~ 3000psi. Mainly used for adhesion testing of metallic coatings.

Features

1.The kit diameter is 20mm 2. Range 0.7~ 20Mpa/100~ 3000psi 3. The resolution reaches 0.01MPa (1psi) 4. The accuracy is +/- 1% F.S

Principle

The coating system is applied to a flat plate with a uniform surface structure at a uniform thickness. After drying/curing, the test column is directly bonded to the coating surface with a special Adhesive. After Adhesive curing, the test combination is placed on the PS2658 digital display pulling method Adhesion Tester. The tester pulls the test column from the coating at a speed of not more than 1MPa/s through a hydraulic pump. The required force is directly displayed through the instrument LCD screen to test the force required to destroy the adhesion between coatings/substrates. The test results are expressed by the tension between the damaged interfaces or the tension of self-destruction. Adhesion/cohesion failure may occur simultaneously.

Applications

metallic coating

Steps

1. Apply the coating system to a flat plate with a uniform surface structure at a uniform thickness 2. Coating system drying/curing 3. Adhesive the test column directly to the coating surface 4. Adhesive curing 5. Put the bonding test combination on the PS2658 Digital Display Pull Adhesion Tester 6. The tester pulls the test column from the coating at a speed of not more than 1MPa/s through a hydraulic pump 7. Read the test results through the instrument LCD screen

Kit Size
20mm
Range
100~3000psi(0.7~20Mpa)
resolution
1psi(0.01Mpa)
accuracy
±1%FSR
Typical application
metallic coating

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
