Overview

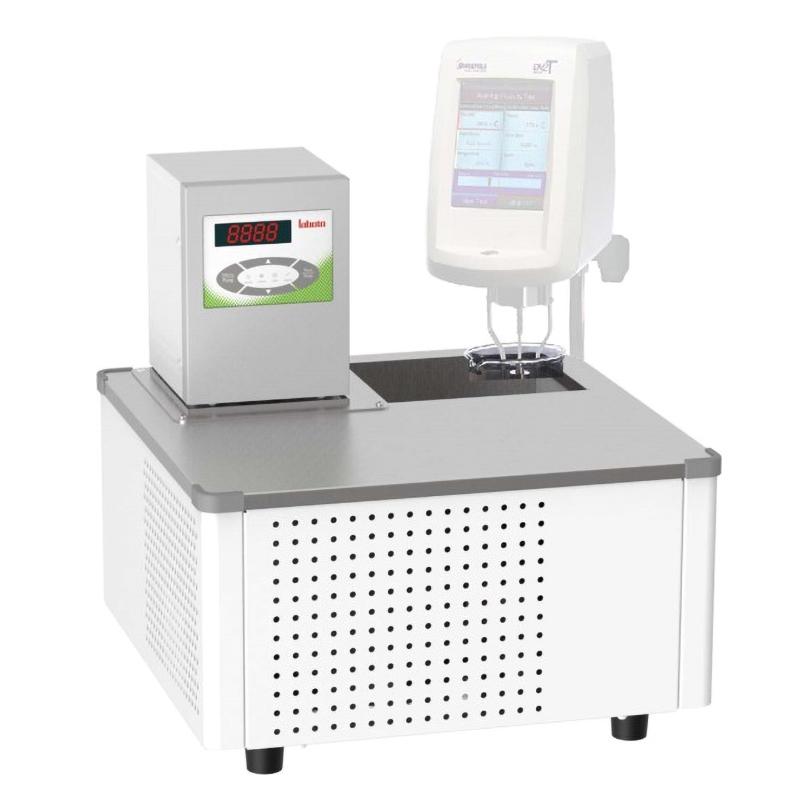

The LABTOP CC-1008EW thermostatic circulator is a compact Benchtop device with a temperature control range of -10 ° C to 100 ° C, with heating and cooling functions, suitable for laboratory high and low temperature thermostatic testing and viscosity measurement applications.
Features
1. Appearance compact, small size, convenient desktop placement
2. With external temperature control and programmable function, support 10-stage program control
3. Easy to operate and display when used with Viscometer
4. Standard two heightening racks and two insulation pipes
5. With both heating and cooling functions, accurate temperature control
6. Low-level buoy provides sound and light alarm
7. Maintenance-free pressure/suction pump, Pump Power, Temperature uniformity
8. Large opening design, supports direct placement of containers or tuberacks
9. Pump pressure and Flow rate automatically adapt to external load
10. High-performance stainless steel and plastic for liquid-contacting parts
11. Use fluorine-free and environmentally friendly refrigerants
12. Multiple operation modes are available, and accidental power failure can be automatically restored
13. Optional intelligent control function and analog signal input
Principle
The equipment accurately detects the temperature through the Pt100 temperature sensor, uses the heating and cooling system to achieve temperature control, and stirres the bath liquid horizontally and vertically through the pressure/suction pump to ensure uniform temperature in the tank and support domestic circulation and external circulation applications.
Applications
Rotor Viscometer, Rotational Viscometer, cone-plate viscometer for sample viscosity testing in the bath, rotor Viscometer, Rotational Viscometer, cone-plate viscometer for sample viscosity testing in the water bath jacket outside the bath, high and low temperature reaction process temperature control in the bath, quality control such as temperature sensor calibrated
Steps
1. Place the device on the desktop
2. Connect the power supply and external circulation lines
3. Set the required temperature parameters or program
4. Start the device for temperature control
5. Conduct sample testing or reactions
6. Monitor the testing process and data
Notice
• Pay attention to the low liquid level alarm to prevent dry burning
• Ensure that the Ambient Temperature is within the range of 5~ 32 ° C
• relative humidity should not exceed 80%
• Pay attention to the safety of pipeline connection during external circulation
• Power supply voltage check before use
