Overview

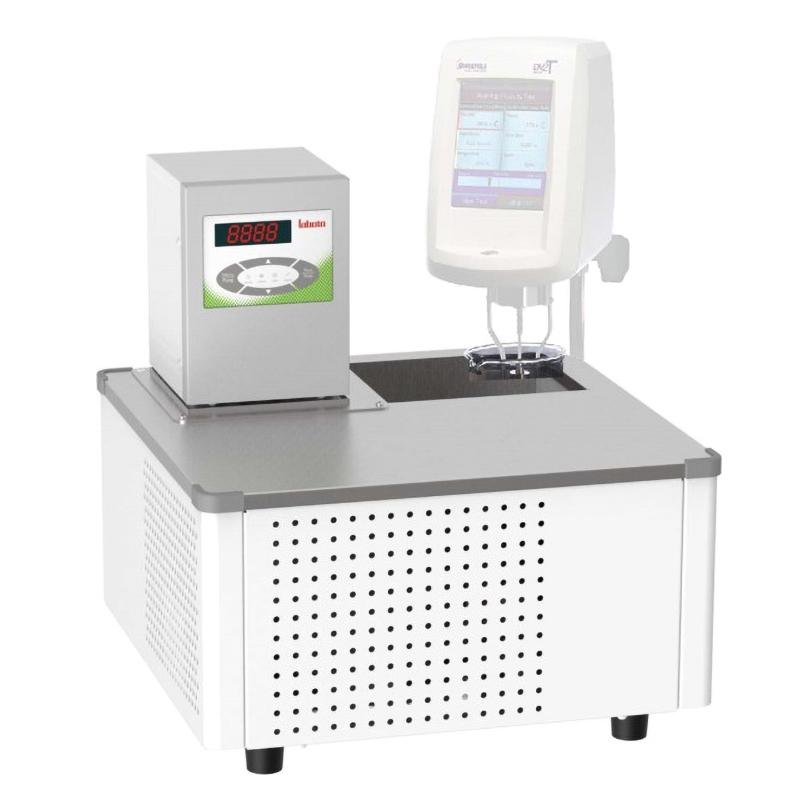

The LABTOP CC-2008EW thermostatic circulator is a compact Benchtop device with heating and cooling capabilities for precise temperature control from -20 ° C to 100 ° C. The device supports domestic circulation and external circulation applications and is suitable for laboratory sample thermostatic reaction and viscosity testing.
Features
1. Appearance compact, small size, convenient desktop placement
2. With external temperature control and programmable function, realize automatic heating, thermostatic, cooling test
3. 10 program control, to achieve timing thermostatic, heating, cooling requirements
4. Easy to operate when used with Viscometer, the test process and data are clear at a glance
5. Standard two heightening racks, suitable for sample cups of different sizes
6. Standard two insulation pipes, easy external circulation water bath jacket thermostatic viscosity test
7. With both heating and cooling functions, precise control of temperatures from -20 ° C to 100 ° C
8. Low-level buoys provide light and sound alarms to prevent dry burning
9. Maintenance-free pressure/suction pump, Pump Power, Temperature uniformity in the tank
10. Large opening design, the container can be placed directly in the slot or through the tuberack to place multiple testtubes
11. Pump pressure and Flow rate automatically adapt to external load, standard M16x1 connecting nut
12. Contact liquid parts with high performance stainless steel and plastic, corrosion resistance and no scaling
13. Fluorine-free environmentally friendly refrigerant
14. Multiple operation modes are available, and accidental power failure can be automatically restored
15. Optional intelligent control function: multiple interfaces for remote communication
16. Optional analog signal input, support external smart device control
Principle
The equipment monitors the temperature in the tank in real time through the Pt100 temperature sensor, combined with the 2000W Heating power and refrigeration system to achieve accurate temperature control. The pressure/suction pump simultaneously stirres the bath liquid in the tank horizontally and vertically to ensure uniform temperature distribution, supporting both domestic circulation and external circulation Operating Mode.
Applications
Rotor Viscometer, Rotational Viscometer, cone-plate viscometer for sample viscosity testing in the bath, rotor Viscometer, Rotational Viscometer, cone-plate viscometer for sample viscosity testing in the water bath jacket outside the bath, high and low temperature reaction process temperature control in the bath, quality control such as temperature sensor calibrated
Standards
No relevant information
Steps
No relevant information
Notice
• Permissible Ambient Temperature Range 5~ 32 ℃
• Allowable relative humidity not exceeding 80%
• Make sure the liquid level is normal before use to avoid dry burning
• Pay attention to the matching of the connecting pipe diameter during external circulation
• Power supply voltage requirement 200~ 230 VAC/50Hz
