Overview

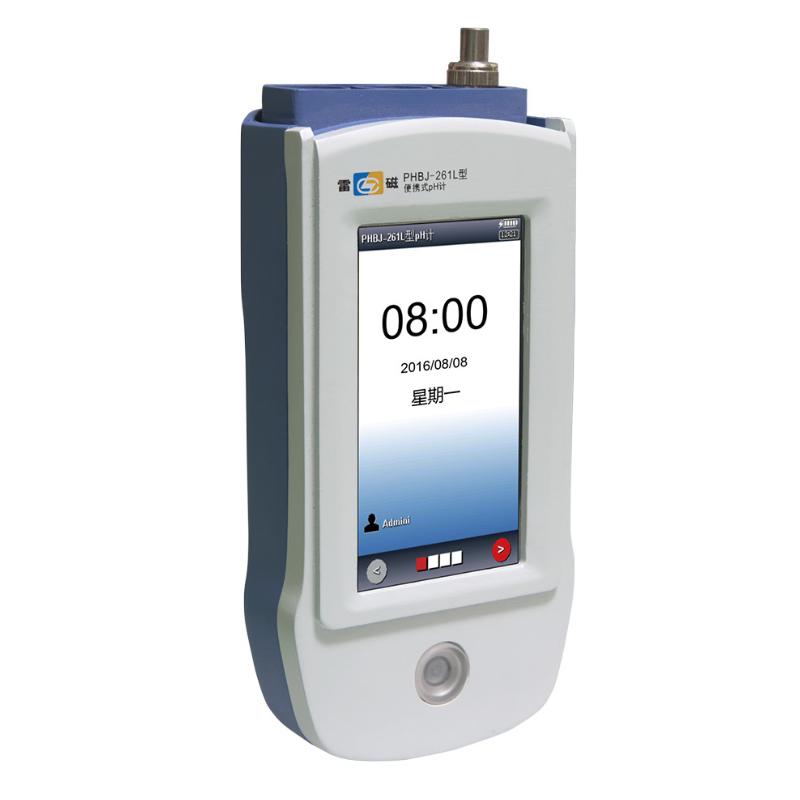

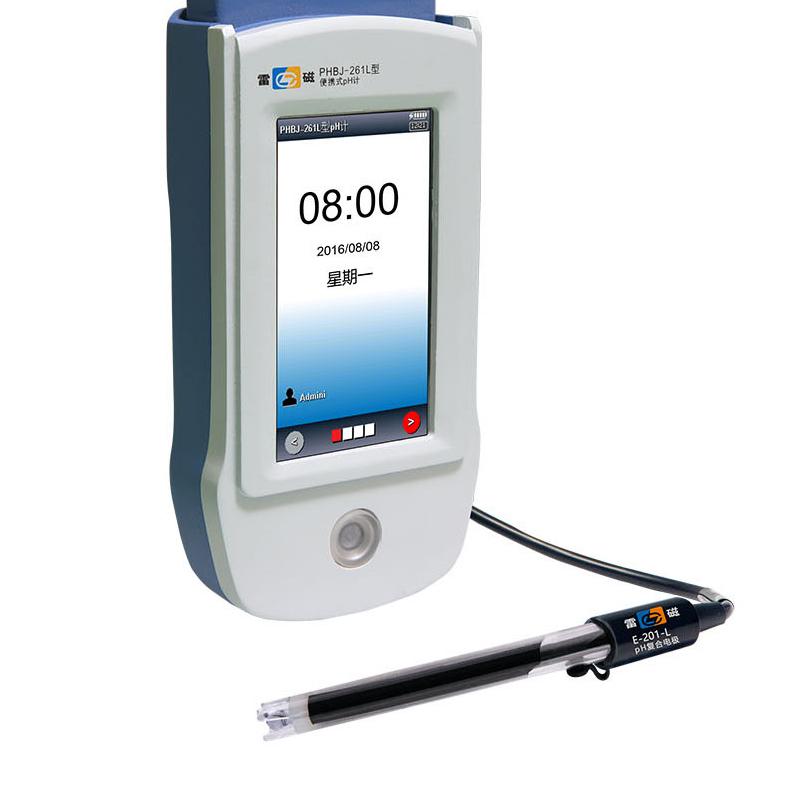

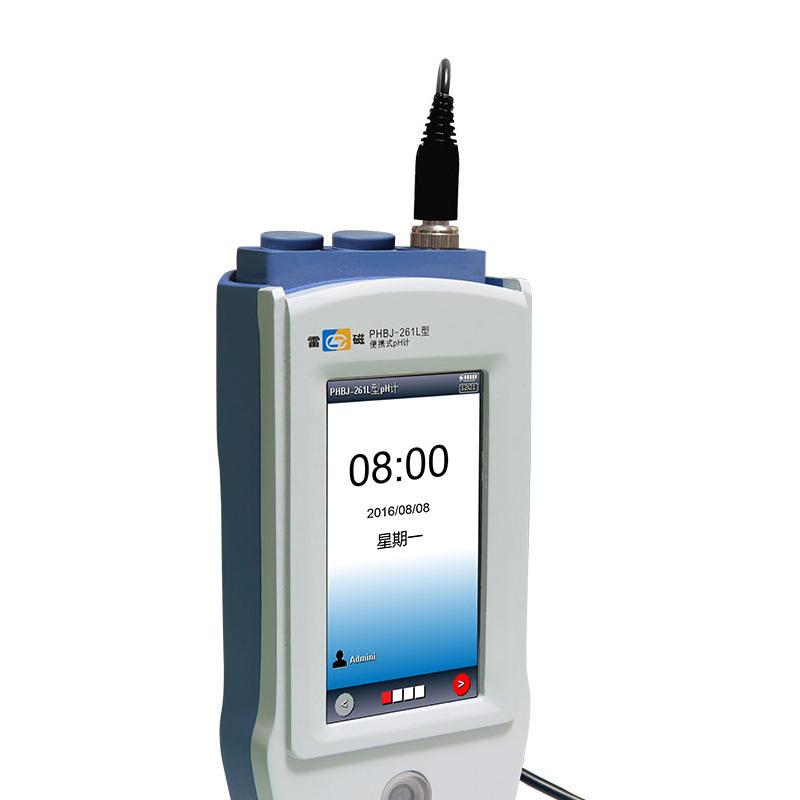

LEICI PHBJ-261L Portable pH Meter is a High Accuracy measuring instrument with high definition color LCD Touchscreen, supports Chinese and English operation, with intelligent detection, data management and power management functions, suitable for rapid detection of pH, mV and temperature parameters in the field.
Features
1. high definition color LCD Touchscreen, clear display
2. Support Chinese and English language switching
3. pH resolution can be selected from 0.001pH, 0.01pH and 0.1pH, mV resolution can be selected from 0.01mV, 0.1mV and 1mV
4. Temperature units are available in ° C and ° F
5. Support boot self-diagnosis, automatic shutdown, power-off protection and factory reset
6. Support firmware upgrade, allowing function expansion
7. IP65 Protection Ratings
8. Standard triple compound pH Electrode, Electrode hanger, silicone protective cover, wristband, Portable suitcase, calibrated buffer solution
9. Intelligent Operating system, supporting Method Management, Electrode Management, Data Management and User Management
10. Support user hierarchical rights management and password management
11. Intelligent determination of endpoints, support automatic readings, timed readings, timed interval readings, manual readings
12. Support automatic/manual temperature compensation
13. Support 1-8 point pH Electrode Calibration and 1 point ORP Electrode Calibration
14. With calibration reminder and alarm function
15. Automatically identify 6 groups of standard buffer solutions such as GB, DIN, NIST, USA, MERK, JIS, etc., and support custom buffer solutions
16. Data storage, access, deletion, statistics, analysis, transmission, in line with GLP specifications
17. With USB interface, U disk read and write, scanner and Bluetooth wireless transmission function
18. Powered by large-capacity lithium batteries, supports PC and mobile power charging, with battery undervoltage and charging status reminders
19. Support backlight adjustment
Principle
The instrument detects the hydrogen ion concentration in the sample by triple composite pH Electrode, converts it into a pH value or mV signal, and combines with a temperature sensor for automatic or manual temperature compensation to ensure measurement accuracy. The intelligence system automatically recognizes the standard buffer solution and supports multi-point calibration for accurate calibrating.
Applications
Water quality monitoring, environment testing, laboratory analysis, industrial process control, food and beverage, pharmaceuticals, agriculture, education and research
Steps
1. Boot self-test and select the language
2. Electrode and temperature sensor
3. Measurement mode (pH, mV or temperature)
4. Electrode calibration using standard buffer solution
5. Set the reading mode (automatic, timed, manual)
6. Start measurement and record data
7. Transfer data via USB or Bluetooth
8. Clean Electrode and shut down after use
Notice
• Electrode integrity before use to avoid violent collisions
• Use fresh buffer solution during calibration to prevent contamination
• Electrode cleaning after measurement to prolong service life
• Avoid Operating in Extreme Temperatures or Humidity environments
• Regularly check the battery power to prevent undervoltage from affecting the measurement
Store in a drying place with standard protective cover
• Ensure power stability and prevent interruptions when upgrading firmware
