Overview

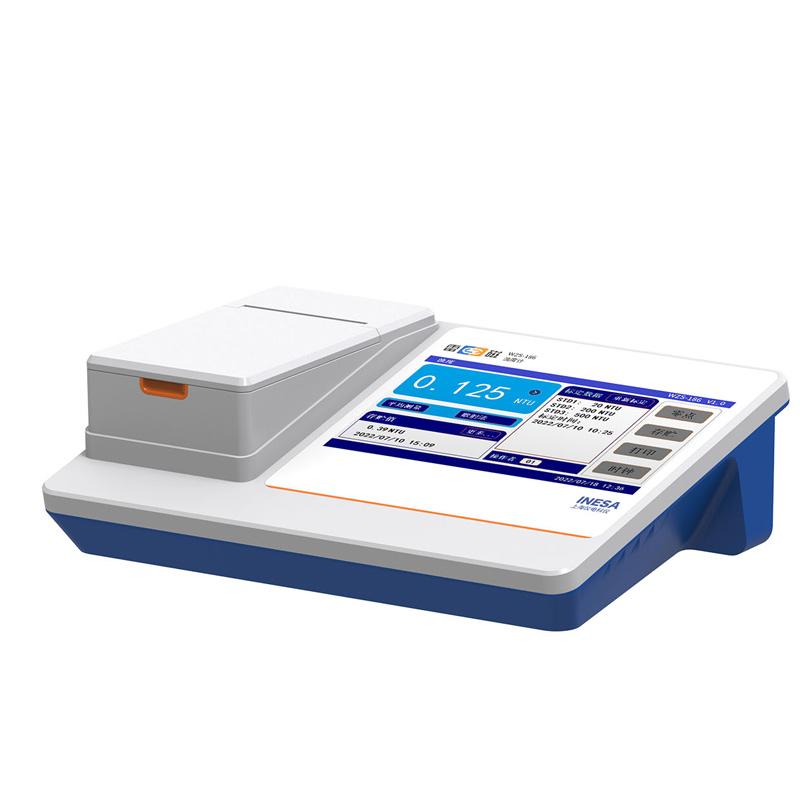

The LEICI WZS-186 Turbidimeter is a precision measuring instrument with a 7-inch color high definition Touchscreen that supports scatter and scatter-transmit light Measurement principles, conforms to ISO 7027 and HJ 1075 standards, and features intelligent detection, data management, and power outage protection.
Features
1. Adopt 7-inch color high definition LCD Touchscreen, clear display
2. Infrared LED Illuminant, ISO 7027 and HJ 1075 compliant
3. Support scattering method and scattering-transmission method Measuring method switching
4. Automatic range switching
5. Support NTU, FNU, EBC Measurement unit switching
6. Support Standard measurement and Average Measurement mode
7. Support zero point correction and turbidity calibrating
8. Data storage, access, deletion, transfer and printing
9. Compliant with GLP for data traceability
10. Support connecting RS-232 serial printer and USB interface PC connection
11. IP54 Protection Ratings
12. Standard turbidity bottle and long-lasting turbidity calibrating set
Principle
Measurement principles of scattering and scattering-transmitted light were used to measure the turbidity value by irradiating the sample with infrared LED Illuminant and detecting the intensity of scattered light.
Applications
Water quality monitoring, environment testing, industrial process control, laboratory analysis
Standards
ISO 7027、HJ 1075
Steps
1. Power on and select Measuring method
2. Perform zero correction
3. Select the calibrating point for turbidity calibrating
4. Put in the sample for measurement
5. Viewing, storing, or transferring data
6. Optional printing of measurement results
Notice
• Operating Environment Temperature should be between 5 ° C and 35 ° C
• relative humidity not more than 85%
• Power supply with standard Power Adapter
Periodically calibrated to ensure measurement accuracy
• Avoid strong vibration or impact on the instrument
Keep the measurement window clean
