Overview

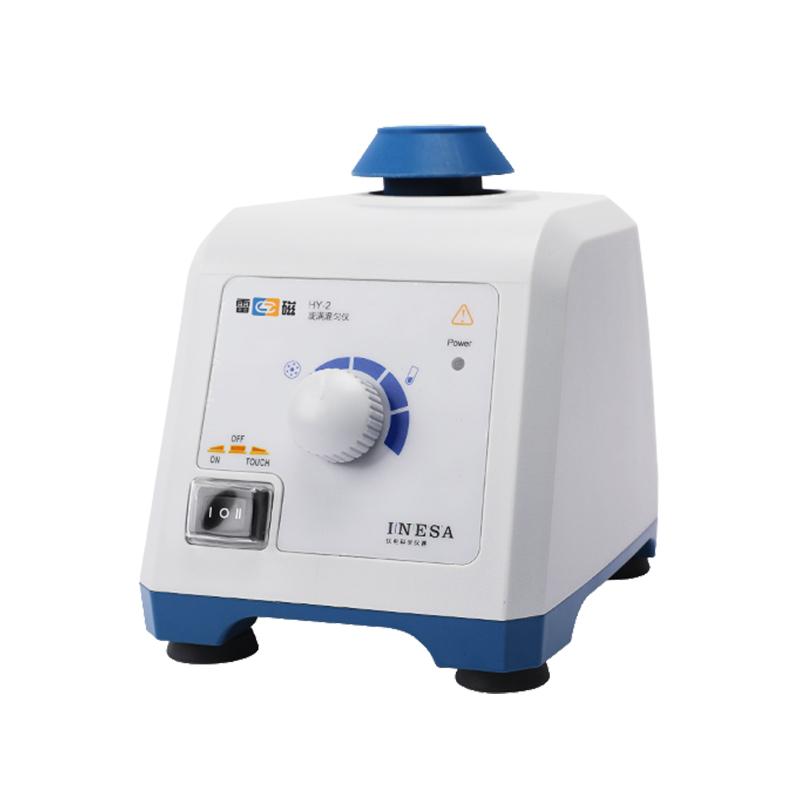

HY-2 vortex Mixer is widely used in environment monitoring, Petrochemicals, food, metallurgy and other Universities & colleges, laboratories and laboratories of scientific research and production enterprises for mixing and extraction. It can quickly, uniformly and effectively mix liquids, liquids, and solids in the form of high-speed vortices.
Features
1. Streamlined design, compact and beautiful, compact structure
2. Stepless speed regulation, Knob type Operation mode
3. It can be used after unpacking, one step at a time
4. High-performance, low-noise motors ensure quick and effective mixing
5. point/continuous one-button switching, flexible and simple operation, can cope with different experimental requirements
Principle
The instrument adopts a circular oscillation mode and is driven by a shaded pole motor to generate a high-speed vortex motion, so that the samples can be mixed quickly and uniformly within the range of a turnover diameter of 4mm.
Applications
Environment Monitoring, Petrochemicals, Food, Metallurgy, Universities & colleges, Research Institutes, Manufacturing Laboratories, Laboratories
Steps
1. Place the instrument on a stable bench

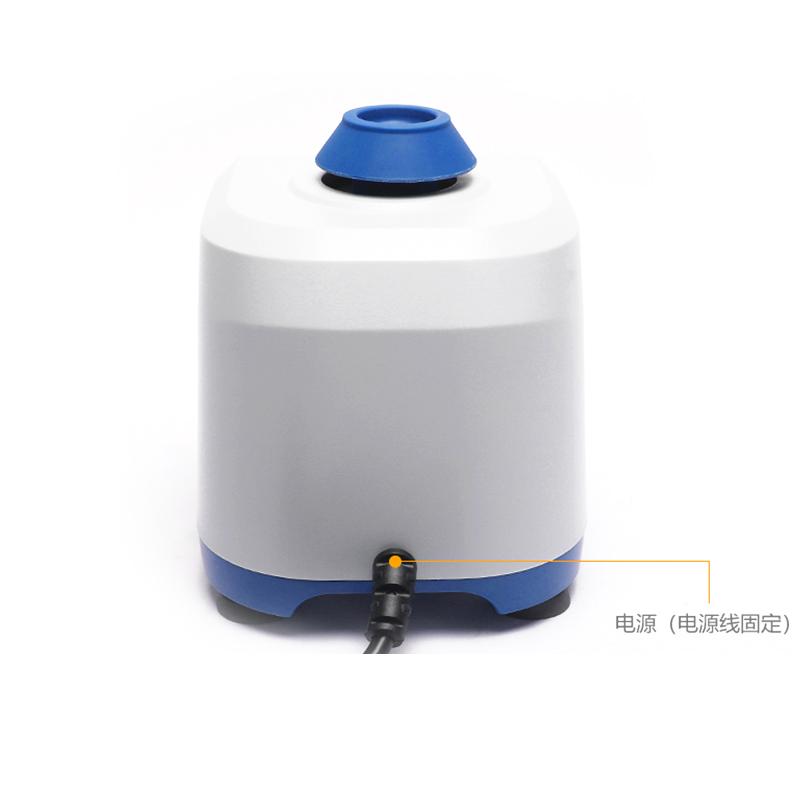

2. Connect the power supply (200-240/100-120VAC)
3. Place the sample that needs to be mixed

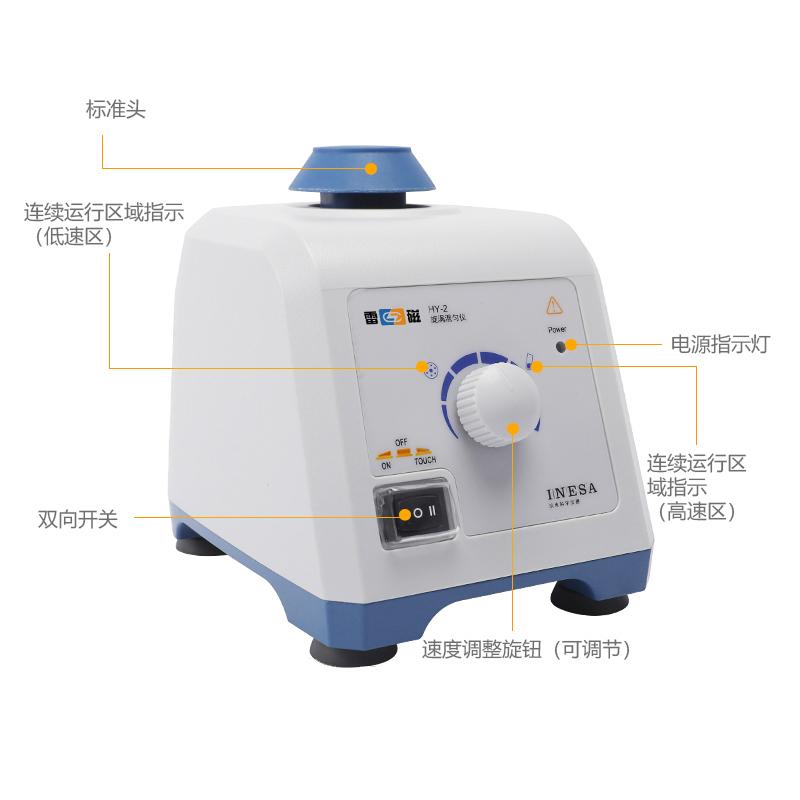

4. Adjust Rotation speed by knob (0~ 2800rpm)
5. Select Point or Continuous Operating Mode
6. Start the instrument for mixing operation
Notice
• Make sure the Power supply voltage matches the instrument requirements before use
• The instrument should be placed on a stable workbench for use
• Rotation speed adjustment range to avoid exceeding 2800rpm
• Select the appropriate point or continuous Operating Mode according to the experimental requirements
• Clean the surface of the instrument in time after use
