Overview

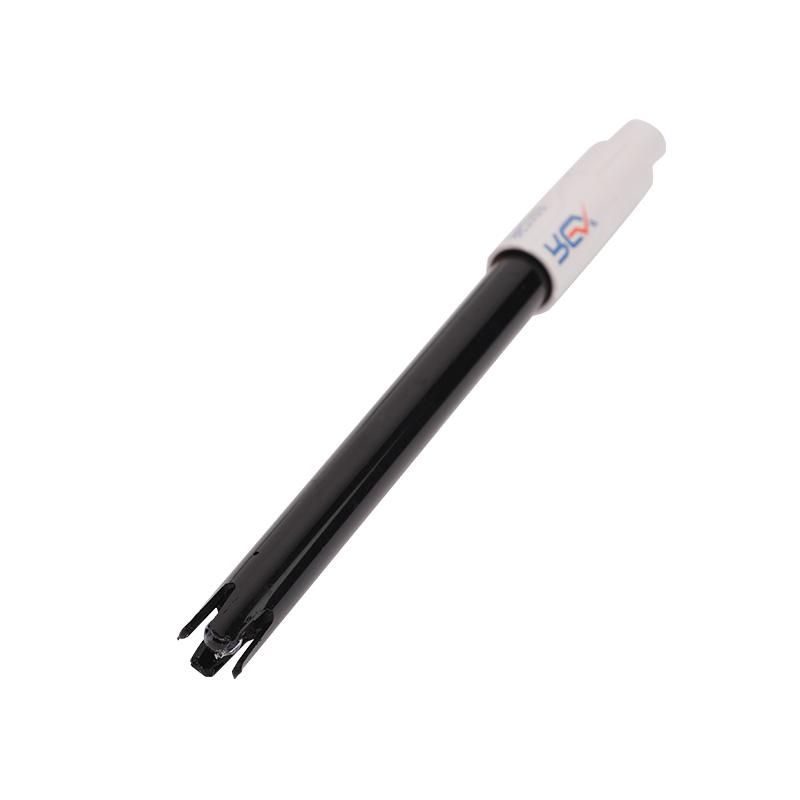

LEICI 962103 Open pH Composite Electrode is an Electrode product for the measurement of common water samples and general contamination samples. Polyether ether ketone shell material and open liquid interface design, with long life reference system, Measurement range 0-14pH, Operating temperature range 0-80 ℃.
Features
1. Open liquid junction design, suitable for general contaminated samples
2. Polyether ether ketone shell material, with good corrosion resistance
3. Long Life Reference System for Measurement Stability
4. Measurement accuracy, suitable for common water sample analysis
5. Operating temperature range, 0-80 ℃ wide applicability
Principle
The pH composite Electrode determines the pH value by measuring the potential difference generated by the concentration of hydrogen ions in the solution. The open liquid junction design allows the Electrode to be in direct contact with the sample solution, providing a stable reference potential through a reference system for accurate measurement of the sample's acid alkalinity.
Applications
Common water sample measurement, general pollution sample detection
Steps
1. Electrode and measuring instrument
2. Electrode calibrating
3. Electrode immersion in the sample to be tested
4. Record the ph value after waiting for the reading to stabilize
5. Electrode cleaning and storage after measurement
Notice
• Electrode filling solution is non-refillable, please check before use
• Avoid Electrode in Extreme Temperature Conditions
• Electrode should be cleaned in time after measurement
• Electrode should be kept moist during storage
• Avoid strong impact or falling Electrode
