Overview

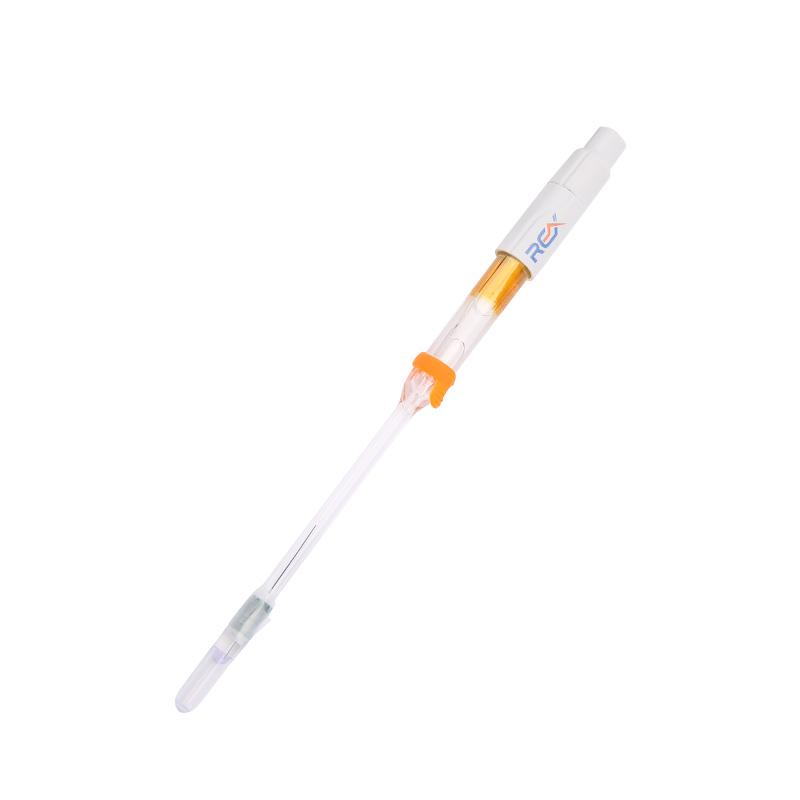

The LEICI 962244 Slender pH Composite Electrode is a precision measurement tool designed for microsamples above 0.2 mL or fine bore containers. The Electrode is made of Glass, Measurement range 0~ 14pH, Temperature range 0-60 ° C, High Performance Ceramic Core Liquid Boundary and Silver Ion Trapping Hydrazine + Long Life Reference Structure, Support Additive Liquid Reference Solution.
Features
1. Specially designed for trace samples, suitable for samples above 0.2mL
2. Slender structure suitable for small diameter container measurement
3. High-performance ceramic core liquid junction ensures stable performance
4. Silver ion capture hydrazine + long-life reference structure to extend service life
5. Liquid reference solution design is easy to maintain
6. S7 to BNC (Q9 type) connector has strong compatibility
Principle
The pH composite Electrode is based on the principle of Glass electrode, which generates a potential difference through the selective Response of the Glass film to hydrogen ions, and maintains the reference Electrode Stability by combining the liquid boundary of the high-performance ceramic sand core. The silver ion trapping hydrazine structure effectively prevents silver ion contamination and ensures accurate measurement of ph value in trace samples.
Applications
Trace sample measurement, pH detection of fine diameter container, laboratory micro analysis
Standards
The product information does not mention specific compliance standards
Steps
1. Connect S7 to BNC (Type Q9) connector to pH Meter
2. Add filler solution (model 614001) to the specified liquid level
3. Electrode immersion above 0.2 mL of the sample to be tested
4. Record the ph value after waiting for the reading to stabilize
5. Clean Electrode After Use and Store Properly
Notice
• Only suitable for trace samples above 0.2mL
• Make sure the filling solution is sufficient before use
• Avoid use beyond the 0-60 ℃ Temperature range
• Clean in time after measurement to prevent pollution
• It is recommended to use the original filling solution (614001).
• Optional accessories include calibrating fluid, filling plug and protective bottle
