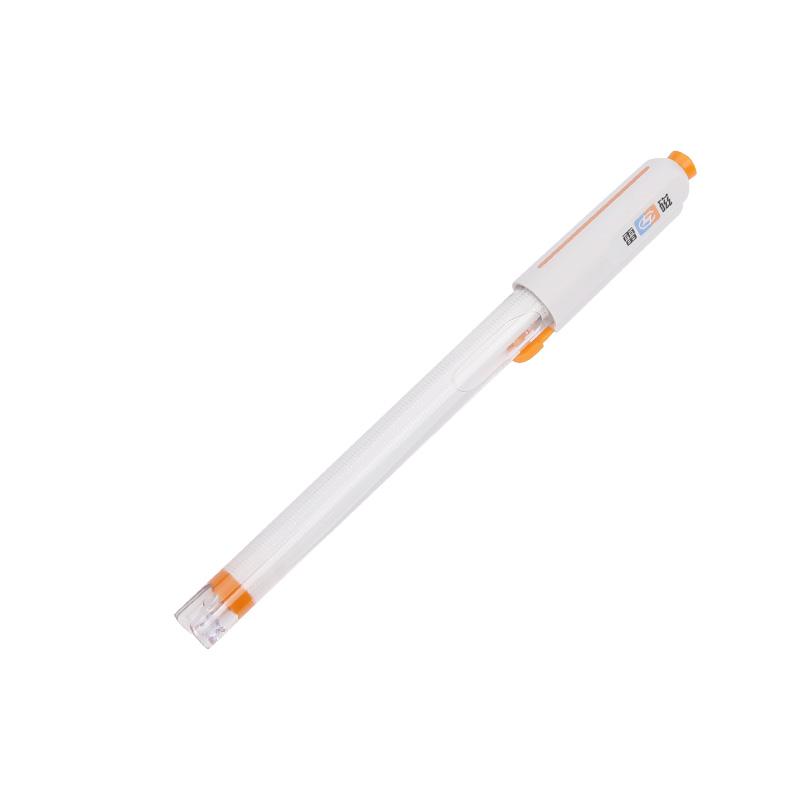

LEICI E-301F pH Triple Composite ElectRode Three-in-one Conventional Sample pH ElectRode

Name: LEICI E-301F pH Triple Composite ElectRode Three-in-one Conventional Sample pH ElectRode
Brand: LeiCi
SKU: NB030589
Price: 120.0 USD
Availability: InStock

$ 120.00Ex works

Adopt three-in-one composite structure, equipped with PT-100 temperature sensor and fiber single salt bridge, Measurement range 0-14pH, Temperature range 5-60 ℃, shell made of polycarbonic acid ester material, connector compatible with BNC interface.

Model

E-301F

Get Quote

Category : pH Meter

Brand : LeiCi

SKU : NB030589

Service :The delivery and service By NBCLab.Com

Overview

LEICI E-301F pH Triple Composite Electrode is a three-in-one conventional sample pH Electrode with a Measurement range of 0-14pH and an Operating temperature range of 5-60 ° C. It is suitable for the measurement of pH value of a variety of conventional samples.

Features

1. 3-in-1 composite design, integrated pH, reference and temperature sensor 2. Measurement range, covering 0-14pH 3. Operating temperature range 5-60 ℃ 4. Using fiber single salt bridge liquid junction 5. Reference type is Ag/AgCl 6. The filling solution is 3.0mol/L KCl 7. Shell material is polycarbonic acid ester 8. Glass bulb for sensitive film 9. Built-in PT-100 temperature sensor 10. The connector is BNC (Q9 type & Q6 type)

Principle

The Electrode is based on the Glass electrode method for the measurement of ph value. The potential difference is generated by contacting the glass bulb sensitive film with the sample. Combined with the built-in reference Electrode and temperature sensor, the pH value can be accurately measured.

Applications

Conventional sample pH measurement

Standards

Not mentioned

Steps

Not mentioned

Notice

Not mentioned

PH Measurement Range
0-14 pH
Measurement Range
5-60℃
liquid junction
Fiber monosalt bridge
reference Type
Ag/AgCl
Filler
3.0KCl mol/L
Shell material
Polycarbonic acid ester
sensitive film
Glass bulbs
Thermal compensation element
PT-100
Dimension
Φ12*120mm
connector
BNC (Q9 & Q6)
