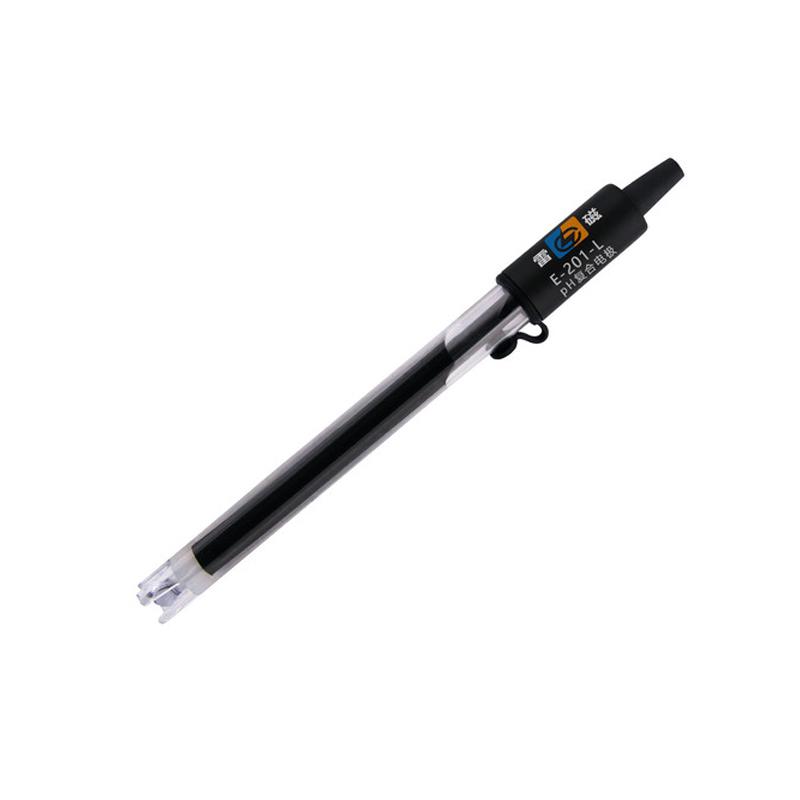

LEICI E-201-L pH Compound ElectRode Fillable 2-in-1 Conventional Sample Measurement

Name: LEICI E-201-L pH Compound ElectRode Fillable 2-in-1 Conventional Sample Measurement
Brand: LeiCi
SKU: NB030591
Price: 104.0 USD
Availability: InStock

$ 104.00Ex works

Measurement range 0-14pH, Temperature range 5-60 ℃, Fillable design for easy maintenance, fiber single salt bridge and Ag/AgCl reference system, suitable for routine sample detection.

Model

E-201-L

Get Quote

Category : pH Meter

Brand : LeiCi

SKU : NB030591

Service :The delivery and service By NBCLab.Com

Overview

The LEICI E-201-L pH Composite Electrode is a 2-in-1 conventional sample pH Electrode with a refillable design for routine pH value measurement. Measurement range is 0-14pH, Temperature Measurement range is 5-60 ° C. Stability and durability are ensured with a polycarbonic acid ester shell and Glass bulb sensitive membrane.

Features

1. 2-in-1 Composite Electrode Design with Integrated Indication and Reference Functions 2. Fillable structure for easy maintenance and extended service life 3. Using fiber single salt bridge liquid junction and Ag/AgCl reference type 4. Polycarbonic acid ester shell material, providing good mechanical strength and chemical Stability 5. BNC (Q9 type) connector, compatible with standard pH Meter interface

Principle

The pH composite Electrode is based on the principle of Glass electrode. When the sensitive Glass bubble contacts the sample, a potential difference is generated, which reflects the change of pH value. The internal Ag/AgCl reference system forms a stable electrochemistry circuit with the sample through a fiber single salt bridge, and converts the ph value into a measurable electrical signal.

Applications

Conventional sample pH measurement

Standards

Not mentioned

Steps

1. BNC Interface for Electrode to pH Meter 2. Make sure Electrode Filler is 3.0 mol/L KCl 3. Electrode immersion in the sample to be tested 4. Record the ph value after waiting for the reading to stabilize 5. Clean and properly store Electrodes after use

Notice

• Check Electrode Filler Level Before Use • Avoid collision of Electrode Sensitive Film with hard objects • Electrode cleaning after measurement to prevent contamination • Store according to the instructions when not in use for a long time • Only for regular sample measurements

PH Measurement Range
0-14 pH
Measurement Range
5-60℃
liquid junction
Fiber monosalt bridge
reference Type
Ag/AgCl
Filler
3.0KCl mol/L
Shell material
Polycarbonic acid ester
sensitive film
Glass bulbs
Dimension
Φ12*120mm
connector
BNC (Q9 Type)
