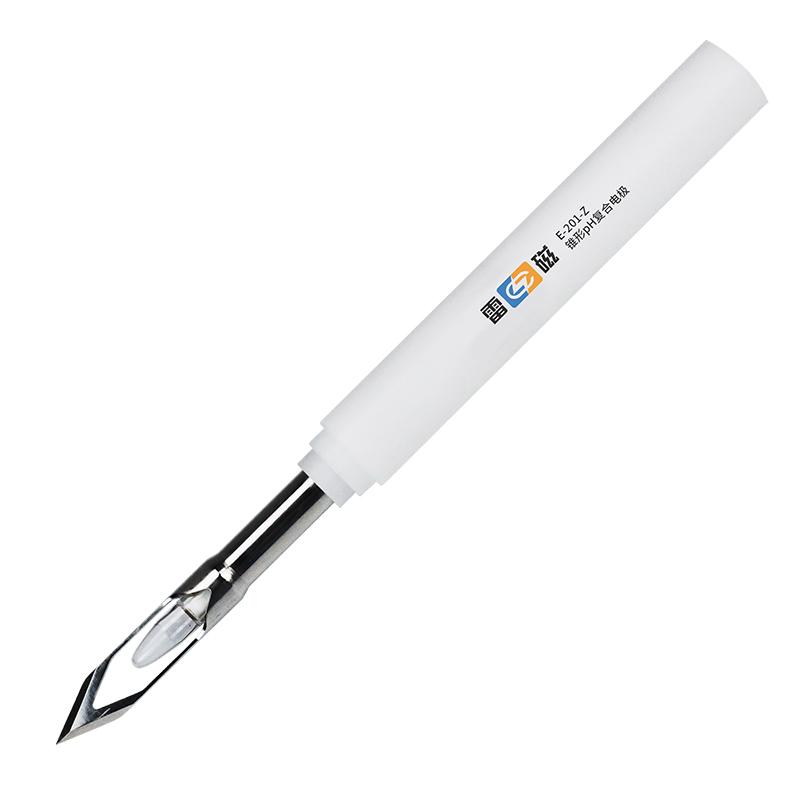

LEICI E-201-Z Conical pH Composite ElectRode Stainless Steel Cover Soil measurement

Name: LEICI E-201-Z Conical pH Composite ElectRode Stainless Steel Cover Soil measurement
Brand: LeiCi
SKU: NB030598
Price: 133.0 USD
Availability: InStock

$ 133.00Ex works

Glass conical film design, equipped with stainless steel protective cover, suitable for soil and other special sample measurement, pH Measurement range 0-14, Operating temperature 5-60 ℃, PTFE single salt bridge structure.

Model

E-201-Z

Get Quote

Category : pH Meter

Brand : LeiCi

SKU : NB030598

Service :The delivery and service By NBCLab.Com

Overview

LEICI E-201-Z Conical pH Composite Electrode is a pH measurement Electrode designed for special samples, suitable for pH value measurement of special samples such as soil. The Electrode is designed with a conical Glass film and comes with a stainless steel protective cover to ensure stable operation in complex samples.

Features

1. Glass conical membrane design for special samples such as soil pH measurement 2. With stainless steel protective cover for additional protection 3. PTFE single salt bridge liquid junction structure 4. Ag/AgCl reference system 5. Polyformaldehyde shell material, strong durability 6. BNC (Q9 type) connector standard interface

Principle

The Electrode works based on the principle of Glass electrode. Response to hydrogen ion concentration through a conical Glass film forms a potential difference. The Ag/AgCl reference Electrode provides a stable reference potential, and the two combine to output a pH-related electrical signal to the measuring instrument through the BNC interface.

Applications

Soil pH measurement, special sample testing

Standards

BNC (Q9 type) Interface standard

Steps

1. Connect Electrode BNC Connector to Matching pH Meter 2. Calibrate according to the instrument manual 3. Insert the Conical Electrode into the sample to be tested 4. Record the ph value after waiting for the reading to stabilize 5. Clean and store Electrodes as required after use

Notice

• Measurement range limited to 0-10pH, Temperature range 5-60 ℃ • Suitable for special samples such as soil measurement • It should be cleaned and maintained in time after use • Avoid use under conditions beyond specifications • Pay attention to protect the conical Glass film to avoid collision damage

PH Measurement Range
0-10 pH
Measurement Range
5-60℃
liquid junction
PTFE monosalt bridge
reference Type
Ag/AgCl
Shell material
Polyformaldehyde
sensitive film
Cone Glass Film
Dimension
Φ12*120mm+Φ12*36mm
connector
BNC (Q9 Type)

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
