LEICI 231-01 pH Glass electRode indicates ElectRode Low Conductivity Detector sample measurement

Name: LEICI 231-01 pH Glass electRode indicates ElectRode Low Conductivity Detector sample measurement
Brand: LeiCi
SKU: NB030603
Price: 88.0 USD
Availability: InStock

$ 88.00Ex works

Glass bulb sensitive film, Measurement range 0-14pH, suitable for low Conductivity Detector sample measurement under closed static conditions, Dimension Φ 12 × 120mm.

Model

231-01

Get Quote

Category : pH Meter

Brand : LeiCi

SKU : NB030603

Service :The delivery and service By NBCLab.Com

Overview

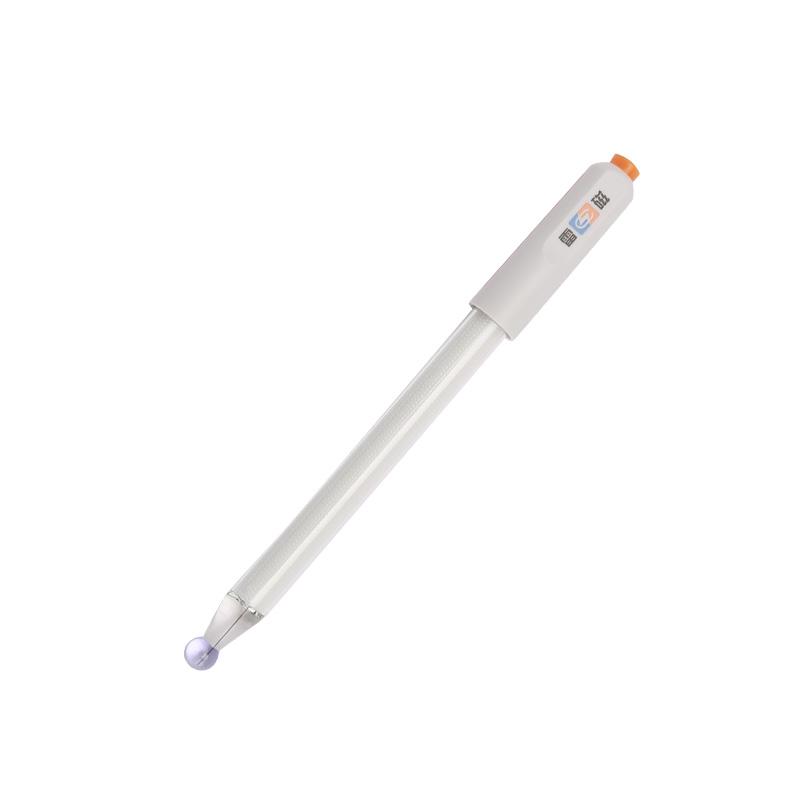

LEICI Type 231-01 pH Glass electrode is an indicator Electrode for use with Type 232-01 Reference Electrode. The Electrode features a Glass shell and Glass bulb sensitive film for the measurement of pH value of low-Conductivity detector samples under closed static conditions. Measurement range is 0-14pH. Operating temperature is 5-60 ° C.

Features

1. Glass Case for Stability and Durability 2. Glass Bulb Sensitive Film for Precise pH Response 3. Suitable for low Conductivity detector sample measurement 4. Need to use with 232-01 reference Electrode 5. Dimension is φ 12 × 120mm, easy to operate

Principle

The pH Glass electrode is based on the potential difference between the glass sensitive film and the solution to measure the ph value. Under closed static conditions, Electrode generates a response to the concentration of hydrogen ions through the Glass bulb, generating an electrical signal related to the ph value. A complete measurement system needs to be formed together with the reference Electrode.

Applications

Conductivity detector for sample measurement and closed static conditions

Standards

BNC (Q9 type)

Steps

1. Correctly connect the 231-01 pH Glass electrode with the 232-01 Reference Electrode 2. Ensure that the measurement environment is closed static conditions 3. Electrode immersion in low Conductivity detector sample 4. Record the ph value after waiting for the reading to stabilize 5. Clean and properly store Electrodes after use

Notice

• Must be used with Type 232-01 Reference Electrode • Only for measurements of low Conductivity detector samples • Operating temperature range is 5-60 ℃, avoid exceeding this range • Use under closed static conditions to ensure measurement accuracy • Regularly check the Electrode status and replace it in time if it is damaged

PH Measurement Range
0-14 pH
Measurement Range
5-60℃
Shell material
Glass
sensitive film
Glass bulbs
Dimension
Φ12*120mm
connector
BNC (Q9 Type)

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
