Overview

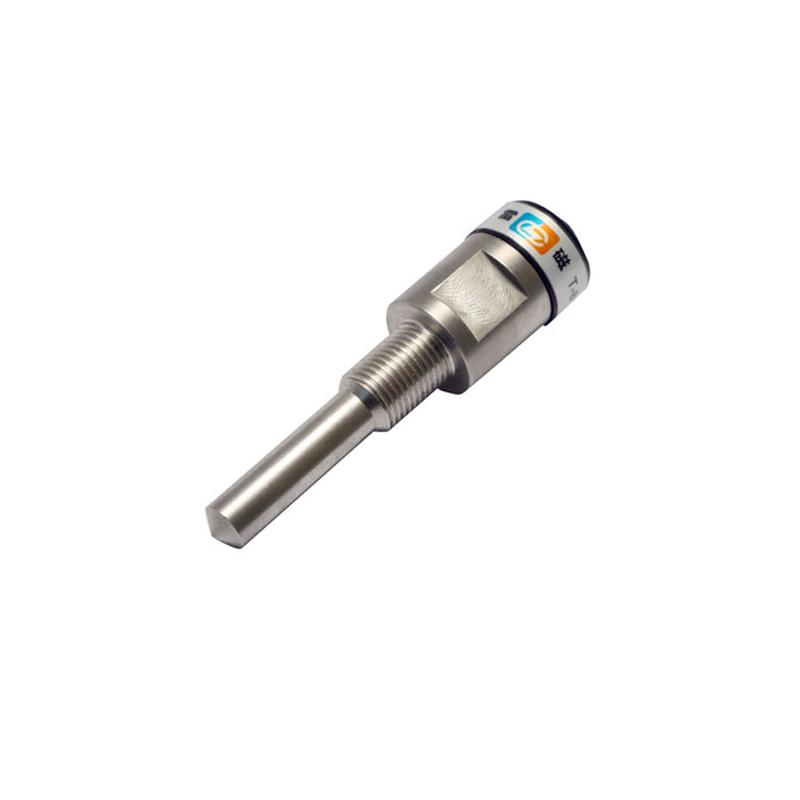

The LEICI T-817-B-6 Temperature Electrode is a professional temperature measurement device with a 316 stainless steel case, Dimension φ 16 × 56 mm, and a BNC (Type Q6) connector. The Electrode is suitable for the temperature measurement range of 0-100 ° C, with a temperature sensor of 2.25KΩ, and can be used with instruments such as DWS-295-1.
Features
1. 316 stainless steel shell, strong corrosion resistance
2. Measurement range 0-100 ℃, wide applicability
3. Equipped with BNC (Q6 type) connector, stable connection
4. Compact shape, with a size of φ 16 × 56 mm, making it easy to install
5. Response sensitive temperature sensor 2.25KΩ
Principle
Temperature Electrode detects Ambient Temperature changes through the built-in 2.25KΩ temperature sensor, converts the temperature signal into an electrical signal, and transmits it to the supporting instrument for processing and display through the BNC connector.
Applications
Temperature measurement, industrial monitoring, laboratory analysis
Steps
1. Check whether the Electrode Appearance is in good condition
2. Connect the Electrode BNC plug to the companion instrument
3. Electrode placed in the test environment
4. Turn on the instrument to read the temperature data
5. Clean Electrode After Use and Store Properly
Notice
• Avoid use in environments beyond the 0-100 ° C range
• Regularly check Electrodes and Connectors for damage
• Clean in time after use to prevent corrosion
• Ensure compatibility of supporting instruments to avoid misoperation
