Overview

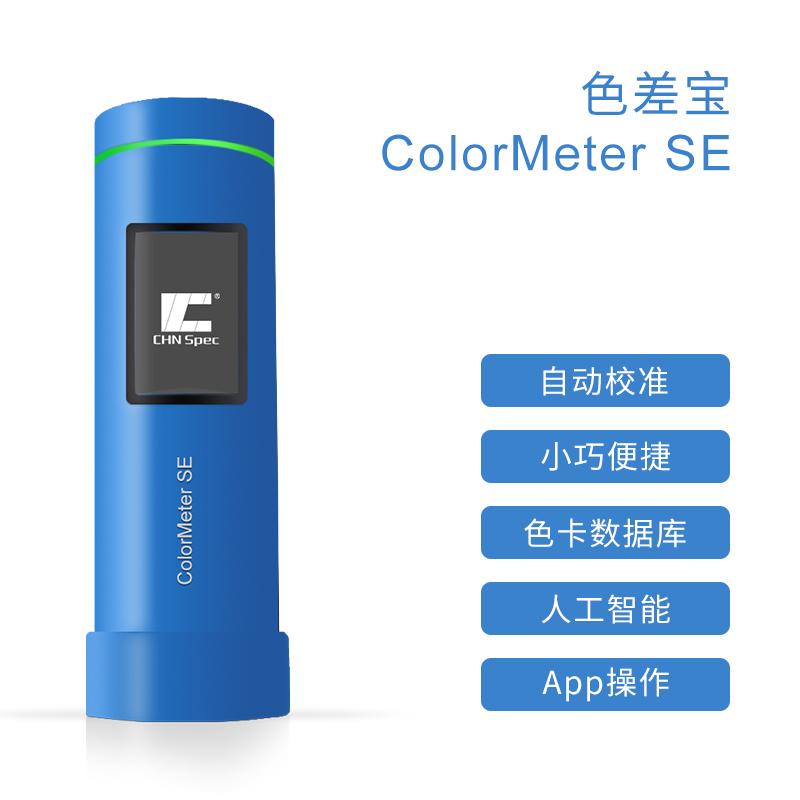

CHNSPEC ColorMeter SE is a Portable color difference measuring instrument, compact and easy to carry. It adopts D/8 structure, accurate measurement, supports wireless connection with Android or IOS devices, and has color number search function. It is widely used in Color control in plastics, printing, Encasement, Spinning & weaving, clothing and other industries.
Features

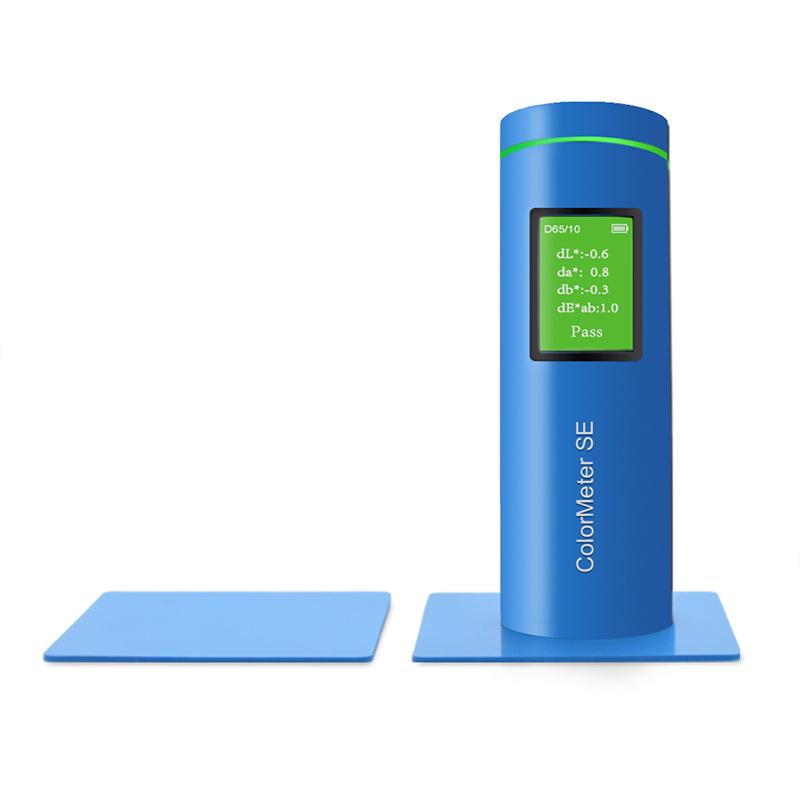

1. More accurate color measurement: using D/8 structure, SCI lighting observation conditions, using Light spectrum Sensor, the screen directly displays "Pass" or "Fail" prompts.
2. Portable massive Color Chart database: Bluetooth connection to the mobile app, create a color database, and find similar Colors anytime, anywhere.
3. Automatic calibration: Automatic calibration when powered on, APP automatically reminds to calibrate, supports Manual calibration and interval setting.
4. Stand-alone available: equipped with a 1.14-inch IPS display screen, which can store data and synchronize with apps.
5. Cloud database: Provides an official Color Chart database, allowing users to upload Color information to the cloud, and enterprises to manage shared Color Chart libraries and recipes.
Principle
The instrument adopts D/8 structure, that is, integrating sphere diffuse illumination and 8 ° observation angle, combined with SCI lighting observation conditions, uses Light spectrum Sensor to collect Light spectrum data, and connects with mobile phone App through Bluetooth for data processing and Color management.
Applications
Plastics, printing, Encasement, Spinning & weaving, Clothing
Steps
1. Automatic calibration.
2. Pick up the instrument for Color Detection.

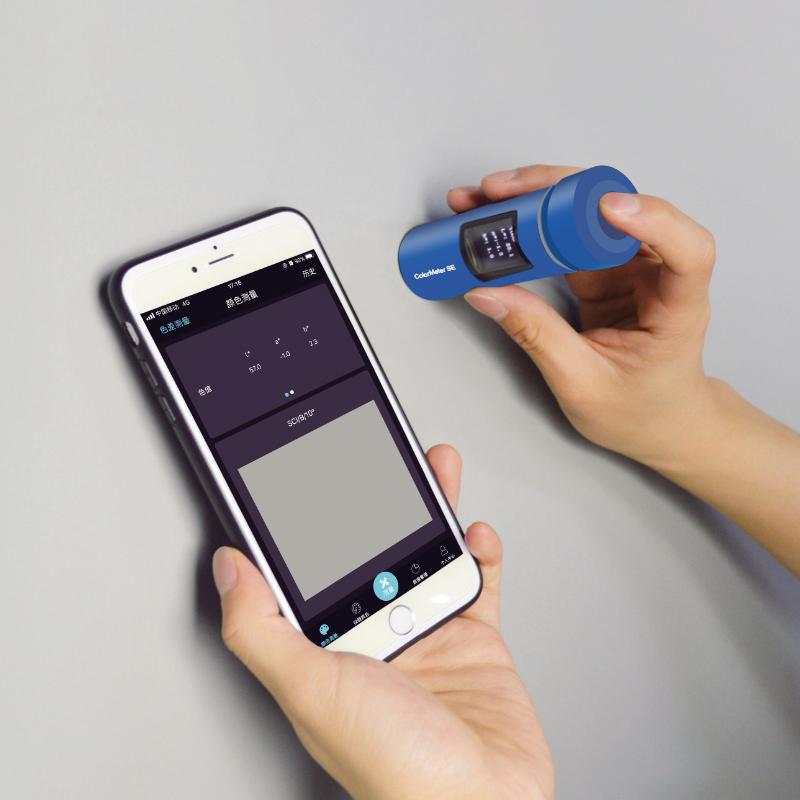

3. Connect to the mobile app through Bluetooth to manage Color data.
4. Use the app to synchronize and store data or upload it to the cloud.
Notice
• Automatic calibration when the instrument is turned on to ensure accurate data.
• Pay attention to the APP calibrating reminder when working for a long time.
• Only supports Android or IOS device connection.
The USB port is for charging only and does not support data transmission.
• Measurement Stability is Delta E ≤ 0.1 with an accuracy of 0.1.
• Battery life can be measured 5000 times with a single charge.
• The field of view is 10 °, suitable for specific observation conditions.
