Overview

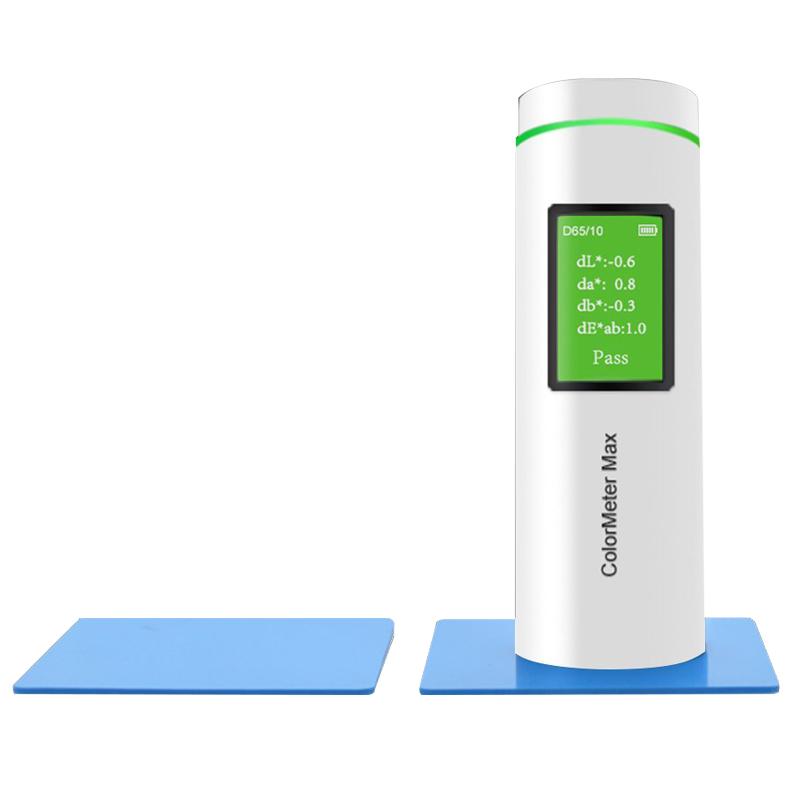

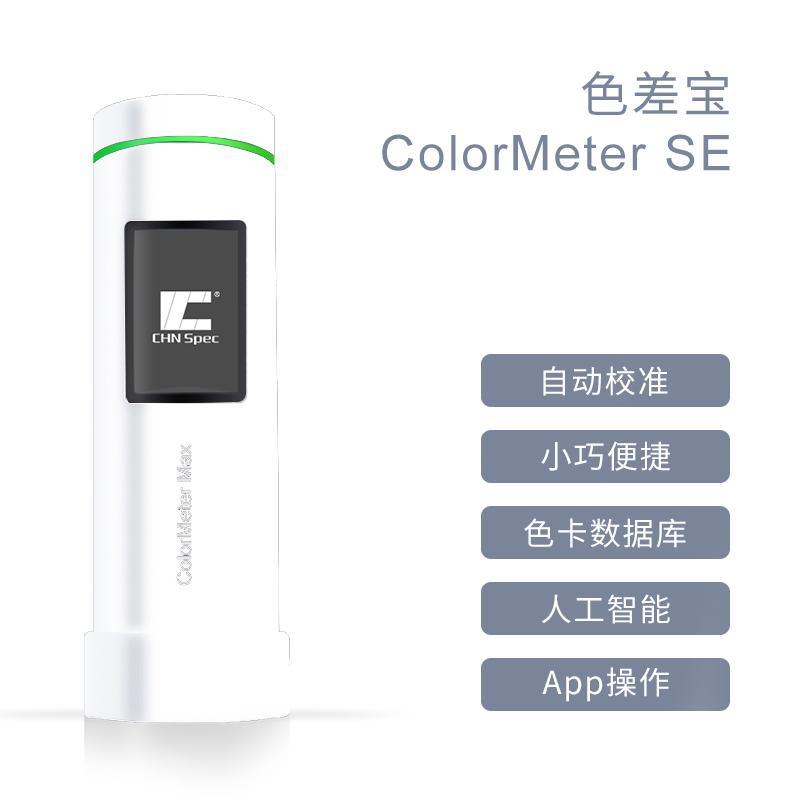

Color difference treasure ColorMeter SE/Pro/MAX is a CHNSPEC brand Portable Color measuring instrument, models include ColorMeter SE, Pro and MAX. It is compact and easy to carry. It uses D/8 structure (integrating sphere diffuse illumination, 8 ° viewing angle) and SCI lighting observation conditions to ensure measurement accuracy. The instrument supports wireless connection with Android or IOS devices, can manage Color on mobile phones, and has color number lookup function.
Features
1. More accurate color difference meter: using D/8 structure, SCI lighting observation conditions, using Light spectrum Sensor to provide better Light spectrum data, and directly displaying "Pass" or "Fail" prompts on the screen.

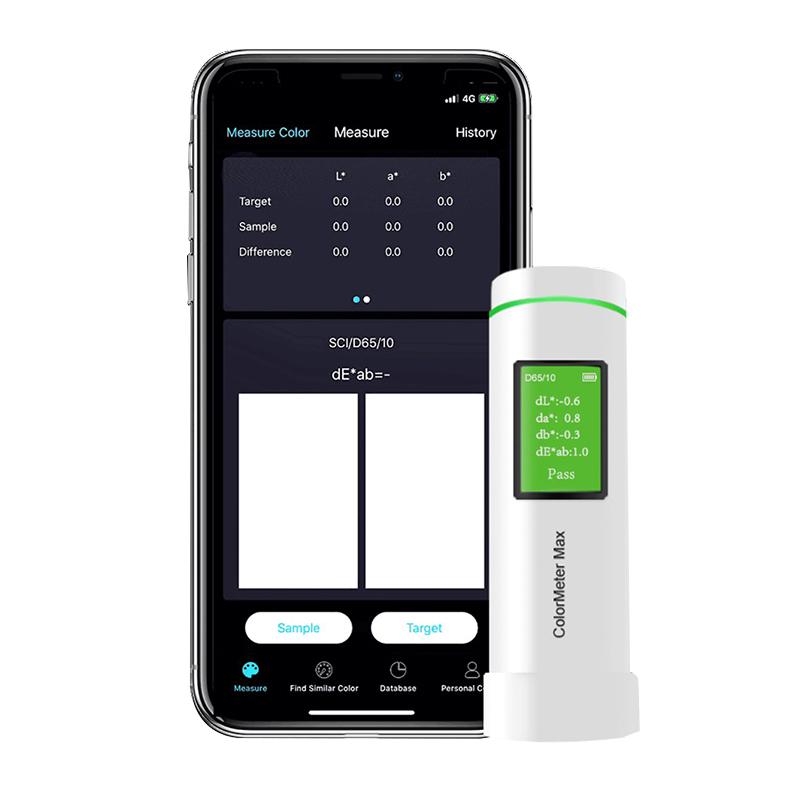

2. Massive Color Chart Database: Bluetooth connection to the mobile app, create a color database, enter Color Chart information, and find similar Colors anytime, anywhere.
3. Automatic calibration, it can take care of itself: Automatic calibration when turned on, the APP automatically pops up a calibrate reminder, supports Manual calibration and calibrate interval settings.
4, stand-alone available, measurement, data are a lot: equipped with 1.14 inch IPS display screen, can store data, open the app at any time synchronization.
5. Cloud database, easier to view and upload: Provide official Color Chart database, users can upload Color information library to the cloud, enterprise users can create, manage Color Chart information library and Color formula and share.
Principle
Color difference Bao uses a D/8 measurement structure, namely integrating sphere diffuse illumination and 8 ° viewing angle, including specular reflected light (SCI). It uses Light spectrum Sensor to measure Light spectrum reflectance at 10nm intervals in the Wavelength range of 400~ 700nm, and LED full-band equalized Illuminant illumination to achieve fast and accurate Color data collection and analysis.
Applications
Plastics, printing, Encasement, Spinning & weaving, Clothing
Steps
1. Automatic calibration.

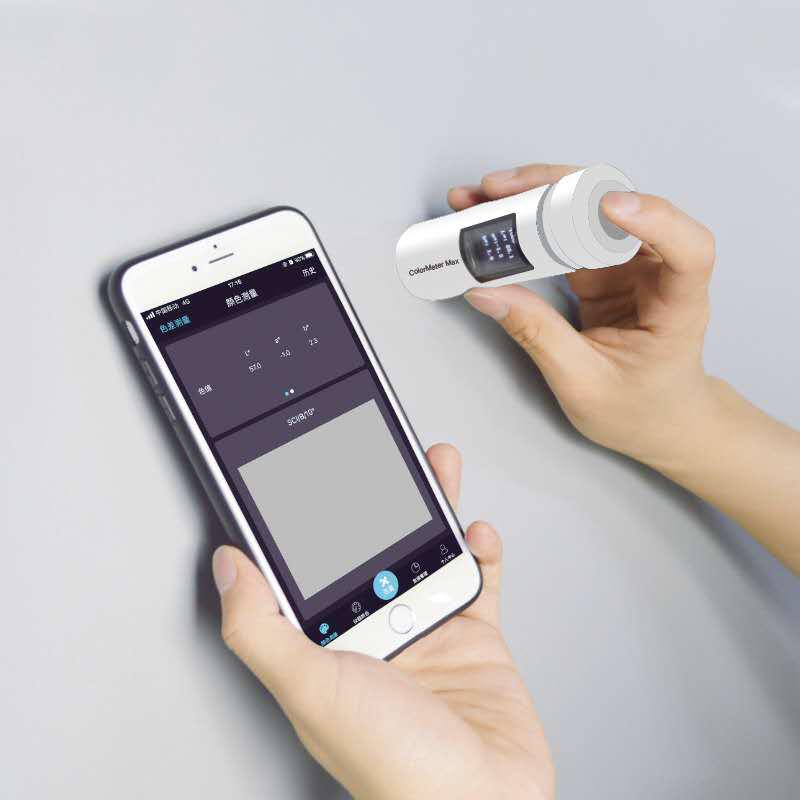

2. Pick up the instrument for Color Detection.
3. Connect to the mobile app through Bluetooth to manage Color data.

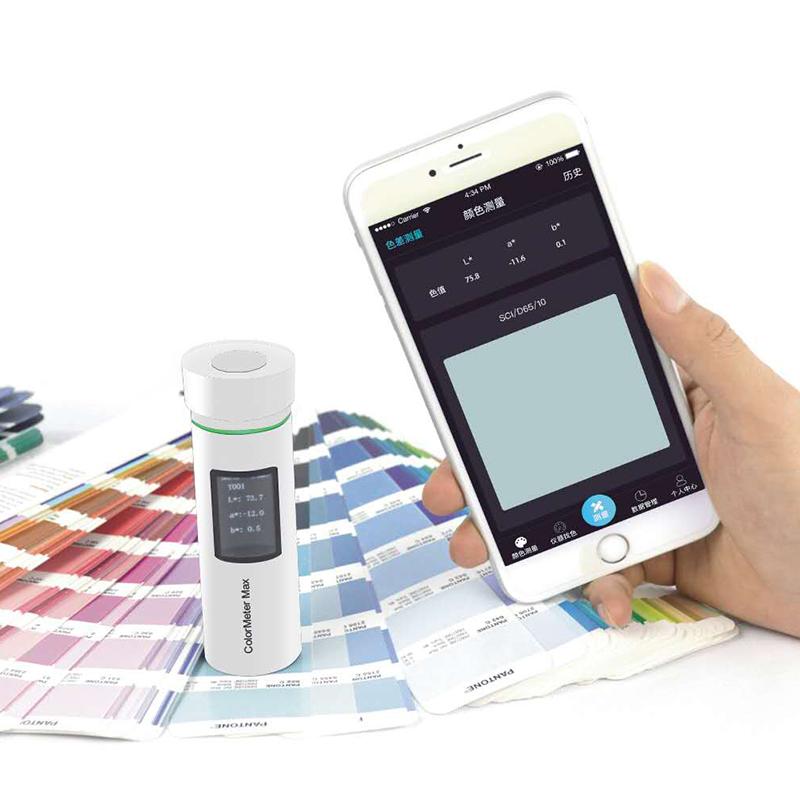

4. Use the app to find the color number or sync data.
Notice
• Automatic calibration when the instrument is turned on to ensure accurate data.
• When working for a long time, pay attention to the calibrated reminder of the APP.
• Make sure the battery is fully charged before use, and it can be measured 10,000 times on a single full charge (MAX and Pro models).
• When connecting the device, confirm that the Bluetooth or USB interface is normal.
• Sync through the app in time after storing the data to avoid loss.
