Overview

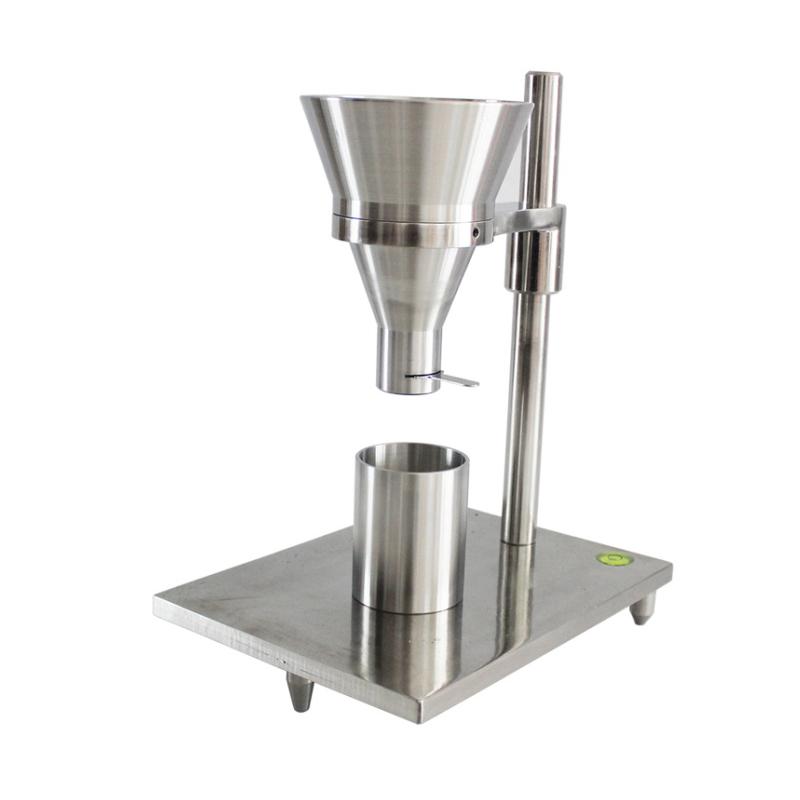

The XIONGFA XF-1636B apparent bulk density meter is a special equipment for testing the apparent density (pb) of loose materials (powder or pellets) that can flow out of a specified funnel. This method is suitable for the measurement of the apparent density (pb) of the powder molding compound, that is, the mass per unit volume, and provides parameters for the design of the molding compound Encasement, mold cavity, and extrusion screw.
Features
1. Meet the requirements of various national standards such as GBT 1636-2008
2. Made of stainless steel, strong durability
3. Receiver volume is accurate to 100ml +/- 0.5ml
4. The sampling range is 110ml-120ml
5. The funnel angle is 20 °, the upper diameter is 91mm, and the inner diameter of the discharge port is 10mm.
6. glassgraduates with scale diameter of 45mm
Principle
The loose material (powder or pellets) flows out freely by specifying the funnel and is collected into a standard volume receiver. Measurement unit mass in volume to calculate the apparent density (pb) of the material.
Applications
Plastic material apparent density (pb) test, powder molding compound test
Standards
K-6721(1966)、GB/T3402、GB/T1636、GB/T20022-2005、GB/T13173-2008、GB/T1636
Steps
Prepare samples and control the sampling volume within the range of 110ml-120ml
2. Pour the sample into the funnel
3. Open the plug-in board to allow the material to flow out freely
4. Collect the outflow material into the receiver
5. mass measurement of collected material
6. Calculate apparent density (pb) values
Notice
• The sampling amount must be strictly controlled within the range of 110ml-120ml
• Make sure the funnel and feeder are clean and drying
• Keep the equipment level stable during operation
• Regularly check whether all parts of the equipment are in good condition
• Operate in strict accordance with relevant standards
