Overview

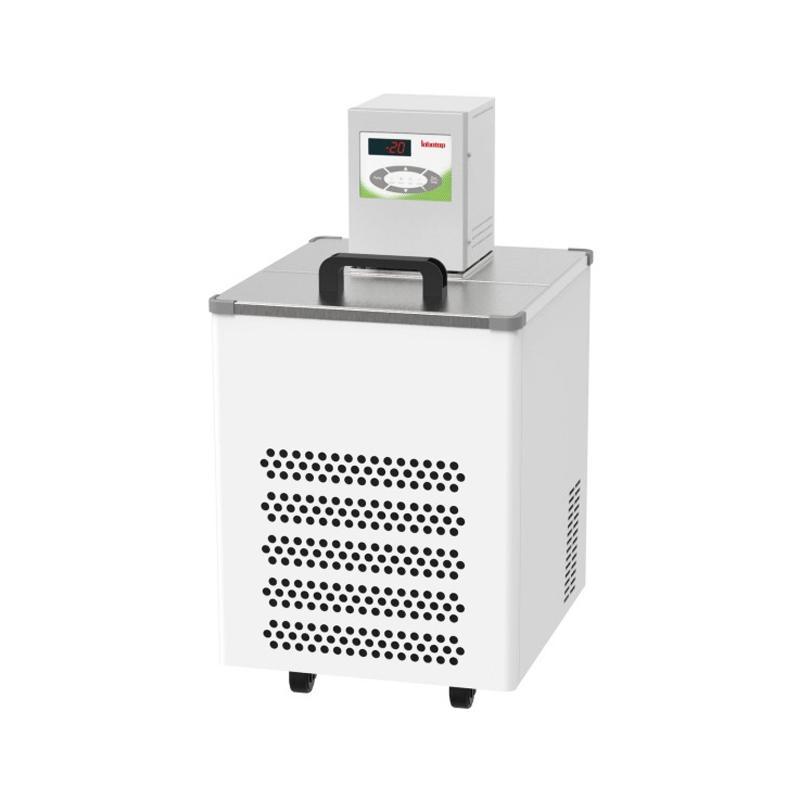

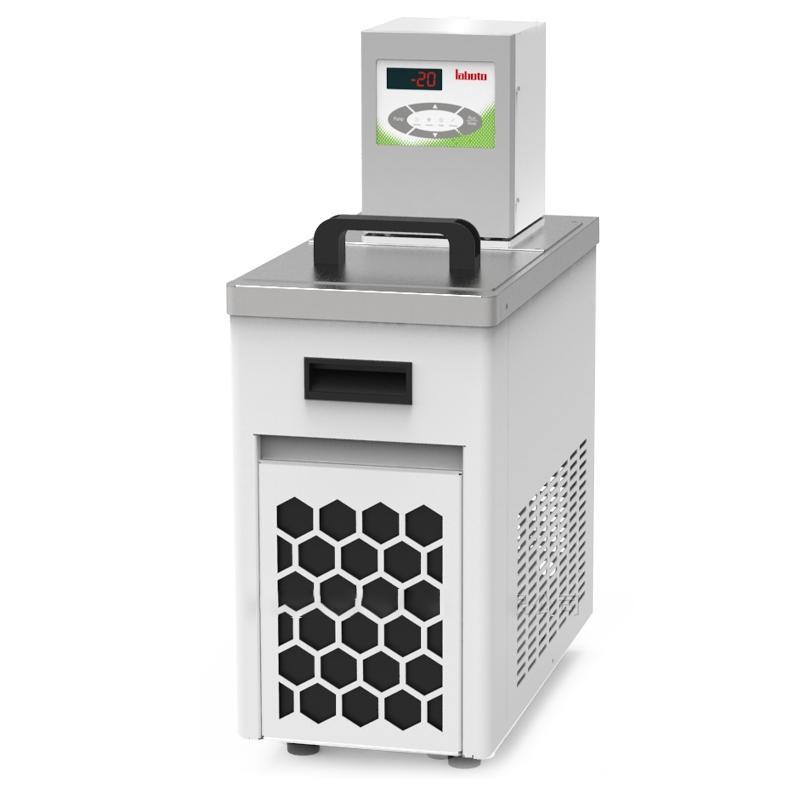

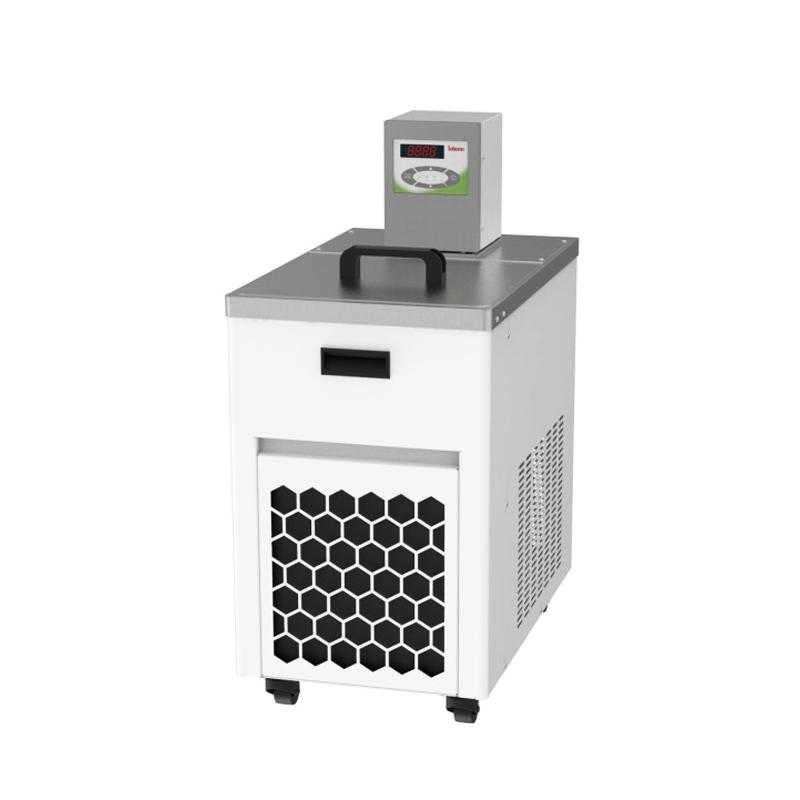

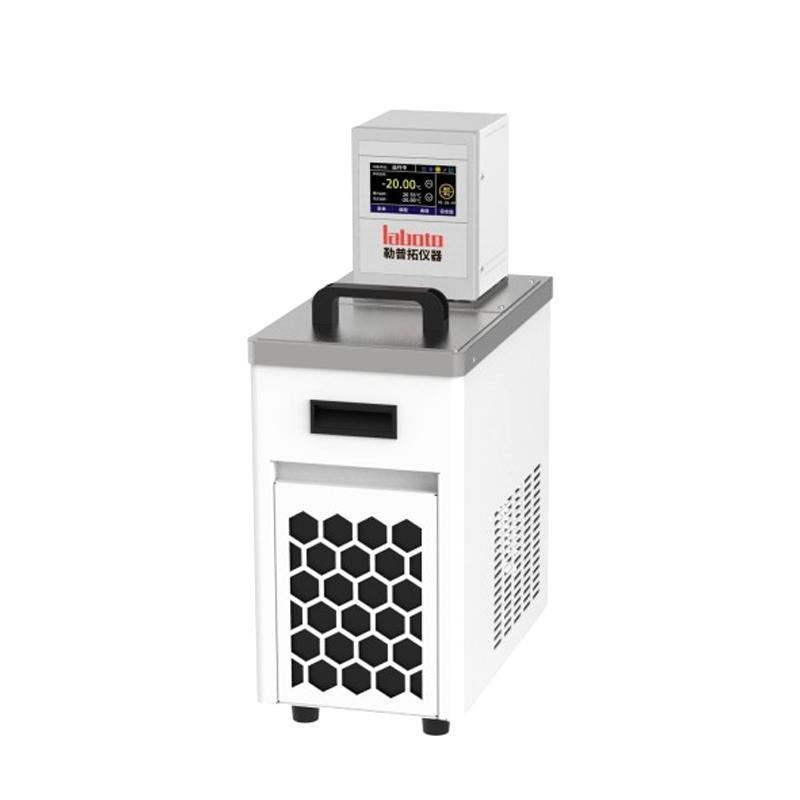

The CC-2027E high and low temperature thermostatic circulator integrates heating and cooling functions. The water bath body is made of all stainless steel, and the outside is insulated by thermal insulation cotton, which provides an economical solution for the sample to be placed directly in the water bath for thermostatic test. It is suitable for temperature control, material testing, quality control, analysis of samples, etc., using environmentally friendly natural refrigeration, with liquid level protection and over-temperature protection functions.
Features
Professional proportional refrigeration control technology, Compressor without 100% output, more energy saving
2. CIT timely cooling technology can directly start Compressor cooling even at high temperatures
3. Low liquid level protection to prevent dry burning
4. Optional multi-segment programmable controller, users can implement multi-segment program control
5. Equipped with external temperature sensor interface, can accurately control the external material temperature of the bath
6. Domestic circulation, external circulation, maintenance-free pressure/suction pump
7. Multiple safety protection: low liquid level protection, light and sound can be reminded at the same time when alarming
8. High-performance stainless steel and high-performance plastics are used for parts that come into contact with liquids or steam
9. Pt100 temperature sensor for two-point and multi-point temperature calibrating
10. Removable trend dust net cover, maintenance is very convenient
11. The buzzer can be set to silent or sound
12. Multiple operation modes are available, and accidental power failure can be automatically restored
13. Optional intelligent control function: multiple interfaces for remote communication
14. Optional analog signal input, can be used for external smart devices to control instruments
Principle
The thermostatic circulator adopts intelligent PID temperature Control mode, real-time monitoring of temperature through Pt100 temperature sensor, combined with professional PID TAC control technology, Cascade cascade control technology and bath temperature difference lock control technology implementation precision temperature control. Equipped with pressure/suction pump for internal and external circulation, while stirring the bath liquid in both horizontal and vertical directions, so that the temperature distribution is more uniform.
Applications
Sample temperature control, material testing, quality control, analysis
Standards
Safety level III/FL can use flammability liquids, DIN 12876
Steps
1. Select whether to connect the external circulation adapter and the external temperature sensor according to the model
2. Set the required temperature parameters
Select the operation mode (Mode 1, Mode 2 or Mode 3)
4. Start the device for thermostatic control
5. Optional multi-stage program control to achieve regular heating, cooling, thermostatic and other functions
Notice
• Permissible Ambient Temperature: 5~ 32 ℃
• Allowable relative humidity: 80%
• Power supply voltage: 200~ 230VAC/50Hz
• Instrument fixing method is Floor-Standing
• Pay attention to the liquid level protection function to prevent dry burning
• Regularly clean the removable trend dust net cover
• Choose the appropriate operation mode according to the actual needs
