Adopt proportional refrigeration and PID control technology, temperature control accuracy of 0.05K, support 30 program settings, equipped with maintenance-free pressure pump and multiple Safety protection system, working noise is less than 45 decibels.
Category : Thermostatic Bath
Brand : labtop
SKU : NB030834
Service :The delivery and service By NBCLab.Com

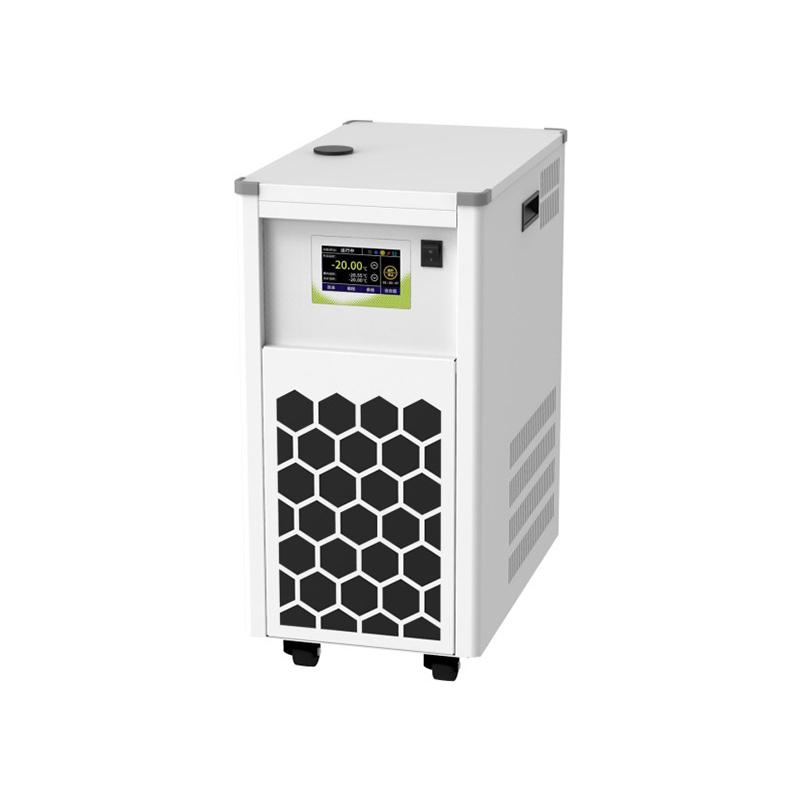

The LABTOP iCooler- 4009 + external circulation high and low temperature thermostatic circulator provides an economical and environmentally friendly high and low temperature thermostatic circulation solution for the laboratory. The compact structure design makes it small in shape and quiet when working, and can be used directly on the desktop and ventilated window. The external circulation Temperature control mode can be used in three ways: internal control, sample control, and tracking setting control to control the temperature of the sink, the temperature of the external material, and slope control respectively. The program control type supports 30-stage program control, which is convenient for multi-stage control such as heating, thermostatic, and cooling.
1. Touchscreen TFT display, touch operation, compact size 2. Combining proportional refrigeration and PID control technology, CIT technology can directly cool down even at high temperatures 3. Maintenance-free pressure/suction pump, resistant to fiber and metal particulate matter, long life, pump pressure and Flow rate automatically adapt to external load 4. Programmable control, can edit 30 programs to achieve liquid temperature heating, cooling, thermostatic and other combinations of control 5. The sealing water tank has an intuitive liquid level window and a protective overflow port is set 6. High-performance high-mass spare parts, stable and reliable system 7. Multiple safety protection: water shortage protection, temperature protection, water pressure protection, overheating and overcurrent protection 8. When alarming, the light and sound remind at the same time, the buzzer can be set to silent or audible, and the alarm code is directly displayed 9. Internal and external PT100 temperature sensor for single point and two point temperature calibrating 10. Multiple operation modes are available, and accidental power failure can be automatically restored 11. Optional intelligent control function: multiple interfaces (RS485, RS232), remote control can be realized through 0-10V or 4-20mA analog signal 12. Environmentally friendly refrigerant, non-toxic pollution 13. The maximum and minimum temperature settings of the machine can be limited
Adopt external circulation Temperature control mode and achieve precise temperature control through the combination of proportional refrigeration and PID control technology. CIT technology can directly cool down in high temperature environment, and the pressure/suction pump automatically adapts to the external load to ensure thermostatic liquid circulation.
Glass Reaction Kettle, Metal Reaction Kettle Jacket Temperature Control, Reaction Kettle Internal Material Temperature Control, External Therstatic Control Applications
DIN 12876
1. Select Temperature Control mode (Internal Control, Sample Control or Tracking Set Control) according to requirements 2. Parameter setting and program editing through Touchscreen 3. Start the device to run the thermostatic cycle 4. Monitor operating status and alarm prompts
• Permissible Ambient Temperature Range 5~ 32 ℃ • Allowable relative humidity not exceeding 80% • Pay attention to the water tank level window • Timely treatment of fault points when alarming • Power supply voltage in 200~ 230VAC/50Hz range
