Overview

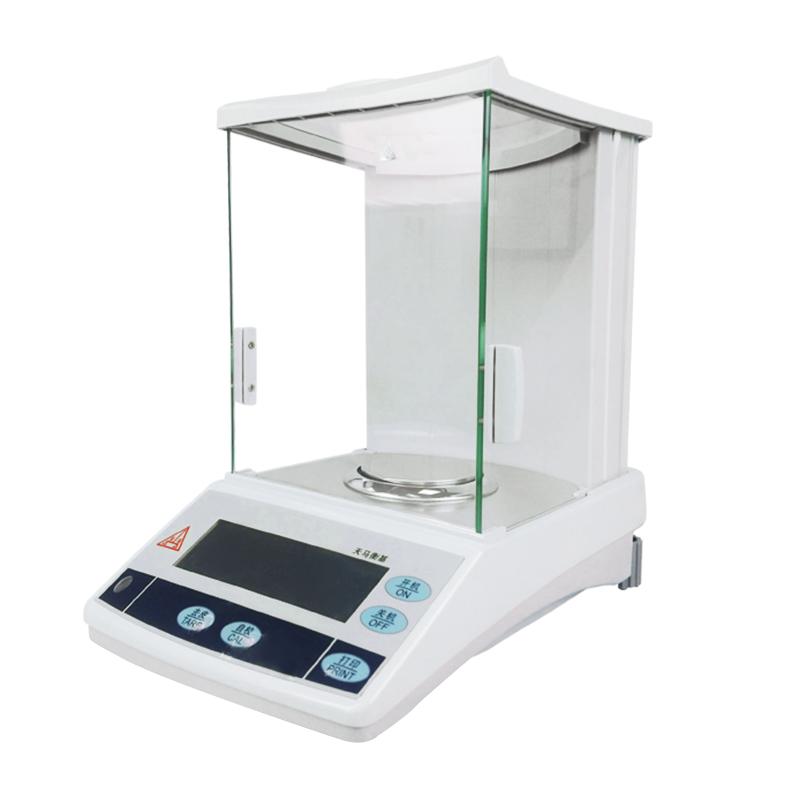

Tianma JA2003A 1mg Precision Balance belongs to JA-A series Precision Balance with a weighing accuracy of 1mg (0.001g). The Balance has the advantages of accurate weighing, fast and stable, simple operation and complete functions. It adopts an external weight Calibration method and is composed of a high-stability performance Sensor and a single-chip microcomputer.
Features
1. Single Modular Sensor
2. High Sensitivity Touch button
3. Blue large-screen LCD display for range indication
4. Built-in hook (optional)
5. Independent reset and peeling buttons for two-way communication
6. Weighing fast, weighing speed is several times faster than the general Balance
7. Easy to operate, mass unit conversion, you can choose a variety of internationally commonly used mass units provided by the software
8. High intelligence, can be peeled in the full range, automatic zero tracking adjustable, overload, underload display, automatic fault diagnosis Sensor overload protection
9. With a variety of functions such as printing function to choose from
10. Level 4 shockproof
11. Equipped with RS232 interface module, which can be connected to the printer
Principle
The Precision Balance is composed of a high stable performance Sensor and a single chip microcomputer. The weight signal is detected by the Sensor, and the weighing result is displayed after being processed by the single chip microcomputer.
Applications
Industry, agriculture, commerce, schools, scientific research, etc
Standards
Accuracy class: II
Steps
Step 1 Connect the power supply
Step 2 Place items for weighing
3. Read the display data
4. Use the clearing and peeling functions (if required)
5. Connect the printer through the RS232 interface (if necessary)
Notice
• Operating Conditions: 5~ 40 ℃ 50%~ 60% RH
• Power supply voltage:~ 220V +/- 10% 50/60Hz
• Use external weight to calibrate
• Pay attention to shock protection
• Avoid overloading
