Overview

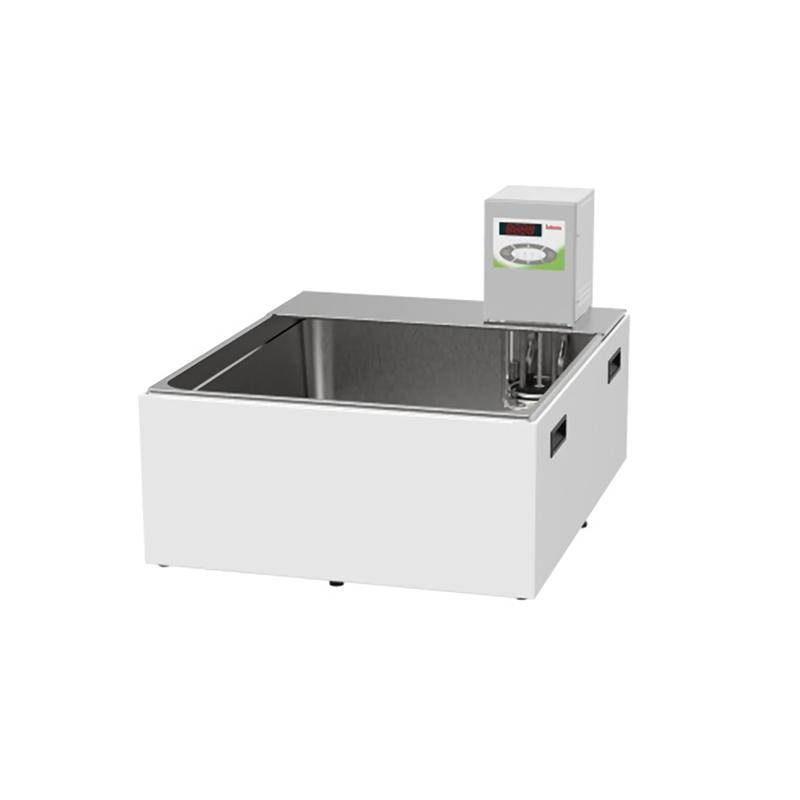

The OBC344EB is an open bath thermostatic circulator of the LABTOP brand. It features a stainless steel sink with a maximum Operating temperature of 200 ° C and a volume of 44L. The device achieves temperature control to room temperature by chilling down the coil and external circulating water. It provides an economical thermostatic test scheme and supports the option of external temperature control and circulating applications. It is suitable for temperature control, material testing, quality control and splitting of samples. It uses environmentally friendly natural refrigerants with liquid level protection and over-temperature protection. It meets Safety level III/FL. It can use flammability liquids and meets DIN 12876 standard.
Features
1. Low liquid level protection to prevent dry burning
2. Hardware over-temperature protection, the user can set the protection temperature through the knob, and still avoid dry burning when the equipment program fails, in line with DIN12876 standard level III, flammability bath liquid can be used
3. Maintenance-free pressure/suction pump, pump pressure and Flow rate automatically adapt to external load
4. Optional multi-stage programmable controller, supports regular heating, cooling, thermostatic, slope and various time settings, the maximum running time of each program is 999 hours
5. Equipped with external temperature sensor interface, optional mobile external temperature sensor, combined with PIDTAC control technology, Cascade cascade control technology and bath internal and external temperature lock control technology, precise control of bath external material temperature
6. Pt100 temperature sensor, support single point, two point and multi point temperature calibrating
7. Liquid or steam contact parts are made of high-performance stainless steel and high-performance plastics
8. Optional related accessories to form different internal and external applications
9. The buzzer can be set to silent or audible
10. Multiple operation modes are optional, and accidental power failure can be automatically restored: Mode 1 (power-on equipment stops after power failure, setting value can be changed), Mode 2 (power-on automatic operation after power failure, setting value can be changed), Mode 3 (power-on automatic operation after power failure, setting value cannot be changed)
11. The device serial number can be queried through the software
12. Optional intelligent control functions: a variety of interfaces (RS485, RS232) to achieve remote communication and control equipment start and stop
13. Optional normally open and normally closed 2 external contact points, can be connected to external alarms
14. Optional set of 12V switch Output signal for controlling external solenoid valve
15. An optional set of 5V external input switch signals can be used for external smart devices to control the start and stop of the instrument
16. Optional 0-10V or 4-20mA analog signal input, can be used for external smart devices to control instrument start and stop
Principle
The OBC344EB open bath thermostatic circulator enables precise temperature regulation with intelligent PID control technology and a Pt100 temperature sensor. The device uses a chill down coil and external circulating water to control the temperature to room temperature, supporting external temperature control applications. Optional external circulation adapter and external temperature sensor PT100 expand external circulation and temperature control capabilities.
Applications
Sample temperature control, material testing, quality control, analysis
Steps
1. Connect the power supply to ensure that the Ambient Temperature is within the range of 5~ 32 ℃
2. Set the operation mode as needed (mode 1, mode 2 or mode 3)
3. Use the knob to set the overtemperature protection temperature
4. Optional external temperature sensor or accessories for external temperature control and circulation application
5. Start the device, monitor the temperature through the LED display, resolution 0.1 ℃
6. Optional Remote Communication interface control equipment start and stop
7. The equipment supports continuous operation and can automatically resume operation after an unexpected power failure
Notice
* Ensure Ambient Temperature in the range of 5~ 32 ℃, relative humidity does not exceed 80%
* Check the liquid level before use to avoid dry burning. The equipment has a low liquid level protection function
* Set hardware overtemperature protection to prevent accidents when the device program fails
* Power supply voltage 200~ 230VAC/50Hz to avoid mismatch
* Optional accessories need to be installed correctly to ensure external temperature control and cycle application safety
* Equipment meets Safety level III/FL and can use flammability liquids, subject to compliance with relevant safety regulations
Regularly check pumps and temperature sensors to ensure automatic adaptation to external loads and accurate temperature control
