Overview

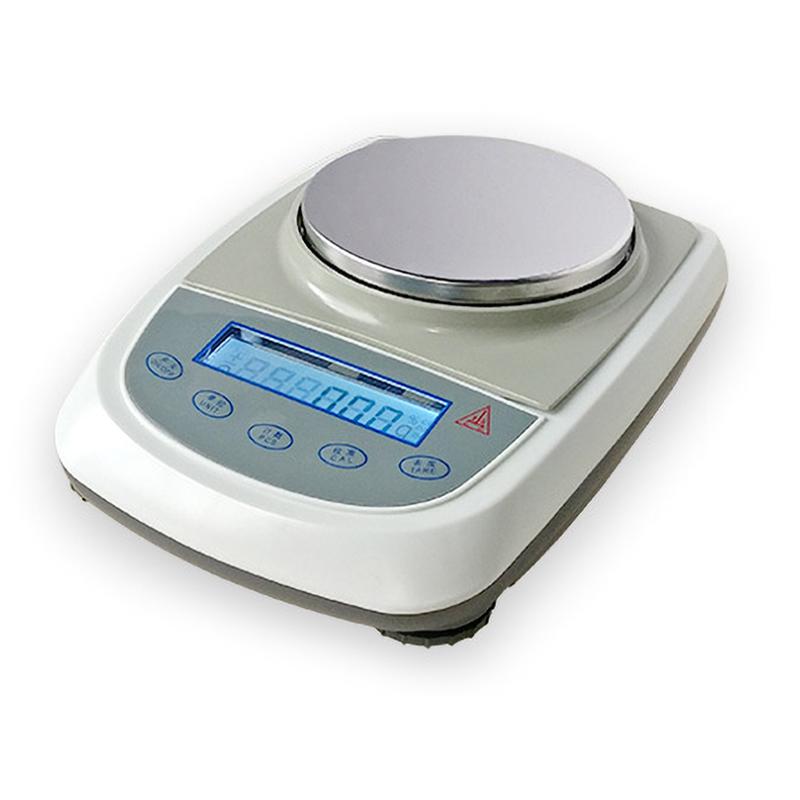

Tianma TD6001A Electronic Balance is one of the TD series Analytical Balance, with an accuracy of 0.1g and a weighing range of 0~ 600g. The product uses a large LCD screen to clearly display measurement readings and is equipped with an RS-232 interface, which can be connected to printers and PCs. It has the regular functions of Smart Balance and a practical counting function, which is convenient for users to operate.
Features
1. It belongs to TD-A series Electronic Balance
2. Equipped with test weight
3. With counting function (point function), it is convenient to use as a counting Balance
4. With RS-232 serial port, it can be connected to a printer or computer
5. With peeling, weighing Automatic calibration, automatic clearing, zero automatic tracking and fault display and other functions
6. Sensor combined with microcomputer
Principle
Tianma TD6001A Electronic Balance realizes accurate weighing through the combination of Sensor and microcomputer, Sensor detects weight signal, microcomputer processes data and displays it on the large LCD screen, and supports Automatic calibration, clearing and tracking functions to ensure measurement Stability and accuracy.
Applications
Laboratory, industrial weighing, counting application, quality control, education and research
Steps
1. Place the Balance on the stable plane and connect the Power Adapter
2. After booting, wait for stabilization. Automatic calibration or external test weight calibrating
3. Place the item to be weighed on the pan and read the display data
4. Use peeling function to remove container weight
5. If you need to count, switch to the counting mode operation
6. Connect the printer or PC through RS-232 interface for data output
Notice
• Ensure that the Working Ambient Temperature is within the range of 5~ 40 ℃ and Humidity 50%~ 60% RH
• calibrate before use to ensure accuracy
• Avoid overload weighing, Capacity does not exceed 600g
• Keep the pan clean to prevent foreign objects from affecting the measurement
• Power Adapter input is~ 220V +/- 10% 50HZ, output DC6V-300mA, do not connect incorrectly
• Net weight of the instrument 2000g, pay attention to safety when handling
