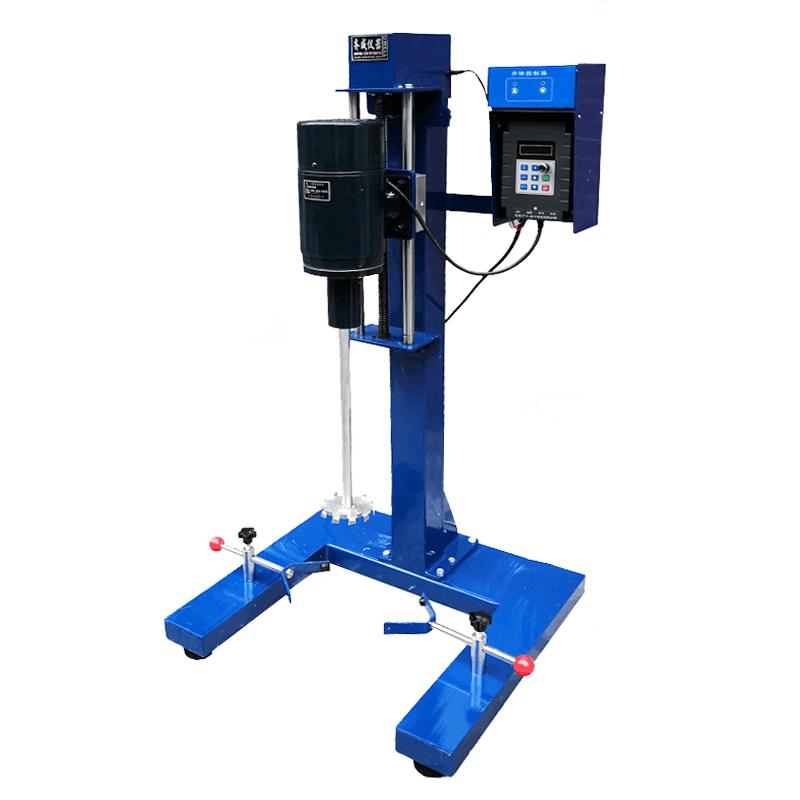

QIWEI JFS-1100S Electric Lifting Variable Frequency Disperser Variable Frequency Motor Electric Lifting

Name: QIWEI JFS-1100S Electric Lifting Variable Frequency Disperser Variable Frequency Motor Electric Lifting
Brand: QiWei
SKU: NB031271
Price: 836.0 USD
Availability: InStock

$ 836.00Ex works

Adopt electric lifting system and frequency conversion speed regulation technology, Speed range 60~ 6900rpm, Power 1100W, equipped with dispersed impeller and sand grinding blades, can adapt to different impeller diaMeters, support chilling down water circulation temperature control.

Model

JFS-1100S

Get Quote

Category : Disperser

Brand : QiWei

SKU : NB031271

Service :The delivery and service By NBCLab.Com

Overview

Electric lift variable frequency Disperser is a new type of environmental protection laboratory equipment of QIWEI brand JFS-1100S model, which integrates stirring, sand grinding and dispersion functions. The equipment adopts frequency conversion motor, which has the advantages of small size, low noise, no commutation interference, no carbon brush mechanical abrasion, etc. The number directly displays the Rotation speed of the rotating shaft, and is equipped with a dispersion impeller and a sand grinding blades, which can adapt to different experimental needs and provide data support for large-scale production.

Features

1. Adopt electric lifting system for easy lifting 2. Adopt a new type of variable frequency motor and realize stepless speed regulation through smart variable frequency controller 3. Application of digital PID technology, high control accuracy, 4 digital tube directly display spindle Rotation speed 4. Disperse impeller and sand grinding blades are directly connected to the shaft with screws 5. The barrel is fixed by the left and right grippers, and the cylinder body adopts a jacket structure, which can be processed from stainless steel by chilling down water

Principle

The rotating shaft swirl/spin is driven by the frequency conversion motor, and the smart frequency conversion controller is used to realize stepless speed regulation. Digital PID technology ensures High Accuracy control and directly displays the spindle Rotation speed. The dispersion impeller and the sand grinding blades are connected to the rotating shaft to stir, disperse or sand the material during the swirl/spin process. The jacketed cylinder can control the temperature by chilling down water.

Applications

Laboratory mixing, sand grinding, dispersion experiments

Motor Power
1100W
Speed Range
60~6900rpm
Dispersing disc diameter
Φ50mm；Φ60mm；Φ80mm；Φ100mm
Lift Travel
320mm
Power supply Voltage
220V 50HZ
Dimension
580*600*1150mm
Host weight
About 75kg
Sand disc
Φ60mm

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
