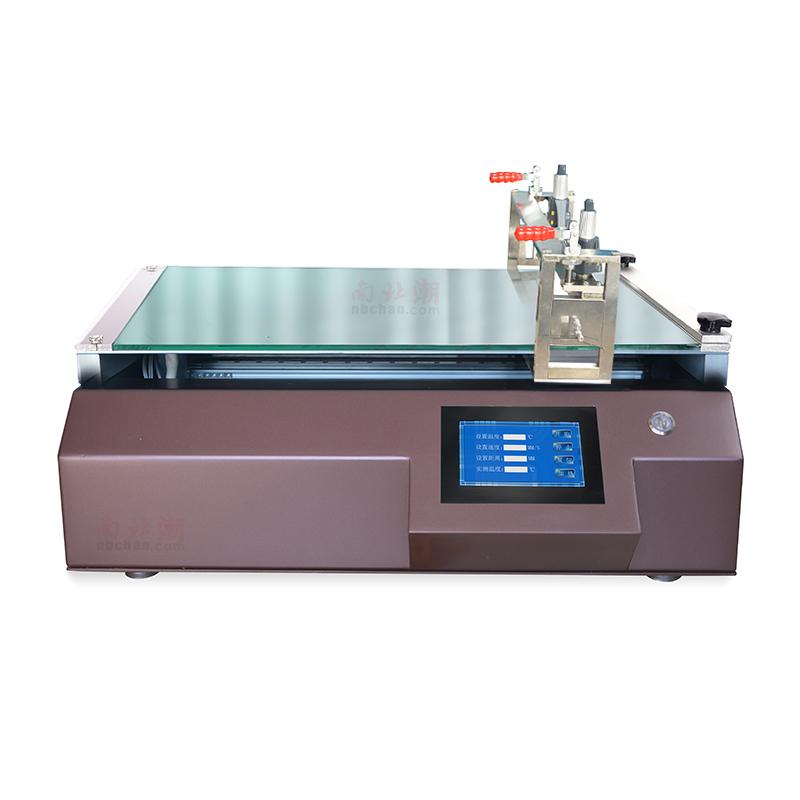

China TBJ-B1 Automatic Film Applicator Laboratory Small Coater Blade Coating accuracy +/- 0.003mm

Name: China TBJ-B1 Automatic Film Applicator Laboratory Small Coater Blade Coating accuracy +/- 0.003mm
Brand: zy
SKU: NB031401
Price: 1985.0 USD
Availability: InStock

$ 1985.00Ex works

Using imported accessories, Blade Coating accuracy of +/- 0.003mm, coating speed 5~ 200mm/s adjustable, through the control of speed and stable pressure to ensure uniform Spreader, improve repRoducibility.

Model

Get Quote

Category : Automatic Film Applicator

Brand : zy

SKU : NB031401

Service :The delivery and service By NBCLab.Com

Overview

TBJ-B1 Automatic Film Applicator is a small laboratory Spreader device, made with imported accessories, with excellent cost performance. The device ensures the uniformity and smoothness of the Spreader coating by precisely controlling the speed and stable pressure of the Spreader, solves the problem of artificial film inconsistency, and significantly improves the film reproducibility.

Features

1. Using imported accessories, excellent cost performance 2. Touchscreen control, easy to operate 3. Infinitely variable speed control, coating speed 5~ 200mm/s adjustable 4. High Accuracy Blade Coating, accuracy up to +/- 0.003mm 5. Spreader thickness range 0~ 10mm adjustable 6.The effective coating area 400 * 300mm 7.304 stainless steel drawdown blade, strong durability

Principle

The device achieves uniform Spreader by precisely controlling the speed of the Spreader and the steady pressure applied to the film applicator. The drawdown blade moves at a set speed on the Glass Spreader stage. Spreader a precise wet-film on the substrate to ensure the conformity and reproducibility of the coating.

Applications

Multinational enterprise R & D institutions, domestic and foreign university laboratories, scientific research institutions

coating method
Blade Coating
Drawdown blade Type
Integrated drawdown blade
Blade Coating accuracy
±0.003mm
Blade Coating Thickness Range
0~ 10Mm adjustable
coating speed
5~ 200mm/s (< 5mm/s can be customized)
Coating Size
300 * 400Mm (can be customized)
Drawdown blade material
304 stainless steel
Drawdown blade length
400mm
Host power supply
220V 50Hz
Dimension
626*410*520mm
Net weight
45kg
speed control
Infinitely variable speed
Coating table material
Glass plate
Control mode
Touchscreen
Optional Accessories
Leakage tank, substrate fixture, trimming horizontal height support foot device, Glass plate, silicone pad and weight (for applications with uneven thickness of Spreader substrate), application width control baffle
customizable function
Automatic lame plating device, UV curing device, automatic inking system, air knife drying, remote control, upper infrared heating, double extrusion Spreader

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
