Overview

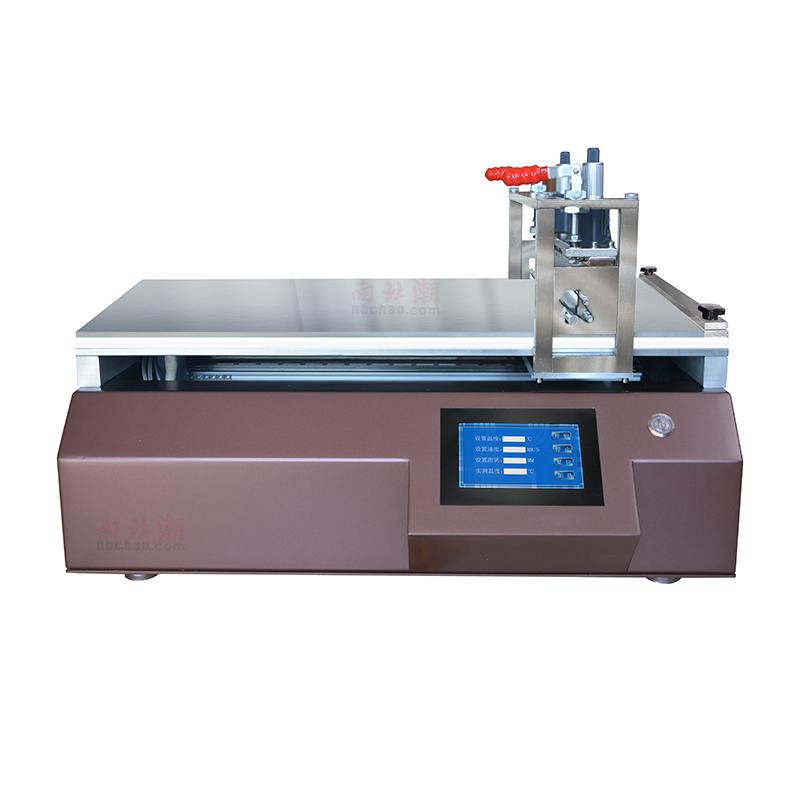

TBJ-X1 Automatic Film Applicator is a small Lab Film Applicator for experiments, manufactured with imported accessories, at an affordable price. The device ensures the uniformity and smoothness of the Spreader coating by controlling the speed and stable pressure of the Spreader, solving the problem of inconsistent artificial film, and is especially suitable for application scenarios that require accurate Spreader wet-film.
Features
1. Using imported parts, reliable mass
2. Excellent price and high cost performance
3. Spreader accuracy up to +/- 0.003mm
4. Spreader thickness range 0~ 10mm adjustable
5. Adjustable coating speed 5~ 200mm/s
6. Infinitely variable speed control
7. Touchscreen control, easy to operate
8. Vacuum chuck fixed substrate, Stability
9. A variety of functional configurations can be customized
Principle
Automatic Film Applicator achieves uniform Spreader by precisely controlling the speed of the Spreader and the steady pressure applied to the film applicator. Blade Coating is used to precisely film on a Vacuum chuck-fixed substrate to ensure the conformity and reproducibility of the Spreader.
Applications
Multinational enterprise R & D institutions, domestic and foreign universities, scientific research institutions
Steps
1. Prepare substrate and place on Vacuum chuck board
2. Set Spreader parameters (Speed, Travel, etc.) through Touchscreen
3. Start the Device for Auto Spreader
4. Remove the sample after completing the Spreader
Notice
• Make sure the equipment is placed horizontally before use
• Select the appropriate Spreader parameters according to the thickness of the substrate
• Regularly clean drawdown blades and Vacuum chuck holes
• Customized functions need to confirm technical parameters in advance
• Pay attention to safety protection during operation
