Overview

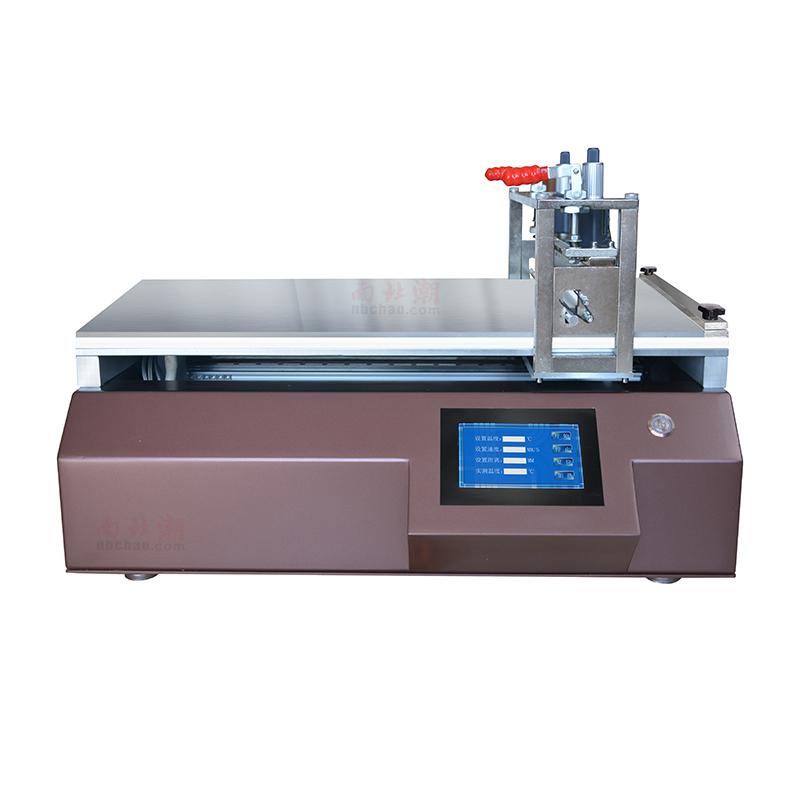

TBJ-B3 Automatic Film Applicator is a small Spreader test equipment for experiments. It adopts imported accessories and is cheap. It is favored by multinational R & D institutions, universities and scientific research institutions at home and abroad. The equipment ensures the uniformity and smoothness of Spreader coating by controlling the speed and stable pressure, solves the problem of artificial film inconsistency, and significantly improves the reproducibility of the film.
Features
1. Using imported accessories, the price is good and cheap
2. Blade Coating accuracy up to +/- 0.003mm
3. coating speed range 5~ 200mm/s, support stepless speed
4. Heating Temperature range RT +~ 180 ℃, Temperature Uniformity +/- 3 ℃
5. Support Touchscreen control, easy to operate
6. Optional accessories and customization
7. effective coating area 400 * 300mm, can be customized
8. Spreader thickness range 0~ 10mm adjustable
Principle
The Automatic Film Applicator achieves accurate Spreader by controlling the speed of the Spreader and the steady pressure applied to the film applicator. The device uses Blade Coating, a mechanical fixture to fix the substrate, a stepless transmission system to adjust the coating speed, and an aluminum Platen Heating system to ensure a uniform wet-film Spreader on different substrates.
Applications
Multinational enterprise R & D institutions, domestic and foreign universities, scientific research institutions, laboratories Spreader testing
Steps
1. Set Spreader parameters (Speed, Travel, Temperature, etc.) through Touchscreen
2. Use mechanical fixtures to fix the substrate
3. Select the appropriate drawdown blade and adjust the Spreader thickness
4. Start the Device for Auto Spreader
5. Optional Accessories for auxiliary operation as needed
Notice
• The power supply of the equipment is 220V 50HZ, and it is necessary to ensure that the voltage matches
• Spreader thickness adjustment range 0~ 10mm, do not exceed the limit
• Heating temperature up to 180 ° C, pay attention to safety during operation
• Customized functions need to be confirmed in advance
• Check whether the components are firmly installed before use
