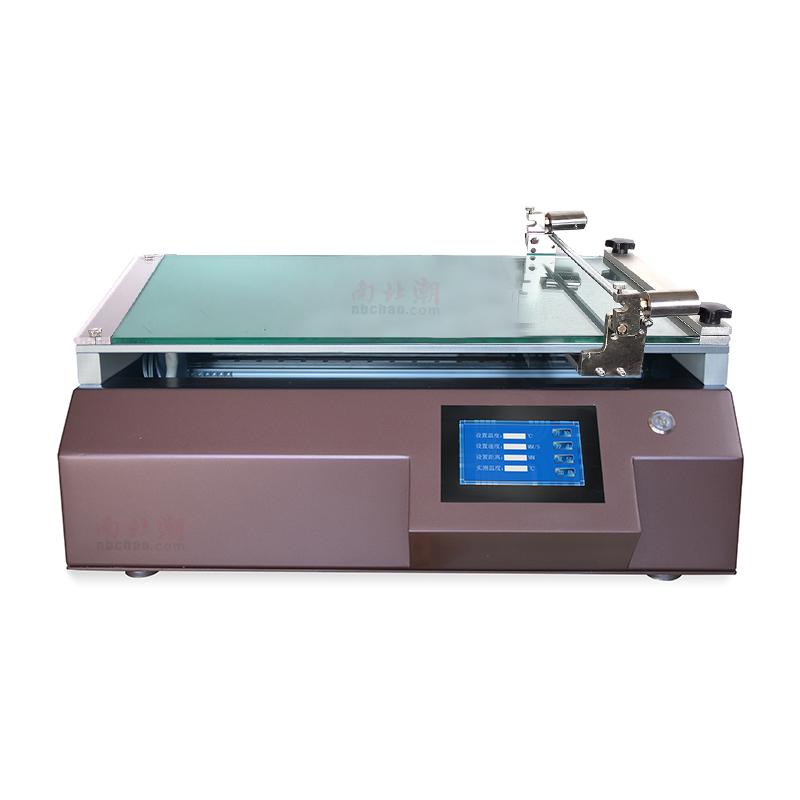

China TBJ-A1 Automatic Film Applicator bar Lab Film Applicator Accurate Spreader 5~ 200mm/s

Name: China TBJ-A1 Automatic Film Applicator bar Lab Film Applicator Accurate Spreader 5~ 200mm/s
Brand: zy
SKU: NB031410
Price: 1156.0 USD
Availability: InStock

$ 1156.00Ex works

Adopt bar coating method, thickness range 1~ 571.5μm, Spreader accuracy +/- 0.001mm, rate 5~ 200mm/s adjustable, effective coating area 400 * 300mm, support stepless speed change and a variety of customized functions.

Model

Get Quote

Category : Automatic Film Applicator

Brand : zy

SKU : NB031410

Service :The delivery and service By NBCLab.Com

Overview

The TBJ-A1 bar Lab Film Applicator is a newly upgraded product. It is carefully designed for Spreader accurate wet-film on different substrates, and can repeatedly and continuously prepare smooth, flat and flawless test samples. After the equipment was put into the market, it was favored by many familiar companies, R & D institutions, Universities & colleges.

Features

1. The coating method is bar Spreader, the thickness range is 1~ 571.5μm (the thickness of Spreader is determined according to the bar model) 2. Spreader accuracy up to +/- 0.001mm 3. The coating speed range is 5~ 200mm/s (< 5mm/s can be customized) 4. The effective coating area 400 * 300mm (can be customized) 5. Spreader Travel 1~ 400mm range of digital arbitrary setting 6. Substrate clamping method using mechanical fixture 7. Control mode is Touchscreen control 8. Speed control is infinitely variable 9. Glass base material

Principle

The device adopts bar coating method. Spreader the specified thickness of wet-film evenly on different substrates by precisely controlling coating speed and Travel. The substrate is stabilized by mechanical fixture, and the Touchscreen Control system realizes parameter setting and operation control.

Applications

Companies, Research Institutions, Universities & colleges

coating method
bar
meyer rod coating thickness Range
1-571.5 μm (Spreader thickness according to bar model)
meyer rod coating accuracy
±0.001mm
coating speed
5-200mm/s (< 5mm/s can be customized)
Coating Size
300 * 400Mm (Miscellaneous Size can be customized)
Spreader distance control
The number can be set arbitrarily within the Range of 1-400mm
Substrate clamping method
Mechanical fixture
Control mode
Touchscreen control
Host power supply
220V 50HZ
Dimension
650*410*520mm
Net weight
45kg
speed control
Infinitely variable speed
Bottom plate material
Glass
Optional Accessories
Leakage tank, substrate fixture, trimming horizontal height support foot device, Glass plate, silicone pad and weight (for applications with uneven thickness of Spreader substrate), application width control baffle
customizable function
Automatic lame plating device, UV curing device, automatic inking system, air knife drying, remote control, upper infrared heating, double extrusion Spreader

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
