Overview

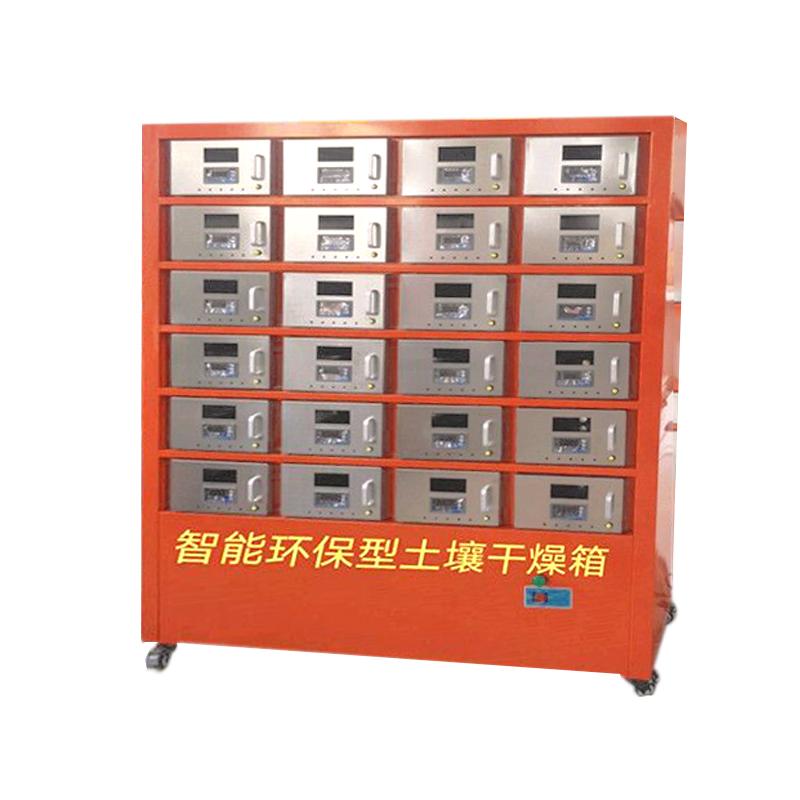

The BZ-TR-24H intelligent environmentally friendly soil sample drying oven is a professional equipment with air filtrating adsorption technology, independent sample room temperature control, unified exhaust gas recovery and purification functions. It realizes fast air drying by simulating indoor air flow, while ensuring that the exhaust gas after treatment meets environmental requirements and does not affect the laboratory environment.
Features
1. Use air disturbance technology to simulate indoor air flow and achieve rapid air drying.
2. Equipped with professional air filtrating and adsorption technology, with a total exhaust guide port to eliminate odor.
3. The exhaust gas is uniformly collected, filtrated adsorption and purified, and then discharged to ensure environmental protection.
4. Independent sample chamber design to prevent cross-contamination.
5. The sample chamber is made of stainless steel, which is resistant to chemical corrosion and easy to clean.
6. Built-in purification air source, integrated structure, quiet, small footprint, simple operation and easy maintenance.
7. Can be equipped with enamel or stainless steel tray, suitable for ordinary soil and high water content samples.
8. Each sample chamber independent heating module, thermostatic range accuracy improved, uniform temperature control without interference.
9. Optional 7-inch large LCD Touchscreen, easy to operate.
10. The sample room is equipped with a transparent observation room, which is convenient for observing the sample status at any time.
11. Each sample box is independently thermostatic.
12. Equipped with a high-power ultra-quiet air purification device to accelerate air circulation.
13. The sample room has a large space and can hold 2 to 3 kilograms of samples.
14. Heating material is infrared silicone module, uniform heating, good insulation, long life.
15. The bottom is equipped with a roller for easy movement.
Principle
The drying oven uses air disturbance technology to simulate indoor air flow, and accelerates air circulation through a built-in purification device. The air enters the sample chamber after filtrating adsorption treatment, and the independent heating module realizes thermostatic control. The exhaust gas generated by the sample air drying is collected uniformly, and then purified by filtrating adsorption and discharged to the outside through pipelines to ensure environmental protection.
Applications
Soil sample collection and treatment, industrial solid waste sampling, soil mass monitoring, soil environment monitoring
Standards
NY／T 1121.1-2006、HJ／T 20-1998、GB／T 32722-2016、HJ／T 166-2004
Steps
1. Place the device in a suitable location and connect it to the power supply.
2. Select and place samples on the sample chamber tray as required.
3. Set the temperature parameters of each sample chamber through the control panel.
4. Start the equipment, the air purification device starts to work, and the sample chamber is independently heated.
5. Monitor the sample status through a transparent observation room until drying is complete.
6. Turn off the equipment, remove the sample, and perform cleaning and maintenance.
Notice
• Power supply voltage is 220V, 50Hz to avoid overload.
• Ambient Temperature should be maintained at 20~ 40 ℃, Humidity 10%~ 80%.
• Avoid overloading when placing samples. Maximum capacity of a single sample chamber is 2-3 kg.
• Regularly check the air filtrating and adsorption device to ensure the purification effect.
• Use the bottom scroll wheel when moving the device to avoid violent vibration.
• Use appropriate tools when cleaning the sample chamber to keep the stainless steel surface clean.
• Pay attention to observe exhaust emissions during operation to ensure that the pipeline connection is firm.
