Overview

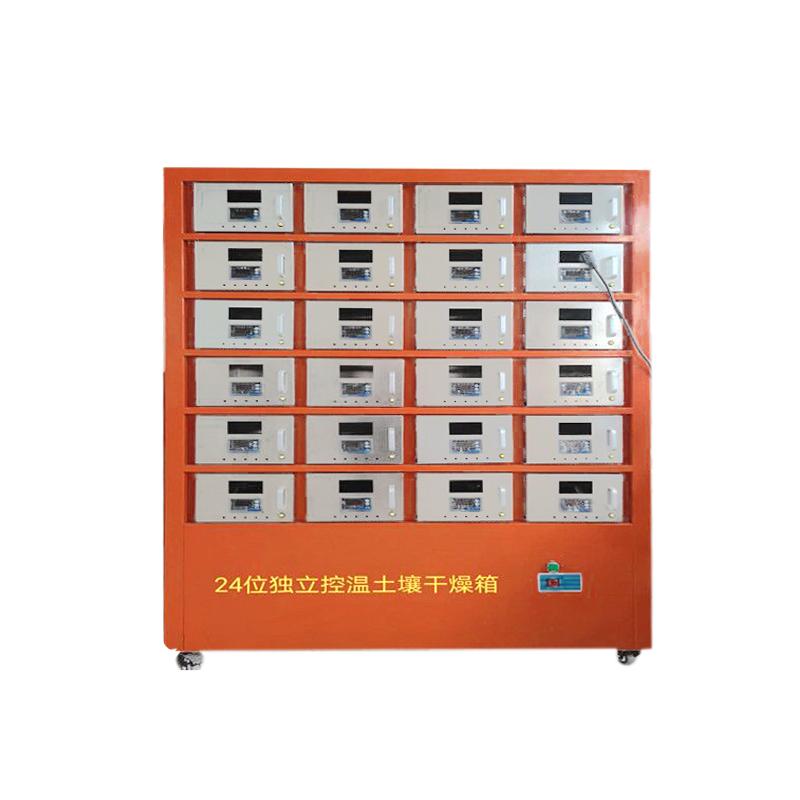

The 24-bit independent temperature-controlled soil drying oven adopts a simulated indoor air flow mode to quickly dry soil samples through the combination of external power supply and constant temperature. The equipment can simultaneously process samples with different temperature requirements, and each sample chamber has independent temperature control to effectively avoid cross-contamination. It is suitable for soil sample preparation at different temperatures, which has positive significance for sustainable agricultural development and organic agriculture.
Features
24 studios independent temperature control, temperature controller installed on the door of the independent studio, beautiful appearance, simple operation, suitable for different temperature soil sample preparatory requirements.
2. Adopt heating drying air technology to improve sample air drying efficiency.
3. The box is a separate 24-bit sample chamber, with samples separated to prevent cross-contamination.
4. Apply air disturbance technology to simulate indoor air flow to achieve rapid air drying.
5. The gas source is purified by filtrating, adsorption and 100-level purification to remove suspended particulate matter (PM), moisture and organic pollutants and prevent secondary cross-contamination.
6. The sample chamber is made of stainless steel, which avoids chemical corrosion and organic matter adsorption and is easy to clean.
7. The sample room is equipped with an observation window, which is convenient for observing the sample status at any time.
8. The sample room can be equipped with trays, allowing for direct placement of ordinary soil samples or high-moisture samples such as river sediment.
9. The bottom is equipped with a roller for easy movement.
Principle
The device simulates the indoor air flow mode through an external power air supply system combined with constant temperature control. The air enters the sample chamber after three levels of purification (filtrate, adsorption and 100-level purification), and the air disturbance technology is used to accelerate the sample air drying process. At the same time, independent temperature control ensures that different samples are drying at a suitable temperature.
Applications
Soil sample preparation, agricultural sustainability, organic agriculture
