Overview

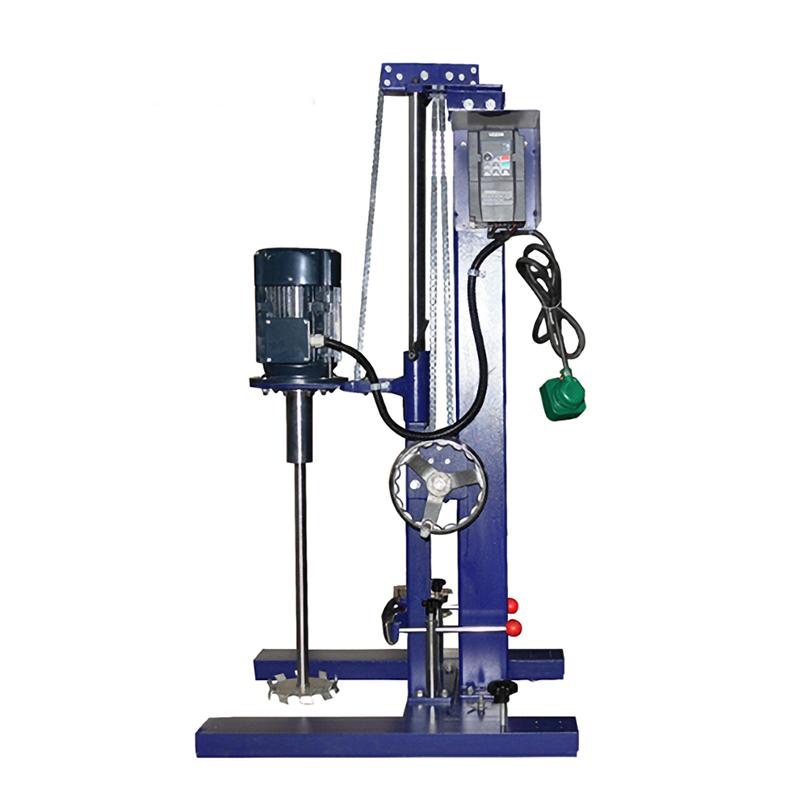

HUXI JSFF-750 sealing powder dispersion Stirrer is a professional dispersion mixing equipment with three-phase asynchronous motor, which has the characteristics of stable operation, low noise and long-term operation, and can easily meet a variety of high-demand dispersion and mixing experiments.
Features
1. Choose three-phase asynchronous motor, stable operation, less noise, long-term operation, safe and reliable design
2.The dispersion disc is made of good stainless steel with good corrosion resistance
3. The dispersion disc is connected with the hexagon screw and the dispersion shaft, which is easy and flexible to disassemble and assemble
4. Inverter stepless speed regulation, brushless motor, maintenance-free, no spark, no dust, higher safety performance
5. Ordinary bracket, handwheel chain lift, easier and more convenient operation
Principle
The device drives the dispersion shaft swirl/spin through a three-phase asynchronous motor, the dispersion disc shears, Impacts and disperses the powder material during the high-speed swirl/spin process, the frequency converter realizes stepless speed control Rotation speed, and the handwheel chain lifting mechanism can adjust the height of the dispersion disc to achieve efficient dispersion stirring effect.
Applications
Powder dispersion, material mixing
Standards
Rated voltage 220V/380V, Input Power 750W, Speed range 0~ 2880rpm, Processing capacity 10L, Maximum viscosity 30000cp
Steps
1. Select the appropriate dispersion disc according to the material characteristics
2. Install the dispersion disc to the dispersion shaft through the hexagon screw
3. Put the Material into the Mixing Tank
4. Adjust the height of the dispersion disc through the handwheel chain lifting mechanism
5. Set the appropriate Rotation speed parameters
6. Start the equipment for dispersion mixing operation
7. Turn off the power after completing the work and clean the equipment
Notice
• Before use, please confirm that the Power supply voltage matches the equipment Rated voltage
• Do not put your hands or Miscellaneous items into the mixing area while the equipment is running
• Regularly check whether the dispersion disc connecting screws are loose
• Please cut off the power supply when cleaning the equipment
• When not in use for a long time, it should be stored in a drying and ventilated place
Do not exceed the maximum viscosity limit of 30000cp
