Overview

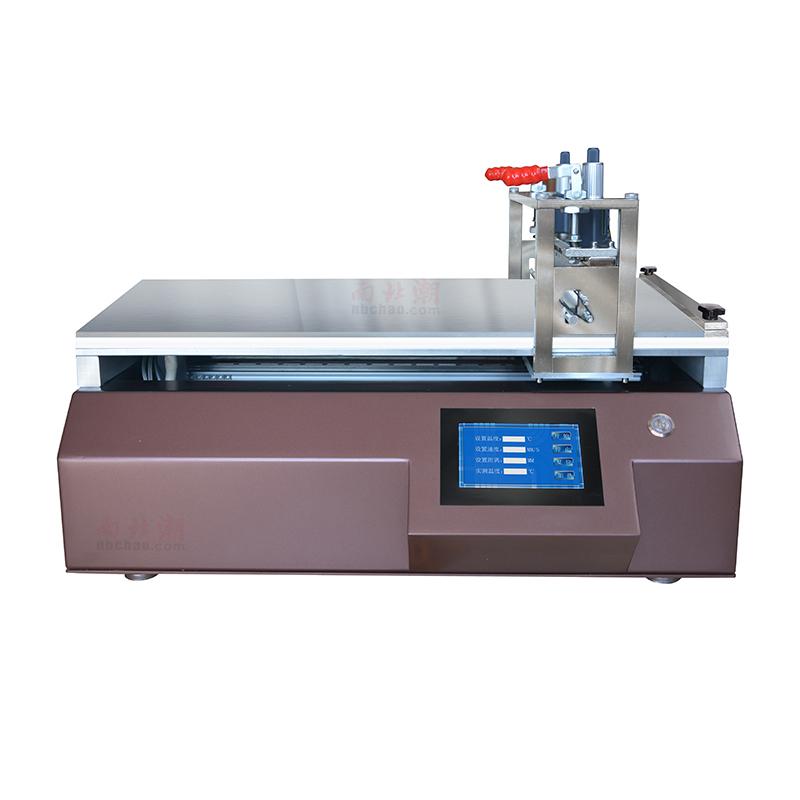

TBJ-X1 Automatic Film Applicator is an experimental small Lab Film Applicator with imported accessories and excellent cost performance. The device ensures the uniformity and smoothness of the Spreader coating by precisely controlling the speed and stable pressure of the Spreader, solves the problem of artificial film inconsistency, and significantly improves the film reproducibility.
Features
1. Using imported accessories, the price is good and cheap
2. Precise control of Spreader speed (5~ 200mm/s) and stable pressure
3. Blade Coating accuracy up to +/- 0.003mm
4. Spreader thickness range 0~ 10mm adjustable
5.The effective coating area 400 * 330mm (can be customized)
6. Touchscreen control, easy to operate
7. Vacuum chuck fixed substrate to ensure Spreader Stability
8. Infinitely variable speed control
9. Optional accessories and customization
Principle
Automatic Film Applicator achieves accurate Spreader by controlling the speed of the Spreader and the steady pressure applied to the film applicator. The device uses Vacuum chuck to fix the substrate, and the Spreader operation is carried out within the set Travel Range through a precision drawdown blade to ensure precise control of the thickness and uniformity of the Spreader.
Applications
Multinational enterprise R & D institutions, domestic and foreign universities, scientific research institutions
Steps
1. Spreader substrate and place in Vacuum chuck area
2. Set Spreader parameters (Speed, Travel, etc.) through Touchscreen
3. Start the Device for Auto Spreader
4. Remove the sample after completing the Spreader
Notice
• Make sure the equipment is placed horizontally before use
• Select the appropriate Spreader parameters according to the thickness of the substrate
• Regularly clean drawdown blades and Vacuum chuck holes
• Pay attention to safety during operation and avoid touching moving parts
• Customized functions need to confirm technical parameters in advance
