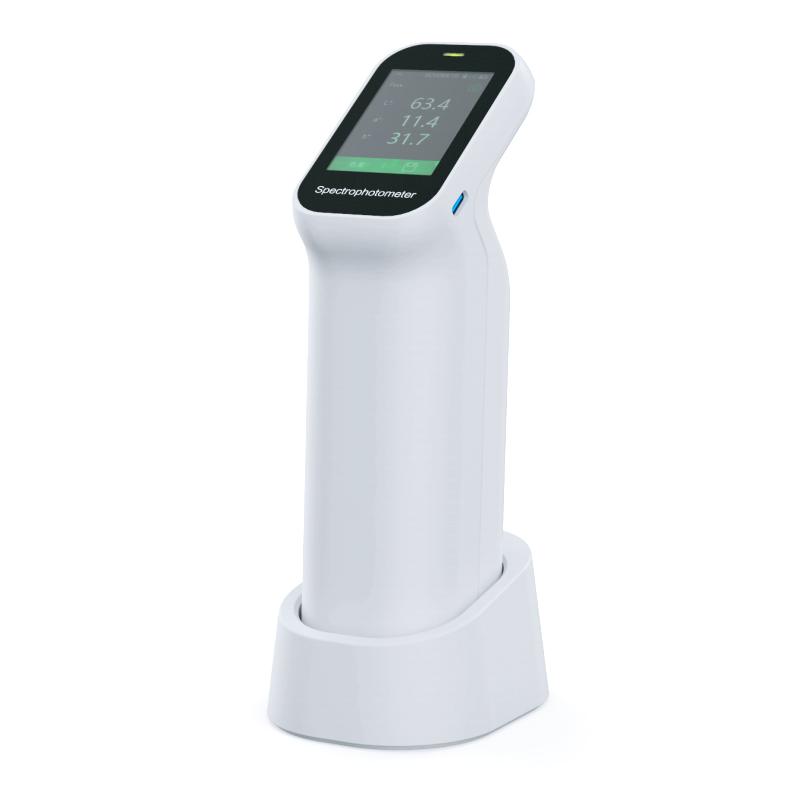

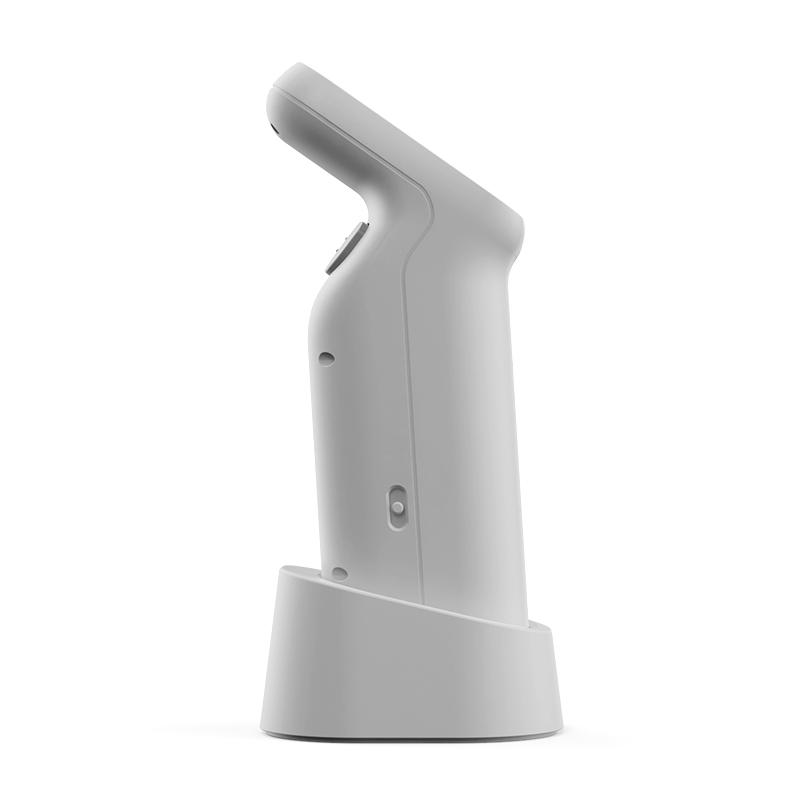

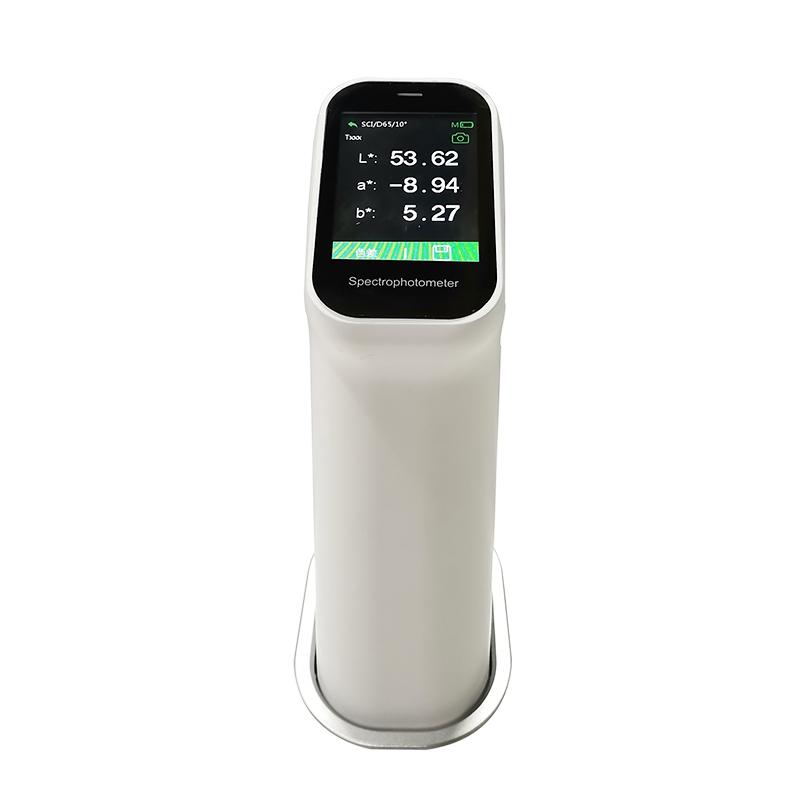

CHNSPEC CS-520 Portable ColoriMeter Inter-instrument Agreement Less than 0.2

Name: CHNSPEC CS-520 Portable ColoriMeter Inter-instrument Agreement Less than 0.2
Brand: CHNSpec
SKU: NB031916
Price: 2941.0 USD
Availability: InStock

$ 2941.00Ex works

Measurement accuracy of 0.01, support Automatic calibration, magnetic seat charging and touch operation, equipped with 11mm/6mm/1 * 3mm aperture switching and UV switching functions to achieve data conformity of multiple devices.

Model

Get Quote

Category : Color Spectrophotometer

Brand : CHNSpec

SKU : NB031916

Service :The delivery and service By NBCLab.Com

Overview

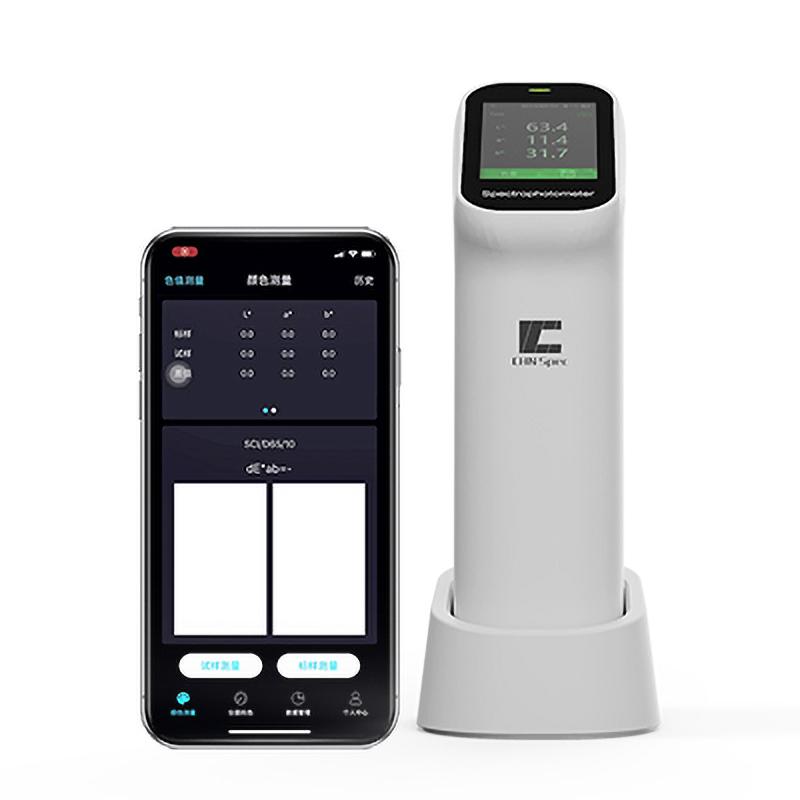

CS-520 Portable Colorimeter is a small and portable Colorimeter, less than 0.2 instrument Inter-Agreement, Measurement accuracy 0.01, to ensure the conformity of measurement data of multiple devices; Seamless connection with Android or IOS devices through Bluetooth, greatly expanding the application boundary of Color measuring instrument; Automatic calibration, magnetic seat charging, touch operation, aperture switching, UV switching... It will fully upgrade your color measuring experience.

Features

1. 29 Color measurement indicators, 26 evaluation Illuminants 2. Good Inter-instrument Agreement to ensure the conformity of measurement data of multiple devices 3. Automatic calibration technology 4. Multifunctional calibrated base 5. Connect to the app to expand more testing functions 6.11Mm/6mm/1 * 3mm size and small diameter switching 7. Include UV/exclude UV measurement 8. Camera viewfinder

Principle

Measurement conditions using d/8 (diffuse illumination, 8 ° direction reception), SCI (including specular reflection) and SCE (not including specular reflection) two modes, using LED Illuminant, through 256 pixel CMOS sensor to collect Light spectrum data, Wavelength range 400~ 700nm, wavelength interval 10nm, to achieve accurate Color measurement.

Applications

Plastics, paints, printing, food, Spinning & weaving, printing and dyeing

Steps

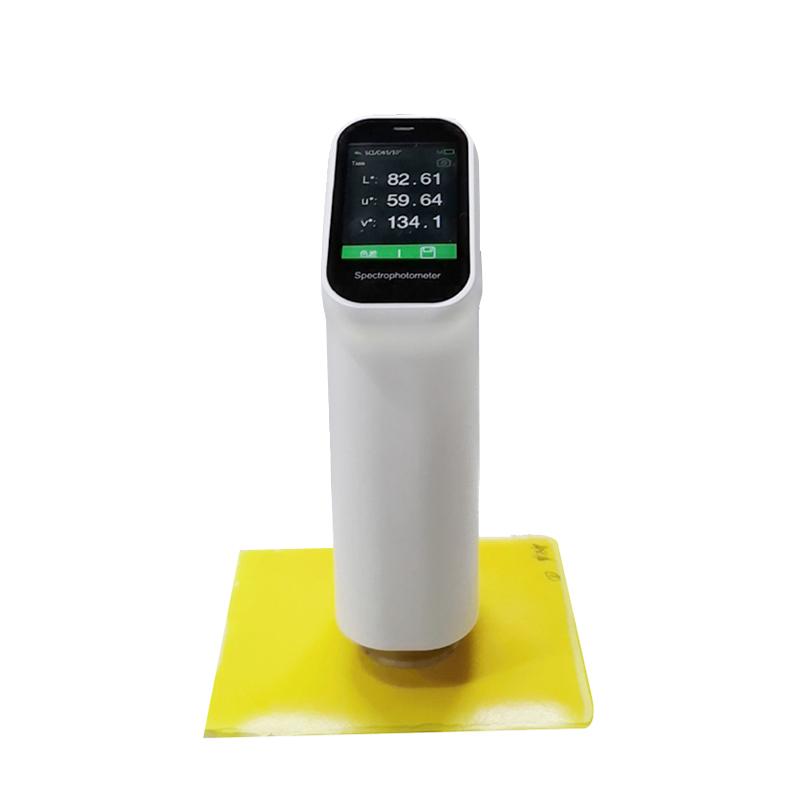

1. Automatic calibration of instrument on multi-function calibrated base 2. Locate the measurement area through camera viewing 3. Select the appropriate measurement caliber according to Sample size 4. Select UV inclusion or exclusion mode according to measurement needs 5. Touchscreen operation or connect to the app for measurement 6. The measurement data can be stored or transmitted through the app

Notice

• Automatic calibration before use • Select the appropriate measurement caliber according to Sample size • Samples containing fluorescent substances require UV Measurement mode Periodically return the instrument to the base for charging and calibrating • Ensure that the camera is accurately positioned in the measurement area during measurement

Measurement condition
D/8 (diffuse illumination, 8 ° direction reception) SCI (including specular reflection), SCE (excluding specular reflection)
Measurement light source
LED (Full Band EQ LED Illuminant)
Measurement parameter
Light spectrum reflectance, CIE-Lab, CIE-LCh, HunterLab, CIE-Luv, XYZ, Yxy, RGB, color difference (delta E * ab, delta E * cmc, delta E * 94, delta E * 00), whiteness, yellowness, Blackness, colour fastness, discoloration fastness, Tint, color density CMYK, Metamerism index, Munsell, hiding power, force
Illuminant condition
A,B,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,U35,DLF,NBF,TL83,TL84
Field of view
2°,10°
Sensor
256 pixel CMOS sensor
calibrate
Automatic sensor calibrating
wavelength interval
10nm
Wavelength Range
400-700nm
Reflectance measurement Range
0-200%
Reflectance resolution
0.01%
integrating sphere diameter
40mm
Repeatability
Chromatic value: MAX Maximum: dE * ab < 0.04 Mean value: dE * ab < 0.03 Standard Deviation value is less than Delta E * ab < 0.02; Light spectrum reflectance: Standard Deviation is less than 0.1%
Measurement/Lighting Aperture
MAV:Φ8mm/Φ11mm MAV:Φ4mm/Φ6mm MINI:1*3mm
Inter-instrument Agreement
Delta E * ab < 0.2 (BCRA ⅱ series of 13 color brick measurement average, MAV/SCI)
Measurement time
About 1 second
storage
APP mass storage
Battery capacity
Single charge can be continuously measured 8000 times, 3.7V/3000mAh
screen
IPS full color screen, 2.4 inches
interface
USB, Bluetooth
Illuminant life
10 years 1 million times
language
Simplified Chinese, English
Software support
Andriod,IOS,Windows
Measurement level
First Class Measurement Pass
Camera viewfinder positioning
Yes.
Dimension
L * W * H: 77.8mm * 53.2mm * 185.7mm
weight
Approx. 300g

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
