Overview

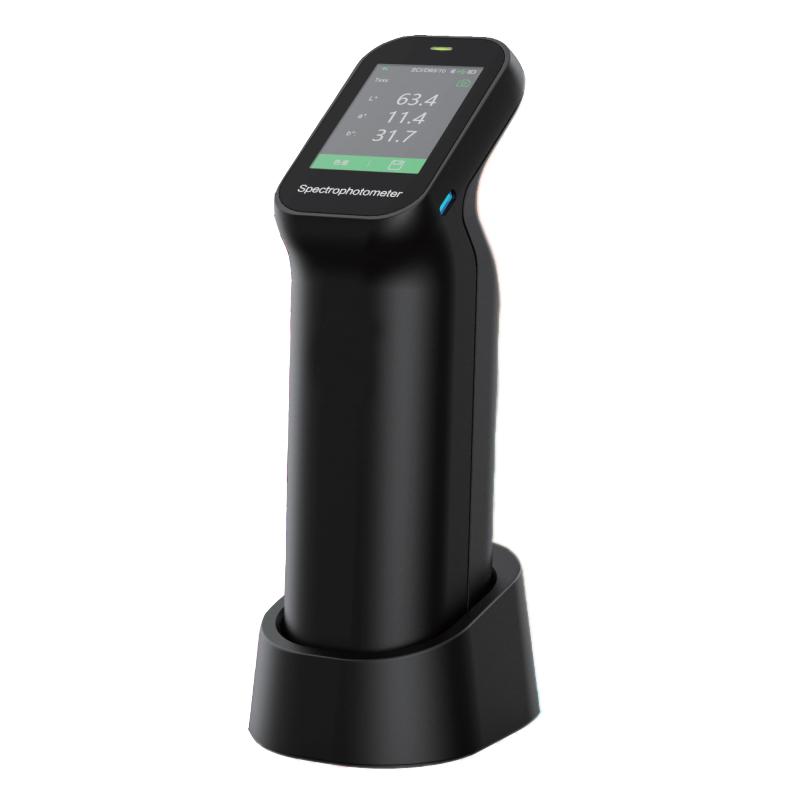

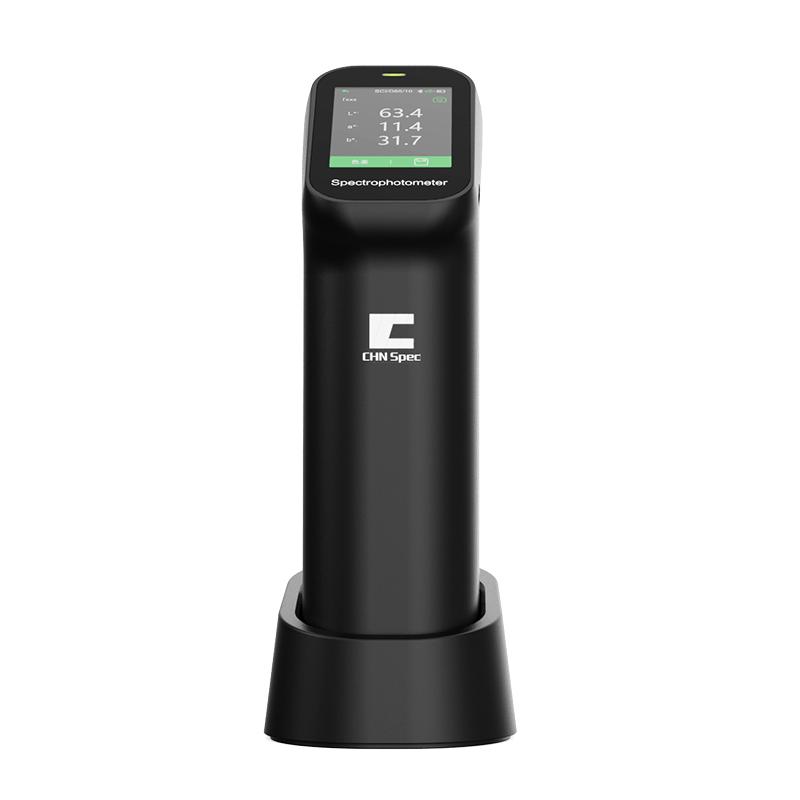

The CS-500 Portable Colorimeter is a small portable Colorimeter with an Inter-instrument Agreement of less than 0.3 to ensure the conformity of measurement data on multiple devices. Seamless connection with Android or IOS devices via Bluetooth, Automatic calibration, magnetic seat charging, touch operation and other functions fully upgrade the color measurement experience.
Features
1. 20 Color measurement indicators, 26 evaluation Illuminants
2. Good Inter-instrument Agreement to ensure the conformity of measurement data of multiple devices
3. Automatic calibration technology
4. Multifunctional calibrated base
5. Connect to the app to expand more testing functions
Principle
CS-500 uses D/8 Measurement conditions (Diffuse illumination, 8 ° direction reception), including specular reflected light (SCI), using LED Available Light Sources. Light spectrum reflectance measurement through 256 pixel CMOS sensor, wavelength interval 10nm, Wavelength range 400~ 700nm, integrating sphere size φ 40mm, to achieve accurate determination of Color parameters.
Applications

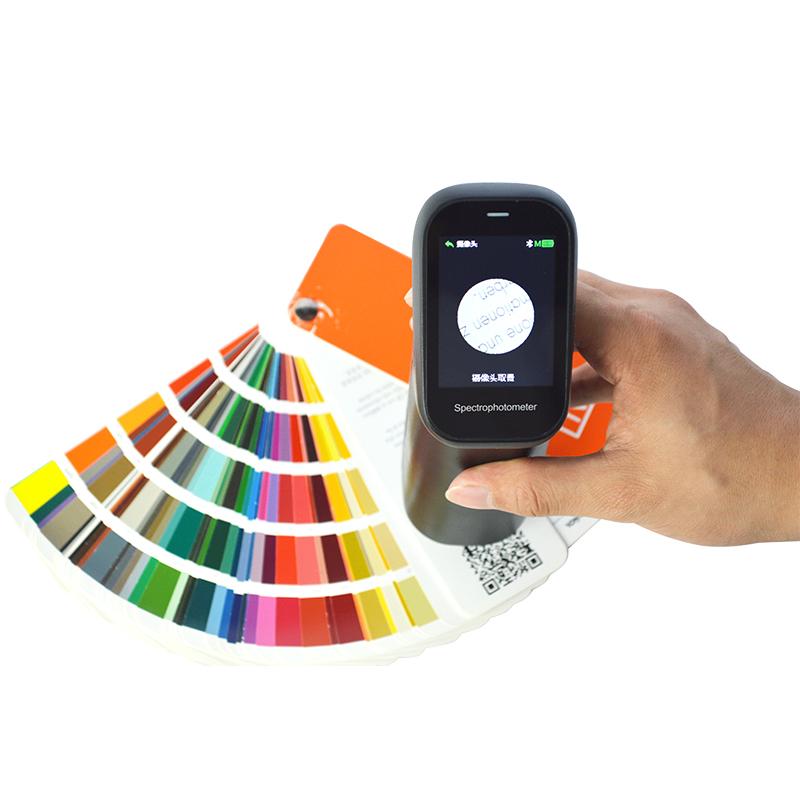

Plastics, paints, printing, food, Spinning & weaving, printing and dyeing
Standards
First Class Measurement Pass
Steps

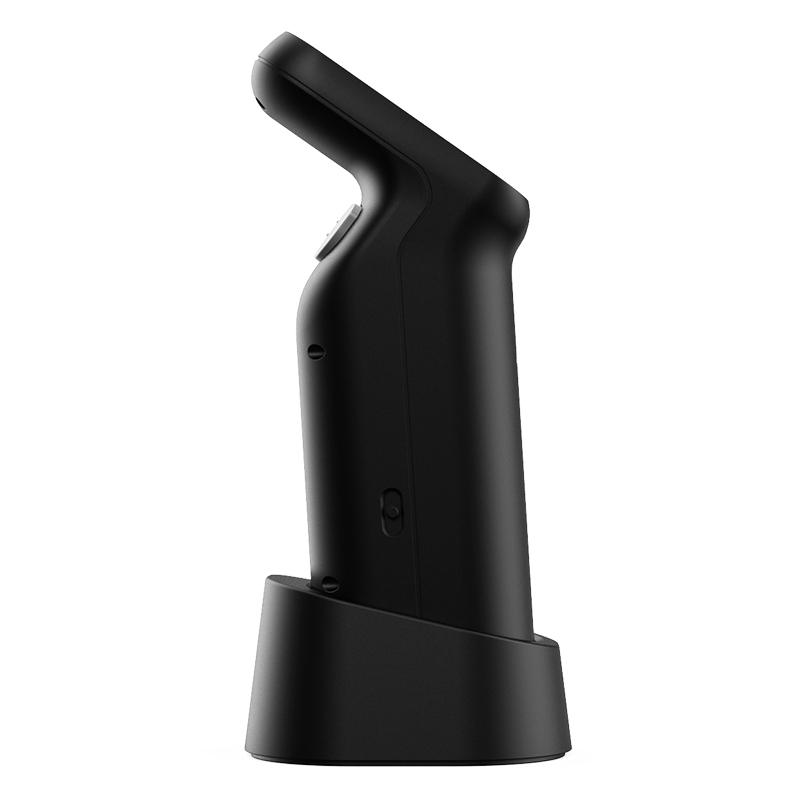

1. Automatic calibration and charging of instrument on multi-function calibrated base
2. Connect to the Android or IOS device app through Bluetooth.

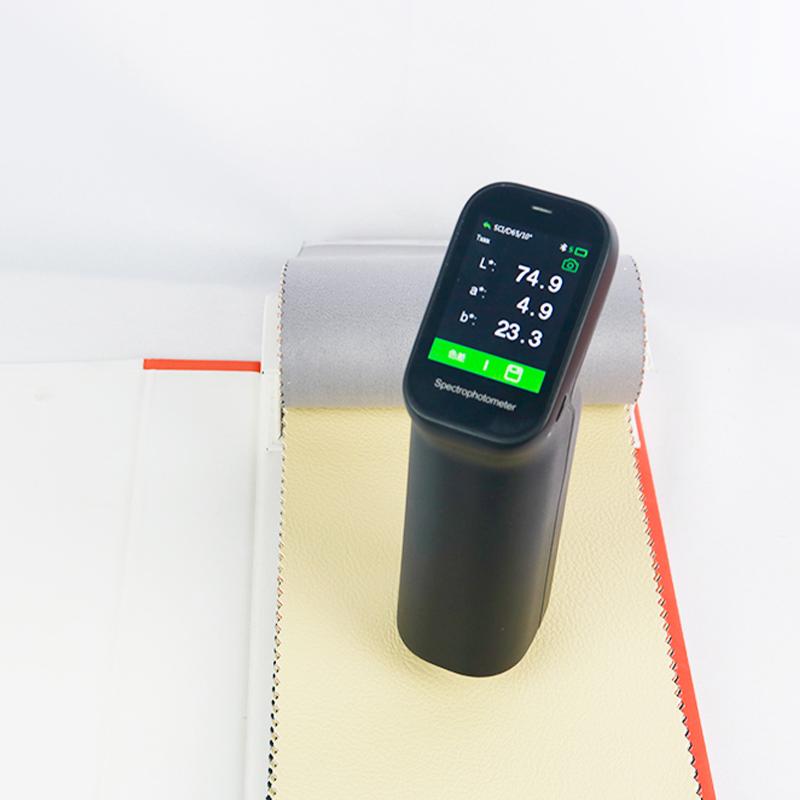

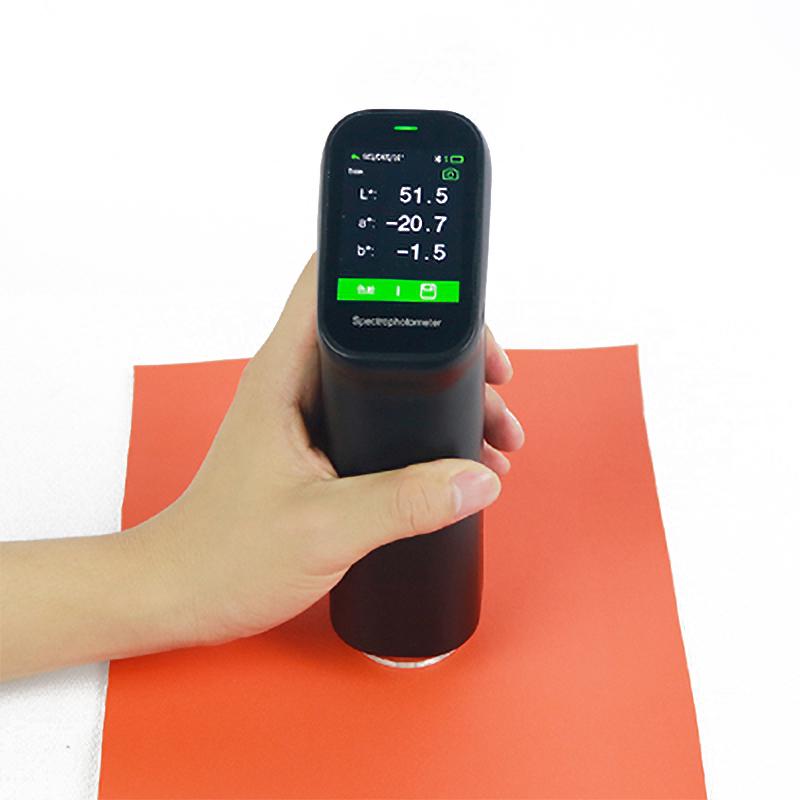

3. Color measurement with Touchscreen operation
4. View measurement results or manage color database in the app
Notice
• Make sure the calibrated base protects the white Calibration plate
Battery life is checked regularly, and a single charge can be continuously measured 8000 times
• Use the specified measurement diameter: MAV: φ 8mm/φ 11mm
Avoid using instruments in extreme environment conditions
