TQC LD9250 adhesion testing drill kit cutter, strong magnet fixed vertical cutting

Name: TQC LD9250 adhesion testing drill kit cutter, strong magnet fixed vertical cutting
Brand: TQC sheen
SKU: NB032295
Price: 1469.0 USD
Availability: InStock

$ 1469.00Ex works

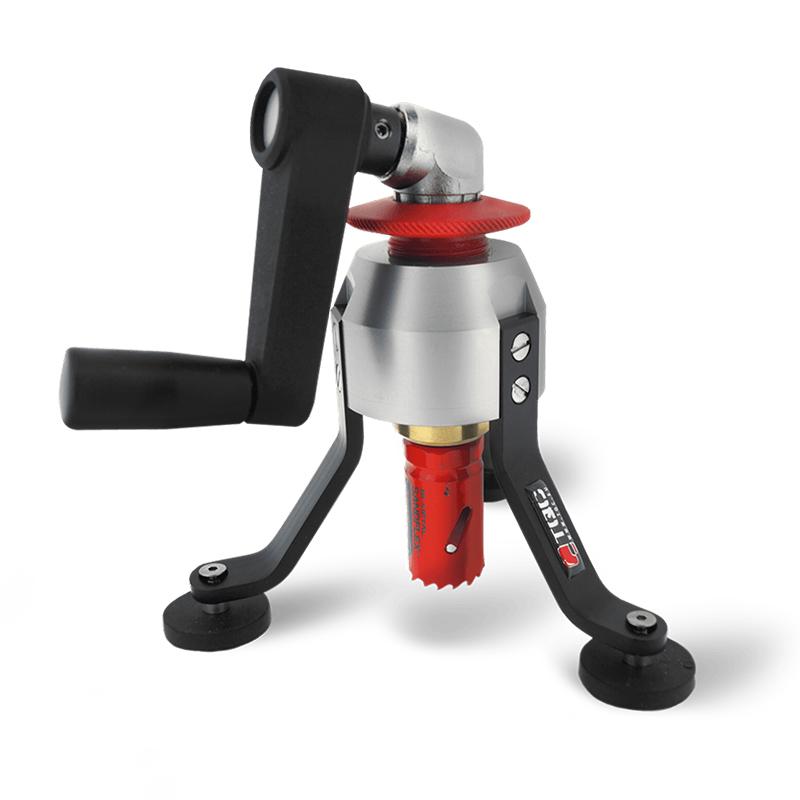

Using three strong magnets to ensure stable positioning, the vertical circular drill bit achieves 90-degree accurate cutting through the angle swirl/spin mechanism, the kit diaMeter is 20mm, the height is 15cm, and the aluminum material is light and durable.

Model

LD9250

Get Quote

Category : Pull-Off Adhesion Tester

Brand : TQC sheen

SKU : NB032295

Service :The delivery and service By NBCLab.Com

Overview

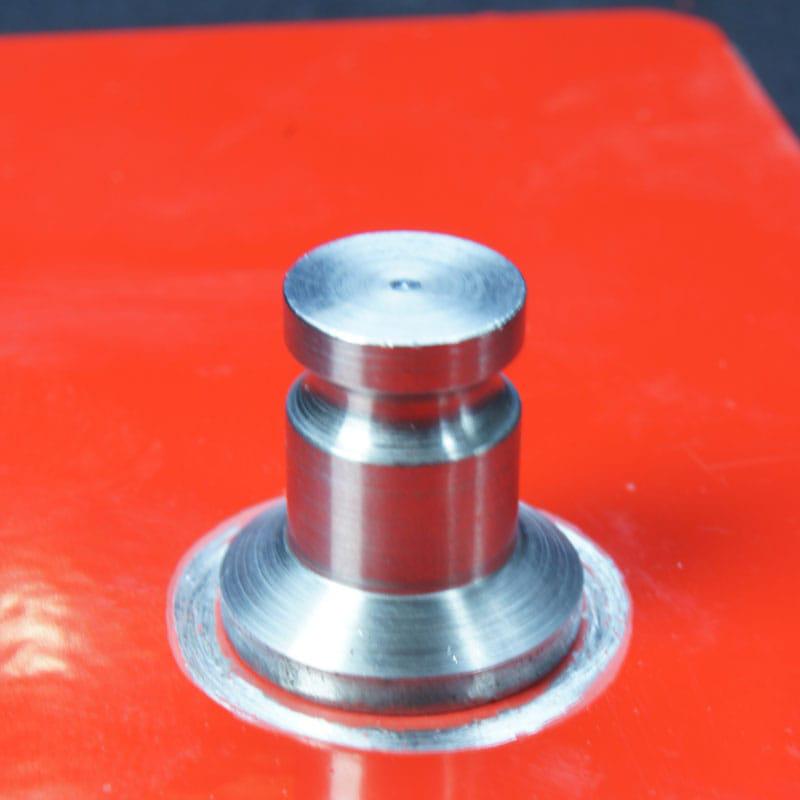

The TQC sheen LD9250 adhesion testing drill is a tool used to remove excess glue and cut through coatings around the kit in preparation for kit adhesion testing. Its three strong magnets ensure a fixed positioning, allowing the drill to remove coatings without applying force to the kit, simplifying the arduous task of manually removing glue and improving test accuracy.

Features

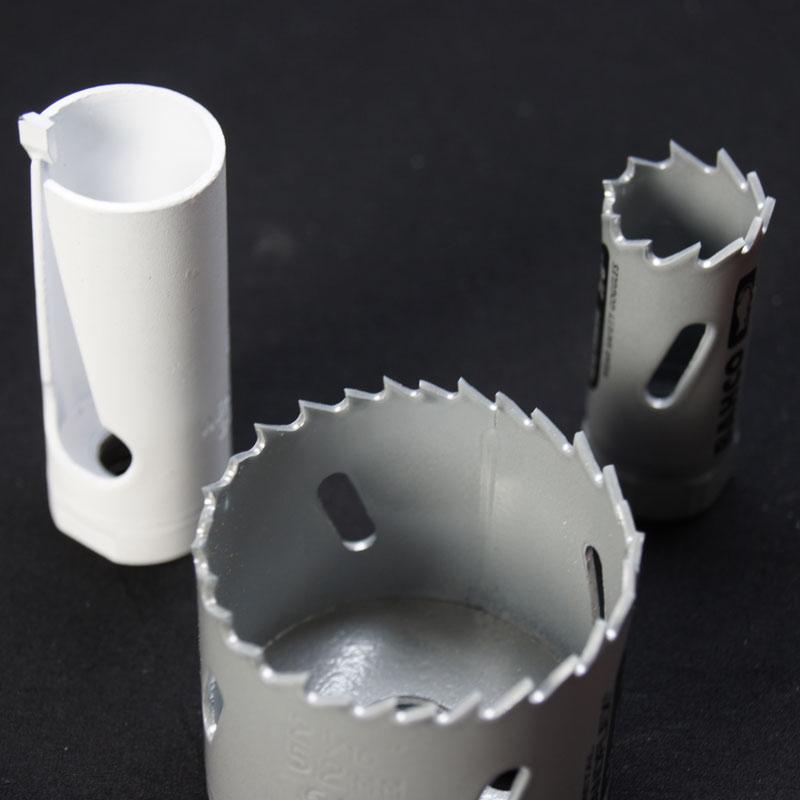

Three powerful magnets hold the TQC Dolly rig in place 2. Vertically placed circular drill bits cut the kit off the substrate by means of an angled swirl/spin mechanism 3. TQC kit cutters accurately cut the angle to 90 degrees, thus improving accuracy

Principle

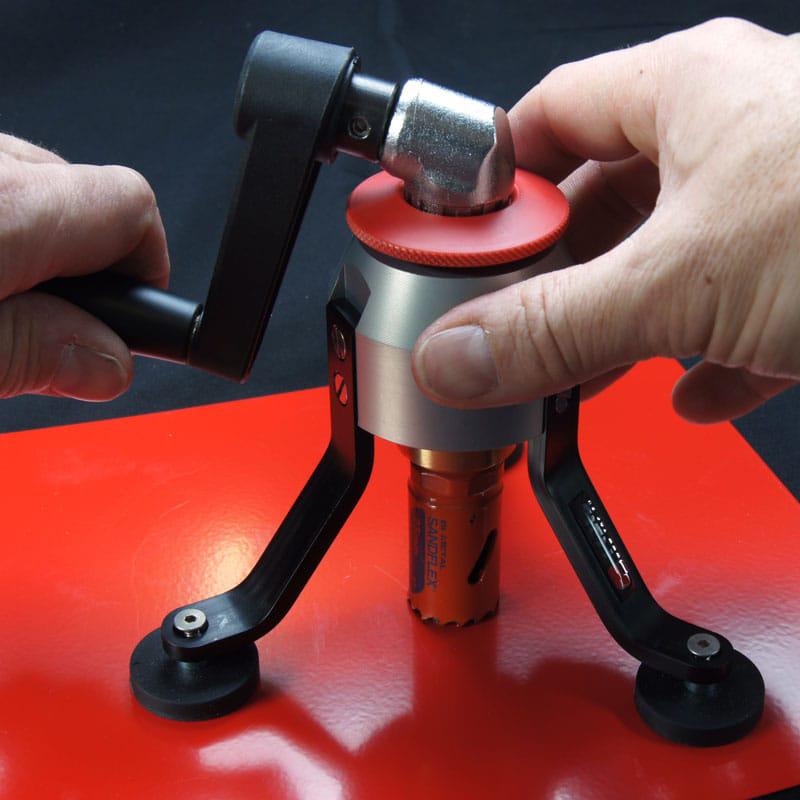

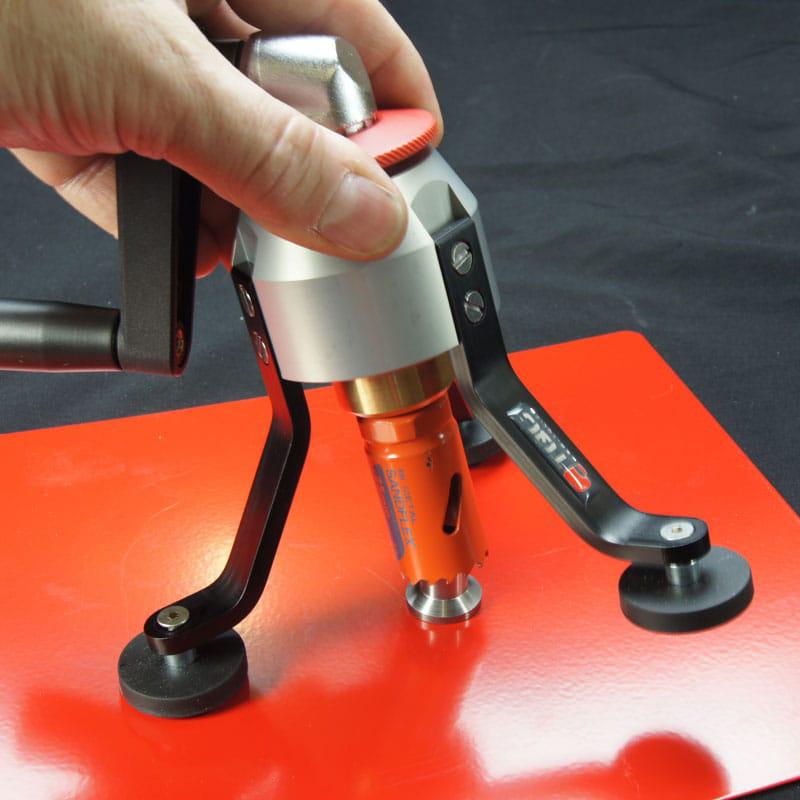

The tool is fixed and positioned by three powerful magnets to ensure vertical downward movement of the drill bit, using a circular drill bit and an angled swirl/spin mechanism to cut the coating around the kit for 90-degree precision cutting, thus improving the accuracy of disbonding adhesion testing.

Standards

ASTM D4541

Adapt kit Size
20mm
height
15cm
foot diameter
About 16cm with magnet.
material
aluminum
