TQC sheen TB5000 coating abrasion resistance testing

Name: TQC sheen TB5000 coating abrasion resistance testing
Brand: TQC sheen
SKU: NB032314
Price: 101065.0 USD
Availability: PreOrder

$ 101065.00Ex works

Adopt reciprocating friction method, Friction Frequency 0~ 2.5Hz, Test Travel 12.7~ 50.8mm, can simulate coating abrasion during transportation, support continuous test 0~ 24 hours.

Model

Get Quote

Category : Abrasion Tester

Brand : TQC sheen

SKU : NB032314

Service :The delivery and service By NBCLab.Com

Overview

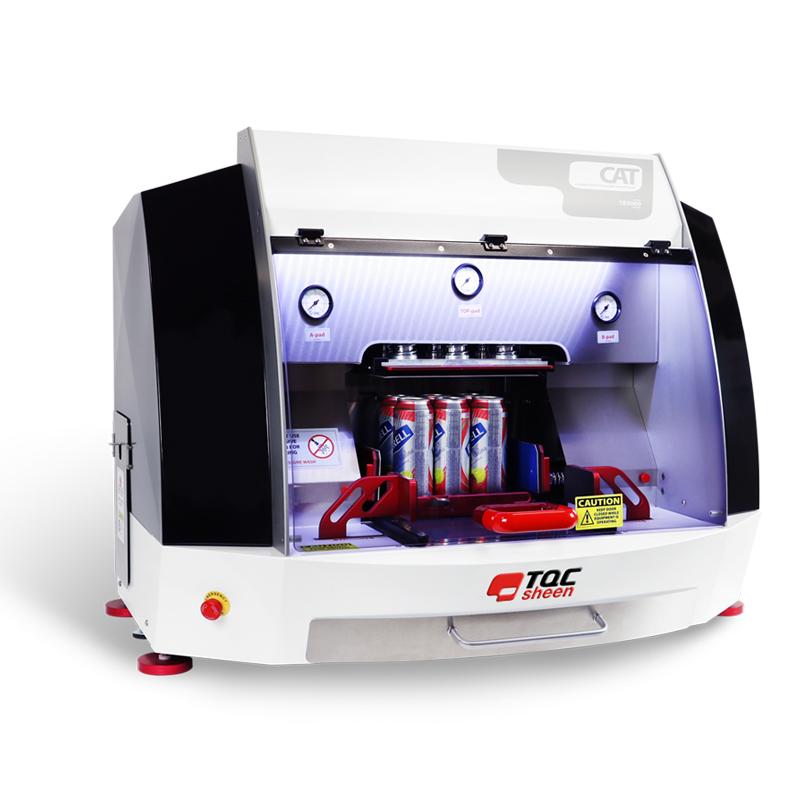

The TQC sheen TB5000 abrasion tester is a general purpose testing device used to test the coating Abrasion Resistance on beverage cans or flat materials. Its reciprocating motion simulates the abrasion of coatings equivalent to the Gavarti Associates "GV-CAT" system during field transportation and is widely used in coating testing laboratories for quality control.

Features

1. Test the Abrasion Resistance of Paint 2. Reciprocating movement of beverage cans 3. Simulate on-site transportation damage 4. Menu operation

Principle

The equipment performs wear resistance testing on coatings in the form of line contact by reciprocating friction to simulate abrasion during on-site transportation and ensure that the coating mass meets the requirements.

Standards

IEC 61326-1, EMC, IEC 61340-5-1, ESD, IEC 61010-1, Safety Specifications for Electronic Equipment, Directive 2011/65? EU, RoHS2

Steps

1. Set Friction Frequency (0~ 2.5Hz) and Test Travel (12.7~ 50.8mm) 2. Adjust the can diameter (53~ 84mm), height (88~ 205mm) and size (150~ 1000ml) 3. Set the top pressure (0~ 6 bar) and side pressure (0~ 6 bar). 4. Set the continuous test duration (0~ 24h) 5. Start the device for testing

Notice

• Power supply voltage 230V, 50~ 60Hz • Air source pressure is maintained at 8bar +/- 20% • Temperature range 0~ 50 ℃ • Operating humidity 0~ 90% RH (non-condensing) • Noise level below 70dB • Power consumption does not exceed 265w

Friction method
reciprocating
Frictional contact form
line
Number of grinding heads
1
Friction Frequency
0~2.5Hz
Test Travel
12.7~50.8mm
Power supply Voltage
230V，50~60Hz
Machine Size
1050*790*760mm
Machine weight
125kg
Noise level
＜70dB
power consumption
265W
gas source
8bar±20%
operating temperature
0~50℃
Operating humidity
0~ 90% RH (non-condensing)
Can diameter Range
53~84mm
Tank height Range
88~205mm
Can Size
150~1000ml
top pressure
0~6bar
lateral pressure
0~6bar
continuous test duration
0~24h
