TQC sheen TB5005 coating abrasion resistance testing machine

Name: TQC sheen TB5005 coating abrasion resistance testing machine
Brand: TQC sheen
SKU: NB032315
Price: 101065.0 USD
Availability: PreOrder

$ 101065.00Ex works

Using reciprocating motion to simulate transportation abrasion, Friction Frequency 0~ 2.5Hz adjustable, Test Travel 12.7~ 50.8mm, support continuous test 0~ 24 hours, suitable for a variety of can sizes and pressure conditions.

Model

Get Quote

Category : Abrasion Tester

Brand : TQC sheen

SKU : NB032315

Service :The delivery and service By NBCLab.Com

Overview

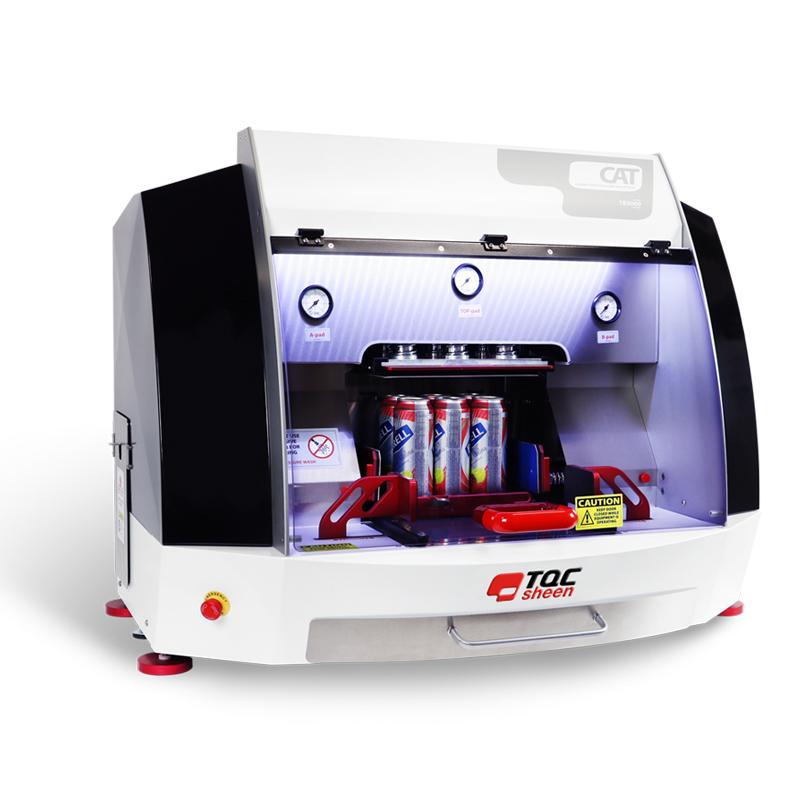

The TQC sheen TB5005 abrasion tester is a general purpose testing device for testing coating Abrasion Resistance on beverage cans or flat materials. Its reciprocating motion simulates the abrasion of coatings equivalent to the Gavarti Associates "GV-CAT" system during field transportation and is widely used in coating testing laboratories for quality control.

Features

1. Test the Abrasion Resistance of Paint 2. Reciprocating movement of beverage cans 3. Simulate on-site transportation damage 4. Menu operation

Principle

The wear resistance tester simulates the abrasion of coatings during transportation by reciprocating motion, and adopts the line contact friction method to adjust the friction Frequency and Test Travel, and performs abrasion resistance testing on coatings.

Standards

IEC 61326-1、EMC、IEC 61340-5-1、ESD、IEC 61010-1、Directive 2011/65?EU、RoHS2

Steps

1. Set Friction Frequency and Test Travel 2. Adjust the can diameter and height range 3. Set top and side pressure 4. Set the duration of continuous testing 5. Start the test and monitor the process

Friction method
reciprocating
Frictional contact form
line
Number of grinding heads
1
Friction Frequency
0~2.5 Hz
Test Travel
12.7~50.8mm
Power supply Voltage
115V，50~60 Hz
Machine Size
1050x790x760mm
Machine weight
125 kg
Noise level
＜70 dB
power consumption
265 w
gas source
8 bar±20%
operating temperature
0~50℃
Operating humidity
0~ 90% RH (non-condensing)
Can diameter Range
53~84mm
Tank height Range
88~205mm
Can Size
150~1000 ml
top pressure
0~6 bar
lateral pressure
0~6 bar
continuous test duration
0~24 h
