Overview

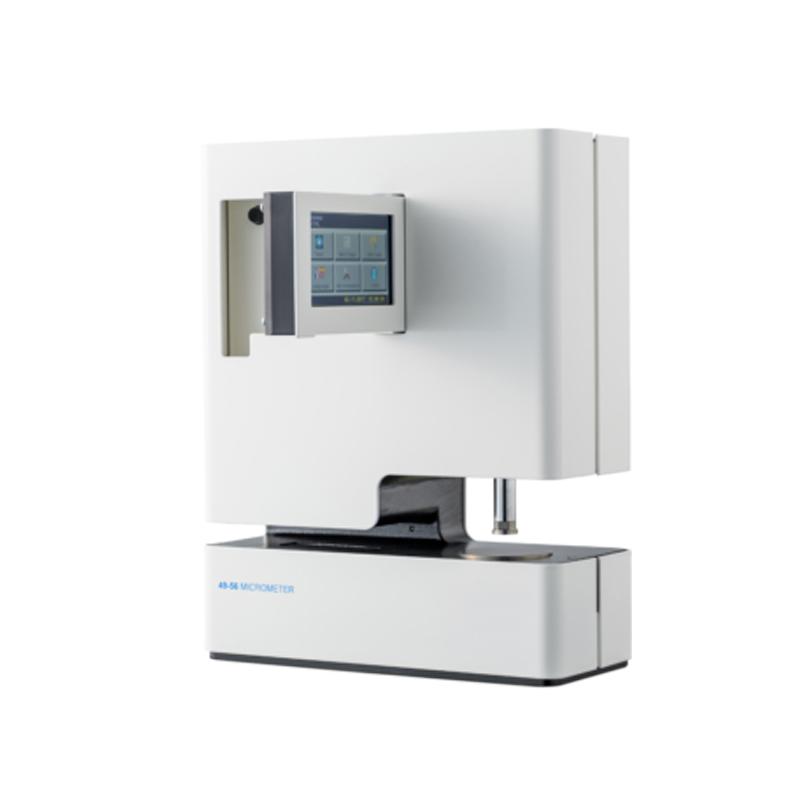

The TQC sheen LD3580 Digital Micrometer is a High Accuracy, High Resolution measurement device with modern Appearance design and robust mechanical construction, equipped with improved electronics such as digital linear encoders. Measurement range 0-10mm (0-10000μm, 0-394mil), designed for sheet thickness measurement, configurable to meet international standards such as ISO, ASTM, EDANA, etc., suitable for paper, corrugated paper, plastic film, tissue paper, non-woven fabric, Spinning & weaving products and other sheet substrates.
Features
1. Easy to use
2. Small Probe Design
3. Low foot pressure function
4. Support multiple units of mm, μm and mil
5. Optional paper dispenser
6. Compatible with GraphMaster © software for a variety of thickness testing applications
Principle
High Accuracy and resolution are ensured by modern electronic technology with accurate measurements via a digital linear encoder. Thickness values are automatically calculated and displayed by applying the appropriate pressure to the sheet during measurement via Probe.
Applications
Paper thickness, corrugated paper, plastic, plastic film, tissue paper, non-woven fabrics, Spinning & weaving products, sheet substrates
Standards
ASTM D374、ASTM D1777、ASTM D5729、ASTM D6988、ISO 534、ISO 3034、ISO 4593:1993、ISO 5084、ISO 9073-2、ISO 12625-3、APPITA 1301.46、TAPPI T-411、EDANA 30.4、PAPTAC D.4、DIN 53370、BS 2782-6、WSP 120.1、WSP 120.6
Steps
1. Connect the power supply and turn on the device.
2. Select the desired Measurement unit (mm, μm or mil)
3. Place the test sheet in the measurement area
4. Start the measurement program
5. Read and record measurement results
6. Optional connection to computer software for data management
Notice
• Power supply voltage within 90-230V range
• Confirm equipment calibrated before measurement
• Avoid putting too much pressure on Probes
• Keep the measurement area clean and free of debris
• Turn off the power in time after use
• Regular equipment maintenance and calibrating
