Overview

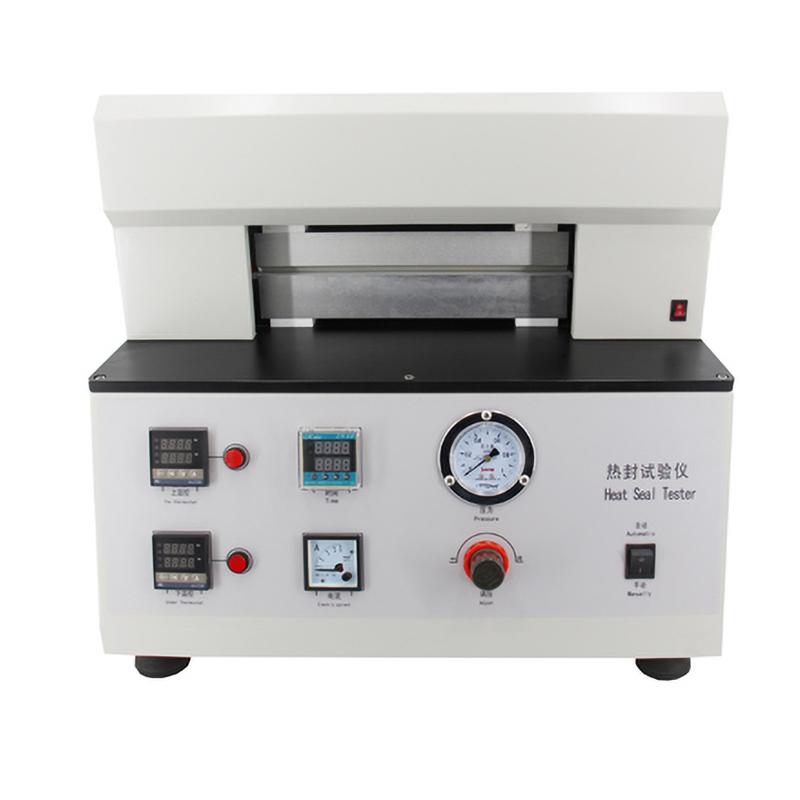

The WHS-03 heat sealing tester is an instrument required by the laboratories of food companies, pharmaceutical companies, daily chemical products companies, Encasement and raw material production enterprises. Its Operating Conditions simulate the three elements of pressure, temperature and time in the Encasement process of the Encasement production line. Through this instrument, the rapid assessment of materials can be realized. After passing the assessment, it can be used for production online. Another use is to conduct heat sealing tests on soft Encasement materials at the set temperature, pressure and time, so as to conveniently and quickly find out the appropriate heat sealing process parameters of materials, so as to meet the requirements of Encasement and Encasement material production enterprises for suitable heat sealing parameters of materials.
Features
1. Control system digitalization display, fully automated equipment
2. Digital P.I.D. temperature control, high temperature control accuracy
3. Selected heat sealing knife materials and customized heating tubes, uniform heat sealing surface temperature
4. Double cylinder structure, internal pressure equilibrating mechanism
5. High accuracy of pneumatic control components, a full set of familiar brands
6. Anti-scalding design and leakage protection design, safer operation
7. The heating element is carefully designed, with uniform heat dissipation and long service life
8. Automatic and Manual Operating Modes for Effective Operation
9. Specially optimized operation panel according to ergonomic principles, easy to operate
Principle
Operating Conditions Simulate the three elements of pressure, temperature and time in the Encasement process of the Encasement production line. Through this instrument, the material can be quickly evaluated. After passing the evaluation, it can be used in the production online. Another purpose is to heat seal the soft Encasement material at the set temperature, pressure and time. Test, so as to easily and quickly find out the appropriate heat sealing process parameters of the material.
Applications
Food Enterprises, Pharmaceutical Enterprises, Daily Chemical Products Enterprises, Encasement and Raw Material Production Enterprises
Standards
QB/T 2358（ZBY 28004）、YBB 00122003-2015、ASTM F2029
Steps
1. Connect the power and air source
2. Set heat seal temperature, pressure and time parameters
3. Select Automatic or Manual Operating Mode
4. Place the material to be tested
5. Start the heat seal test
6. Observe and record results
Notice
- Power supply voltage AC 220V 50Hz
- The air source pressure needs to be brought by the user
- Pay attention to the anti-scalding design during operation
- Regularly check the leakage protection function
- Use in a standard test environment
- Follow equipment safety operating procedures
