Overview

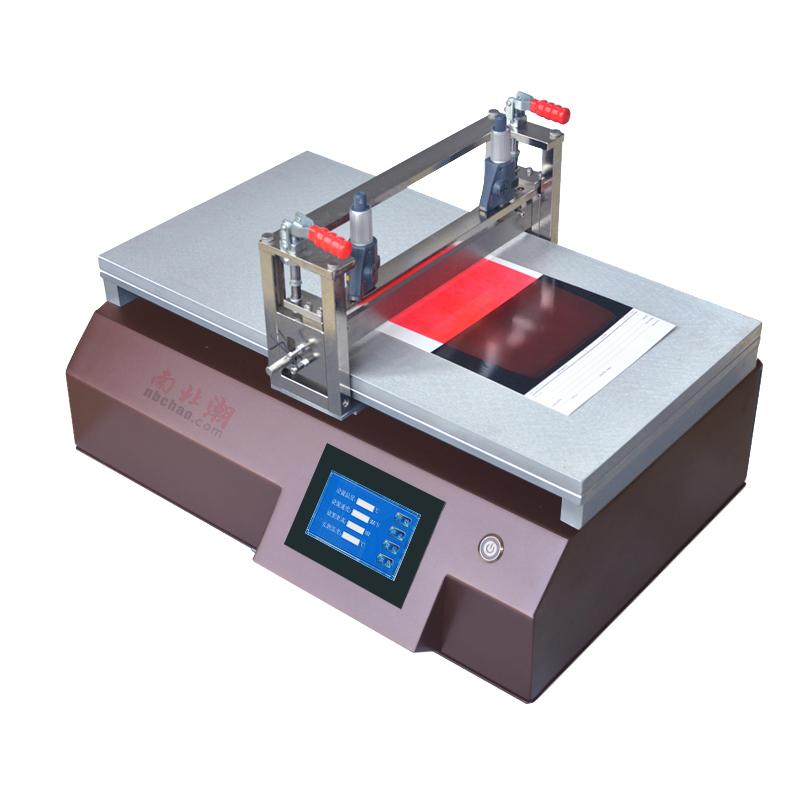

TBJ-X3 Automatic Film Applicator is a small Spreader testing equipment in China. It adopts imported accessories and has a good price. It is favored by multinational R & D institutions, universities and scientific research institutions at home and abroad. The equipment ensures the uniformity and smoothness of Spreader coating by controlling speed and stable pressure, solves the problem of artificial film inconsistency, and significantly improves film reproducibility. It is suitable for Spreader accurate wet-film on different substrates.
Features
1. Imported accessories, cheap and Reliability.
2. Various coating methods, including bar and integrated drawdown blade, adapt to different needs.
3. High Accuracy Spreader Control, Blade Coating accuracy +/- 0.003mm, meyer rod coating accuracy +/- 0.001mm.
4. Wide range Spreader thickness adjustable, Blade Coating thickness 0.001~ 10mm, bar Spreader thickness 1~ 571.5μm.
5. Infinitely variable speed control coating speed, range 5~ 200mm/s, support customization.
6. Vacuum chuck Substrate clamping method to ensure Spreader Stability.
7. Touchscreen control, easy and intuitive operation.
8. Optional heating function, Temperature range RT +~ 200 ℃, uniformity +/- 3 ℃.
9. Optional accessories and customization functions, such as automatic lame plating, UV curing, etc., expand application flexibility.
Principle
Automatic Film Applicator achieves accurate Spreader by controlling the speed of the Spreader and the stable pressure applied to the film applicator. The device uses Vacuum chuck to fix the substrate to ensure the Stability of the substrate during the Spreader process; the coating speed is adjusted by the stepless transmission system, combined with High Accuracy drawdown blade or bar, to ensure the uniformity and smoothness of the Spreader coating, thereby improving the reproducibility of the film.
Applications
Multinational enterprise R & D institutions, domestic and foreign universities, scientific research institutions, laboratories Spreader testing, material coating research
Steps
1. Prepare the substrate and place it in the Vacuum chuck area.
2. Set Spreader parameters through Touchscreen, including coating speed, Spreader thickness and Travel.
3. Select the coating method (bar or drawdown blade) and install the corresponding accessories.
4. Start the device and perform the Spreader process automatically.
5. After the Spreader is completed, remove the sample for inspection.
Notice
Make sure the power supply of the device is 220V 50Hz before use to avoid voltage mismatch.
- Keep the substrate fixed during the Spreader process to prevent movement from affecting the Spreader effect.
- According to the uneven thickness of the substrate, the silicone pad and weight can be adjusted.
- When using the heating function, pay attention to the Temperature Uniformity control within +/- 3 ° C.
- Spreader accessories such as drawdown blades and bars are cleaned regularly to maintain accuracy.
- Customized functions such as automatic lame plating or UV curing require instructions.
