Overview

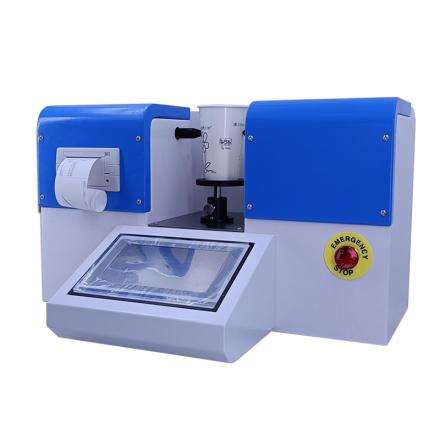

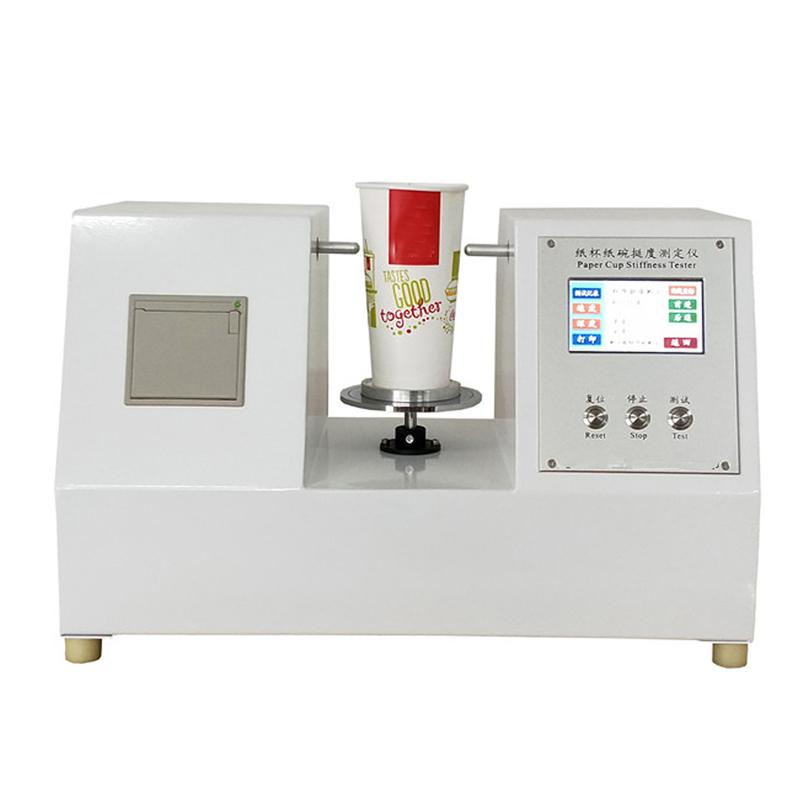

ZBT-10 paper cup body Stiffness meter is a special testing instrument under the CHENCHI brand, which is mainly used for the measurement of the stiffness of the paper cup body. The instrument is designed according to the principle of mechanical Stiffness meter in QB/T2294-1997 "Paper Cup" and other standards. It adopts motor-driven contact movement, encoder measurement stroke, force Sensor measurement resistance, and is controlled, data processing and report output by computer system.
Features
1. High Accuracy: High Accuracy Force Sensor and chip processing system imported from the United States, accurate measurement indication.
2. Good Repeatability: The test speed is constant, the probe is driven by a precision screw, and the result is good Repeatability; the test speed and moving distance are adjustable, and the applicability is wide.
3. Easy to use: touch screen Chinese display, friendly operation interface; fully automatic test, with data statistical processing function, can be connected to micro printer or computer output results and pressure Linear dispersion.
Principle
The instrument drives the contact forward or backward through the motor, and the movement stroke of the contact is accurately measured by the encoder. When the contact touches and squeezes the cup body, the resistance generated by the cup body is measured in real time by the force Sensor. The control, data collection and measurement calculation of the whole test process are completed by the built-in computer system, and the final result is displayed through the monitor and the test report is output by the printer.
Applications
Paper cup stiffness testing, paper cup and related scientific research, Quality control department
Standards
QB/T 2294、JJG157、GB/T27590-2011
Steps
1. Prepare the instrument and place the paper cup to be tested.
2. Set test parameters (e.g. speed, moving distance) through the touchscreen.
3. Start the test, and the instrument automatically drives the probe to complete the extrusion action.
4. The system automatically collects and processes data.
5. View the test results on the monitor, and output the report through the printer or connect to the computer to save the data and Linear dispersion.
Notice
Please ensure that the instrument is in a level and stable state before use.
According to test standards and requirements, set parameters such as test speed and probe movement distance correctly.
Periodically calibrate the instrument to ensure the accuracy of measurement results.
* Avoid collision between the probe and hard objects during operation to avoid damage to the Sensor.
When connecting your computer, make sure the software is compatible and the driver is installed correctly.
When the instrument is not in use, it should be kept clean and placed in a drying environment.
